Garagistic - F8X Billet Adjustable End Links - 31302284644, 31302284643
F8X Billet Adjustable End Links - 31302284644, 31302284643
Description

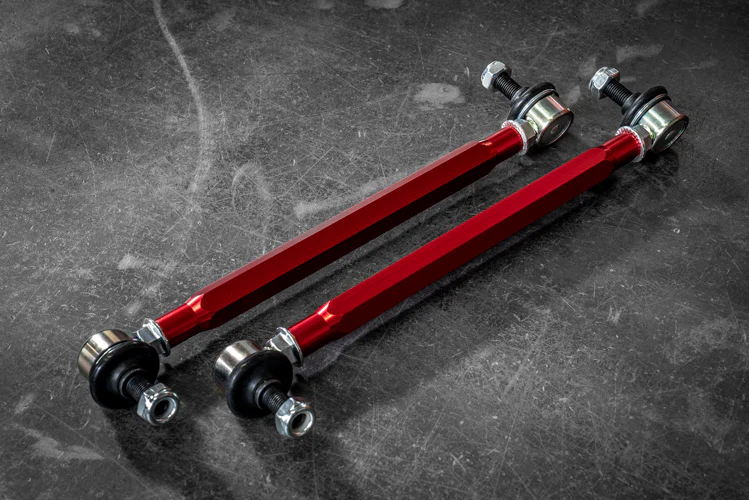

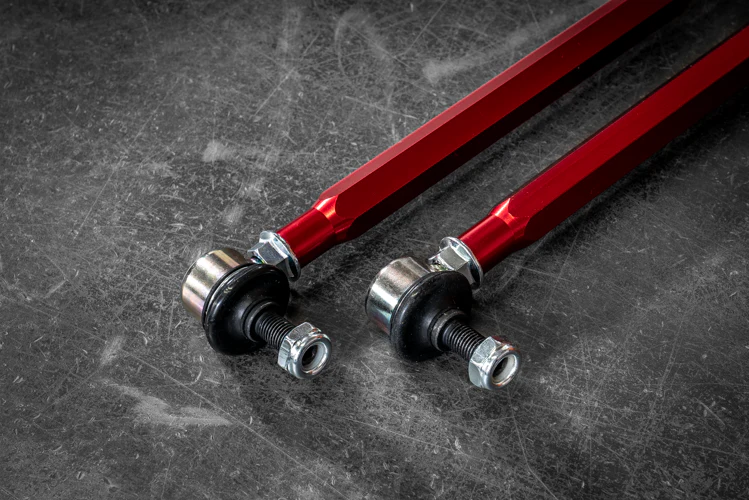

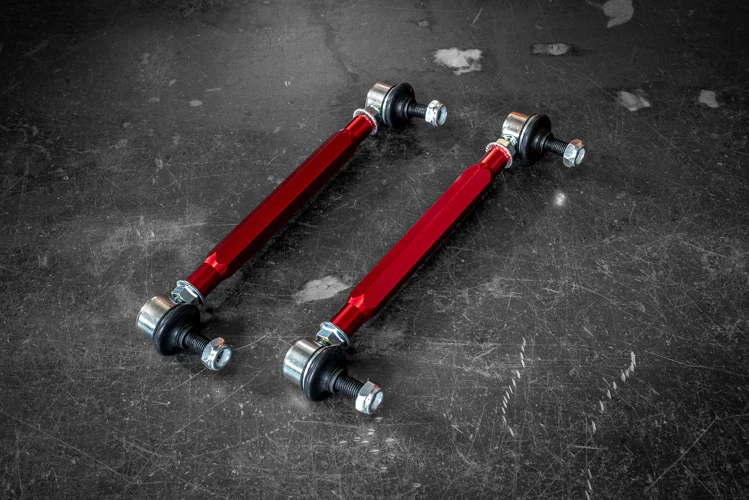

These are the ultimate adjustable end links for your F80, F82, F83. Designed to handle the abuse of the track while being compliant for the street, we've added some new features to increase durability and enhance user experience.
All end links are quality made in the USA and are Teflon lined to ensure lifetime lubrication and eliminate looseness and chatter caused by age. Both links have LH/RH studded rod ends they allow length adjustments and high angularity for correct proper anti-roll bar static flat. This makes the sway bar parallel to the ground. Comes with everything needed for installation. We highly recommend using blue Loc-tite on all threaded connections.
WILL MY BMW NEED ADJUSTABLE FRONT SWAY BAR LINKS?
When you lower your car, the sway bar geometry changes making the bar no longer as effective because of the angle it's at, adjustable end links will allow you to bring the sway bar angle back to its effective position and get rid of any unnecessary pre-load.
Features

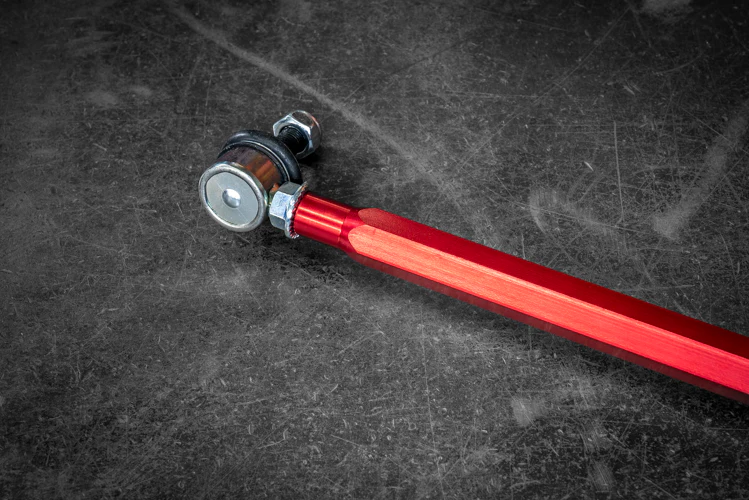

- Hex design of the middle rod allows for easy on-car adjustments
- Greater adjustment range allows you to dial in the perfect geometry of your suspension

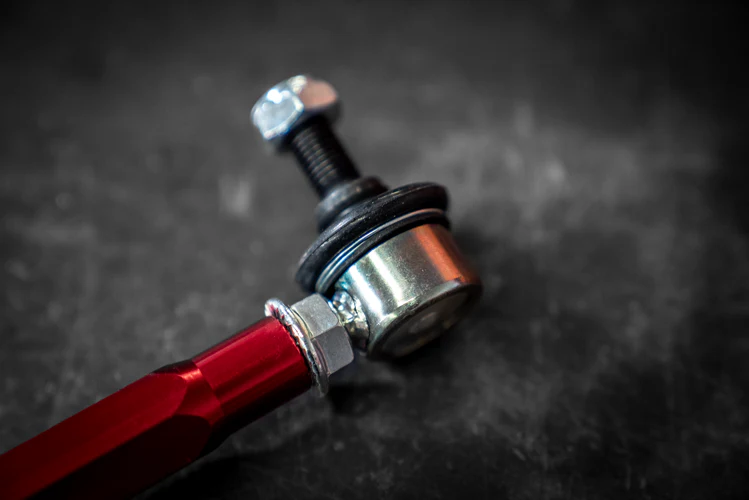

- Sealed ball joints on both ends to keep debris out
Adjustment Range
We have two versions available for the F8X chassis. The first option is the OEM version, which is suitable for cars at the stock ride height and serves as a direct replacement for the factory end links. If your car is lowered, we also offer "Lowered" end links that are shortened to accommodate the ride height.
To ensure proper fitment, we strongly advise measuring the distance between the end link tab on your struts and the ends of your sway bar. This measurement will help you determine the appropriate version of end links for your specific setup.
- OEM Height: 10.8" to 14.2"
- Lowered: 8.8" to 12.2"
Compatibility
- F80 M3
- F82 M4
- F83 M4
- Does not fit F87 M2
Note: Before purchase, we recommend measuring from the upper to lower end link mounting tab to ensure proper fitment. End link size can depend on ride height and suspension components.
How to Adjust your End Links to Set Pre-Load
- Set your car to the desired ride height
- Position your sway bar to be parallel to the ground
- Hook up your end links
- With the end links installed, use the middle hex rod to make fine adjustments
*To get the perfect pre-load, have a friend do this process while you sit in the driver's seat, or use sandbags or other weights to add your weight in the driver's seat while you adjust the end links
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Garagistic - F8X Billet Adjustable End Links - 31302284644, 31302284643
Garagistic - F8X Billet Adjustable End Links - 31302284644, 31302284643
F8X Billet Adjustable End Links - 31302284644, 31302284643
Description
These are the ultimate adjustable end links for your F80, F82, F83. Designed to handle the abuse of the track while being compliant for the street, we've added some new features to increase durability and enhance user experience.
All end links are quality made in the USA and are Teflon lined to ensure lifetime lubrication and eliminate looseness and chatter caused by age. Both links have LH/RH studded rod ends they allow length adjustments and high angularity for correct proper anti-roll bar static flat. This makes the sway bar parallel to the ground. Comes with everything needed for installation. We highly recommend using blue Loc-tite on all threaded connections.
WILL MY BMW NEED ADJUSTABLE FRONT SWAY BAR LINKS?
When you lower your car, the sway bar geometry changes making the bar no longer as effective because of the angle it's at, adjustable end links will allow you to bring the sway bar angle back to its effective position and get rid of any unnecessary pre-load.
Features
- Hex design of the middle rod allows for easy on-car adjustments
- Greater adjustment range allows you to dial in the perfect geometry of your suspension
- Sealed ball joints on both ends to keep debris out
Adjustment Range
We have two versions available for the F8X chassis. The first option is the OEM version, which is suitable for cars at the stock ride height and serves as a direct replacement for the factory end links. If your car is lowered, we also offer "Lowered" end links that are shortened to accommodate the ride height.
To ensure proper fitment, we strongly advise measuring the distance between the end link tab on your struts and the ends of your sway bar. This measurement will help you determine the appropriate version of end links for your specific setup.
- OEM Height: 10.8" to 14.2"
- Lowered: 8.8" to 12.2"
Compatibility
- F80 M3
- F82 M4
- F83 M4
- Does not fit F87 M2
Note: Before purchase, we recommend measuring from the upper to lower end link mounting tab to ensure proper fitment. End link size can depend on ride height and suspension components.
How to Adjust your End Links to Set Pre-Load
- Set your car to the desired ride height
- Position your sway bar to be parallel to the ground
- Hook up your end links
- With the end links installed, use the middle hex rod to make fine adjustments
*To get the perfect pre-load, have a friend do this process while you sit in the driver's seat, or use sandbags or other weights to add your weight in the driver's seat while you adjust the end links
