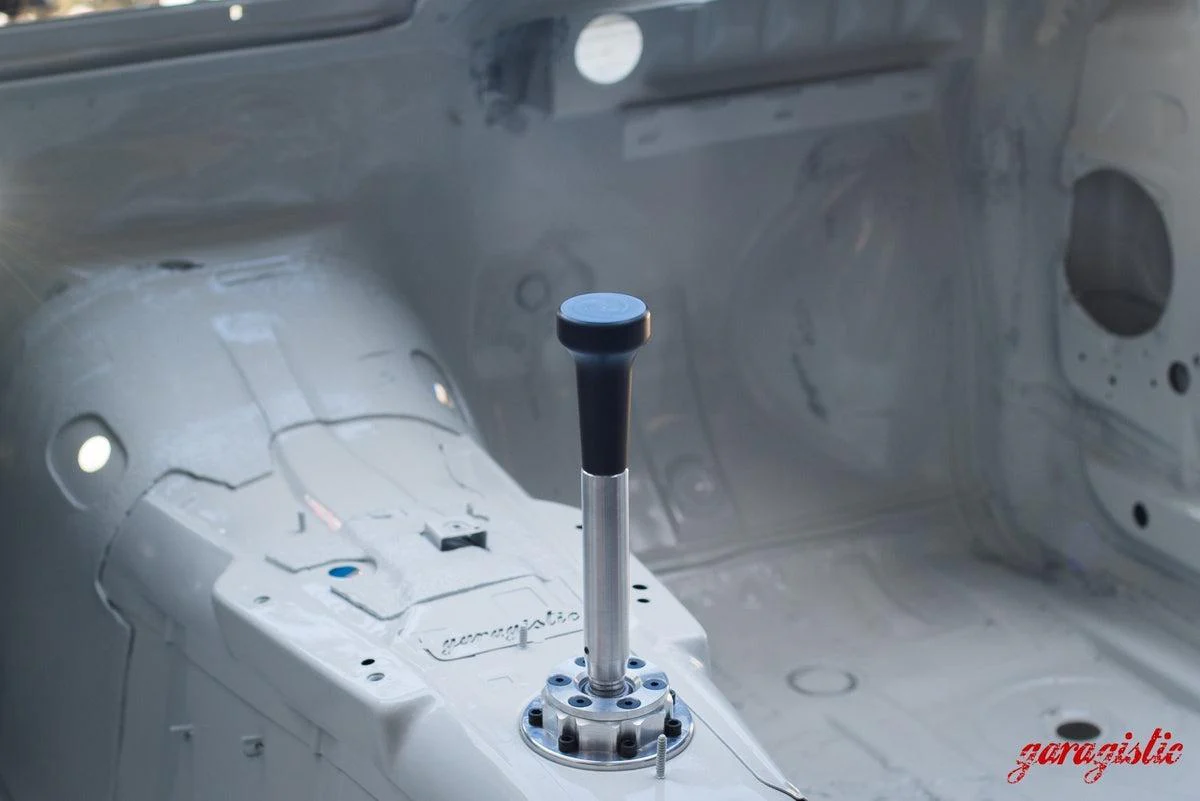

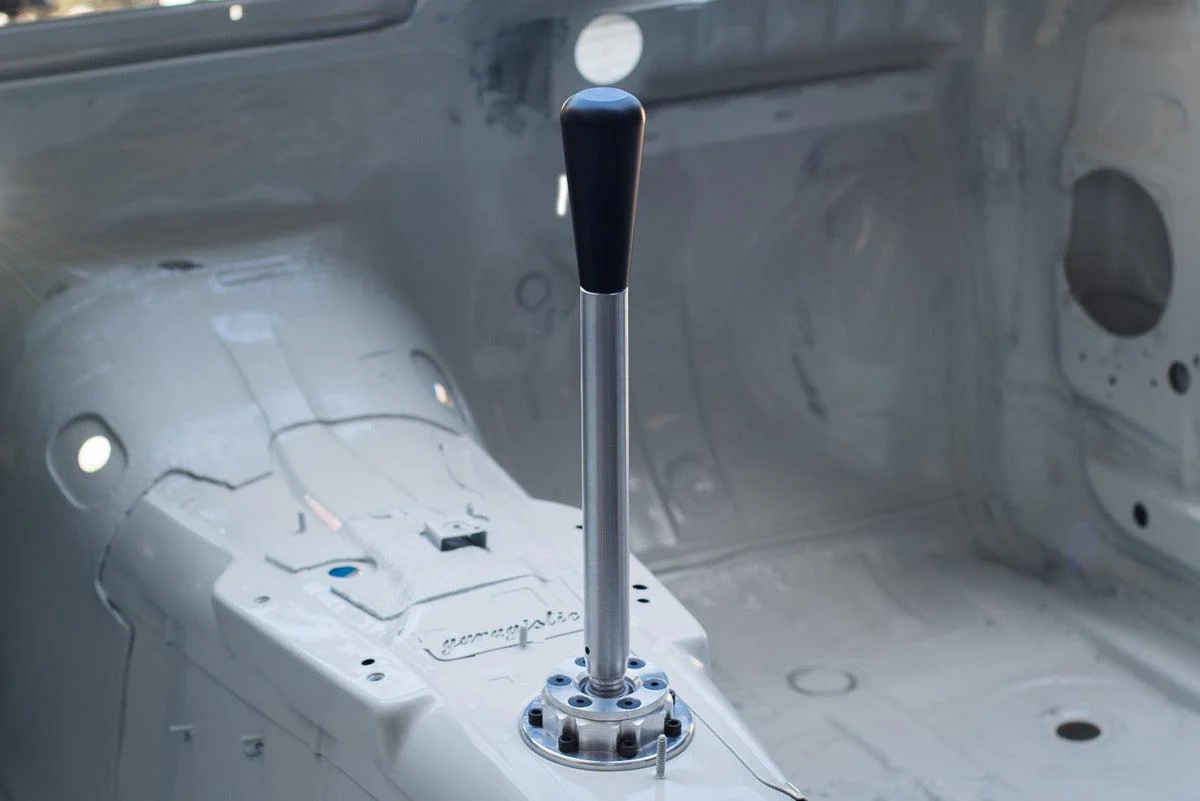

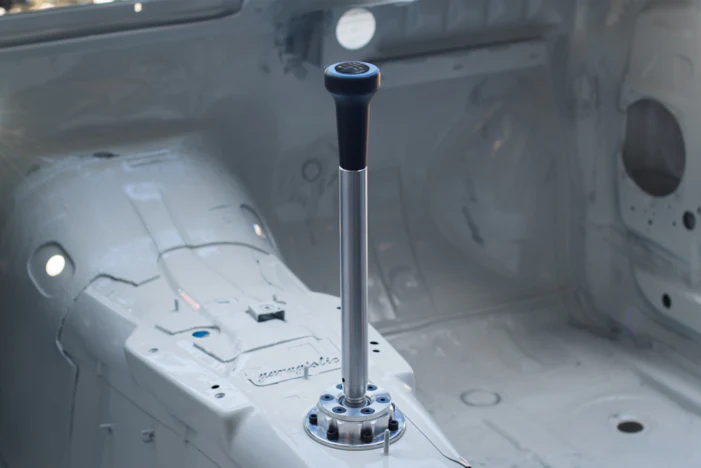

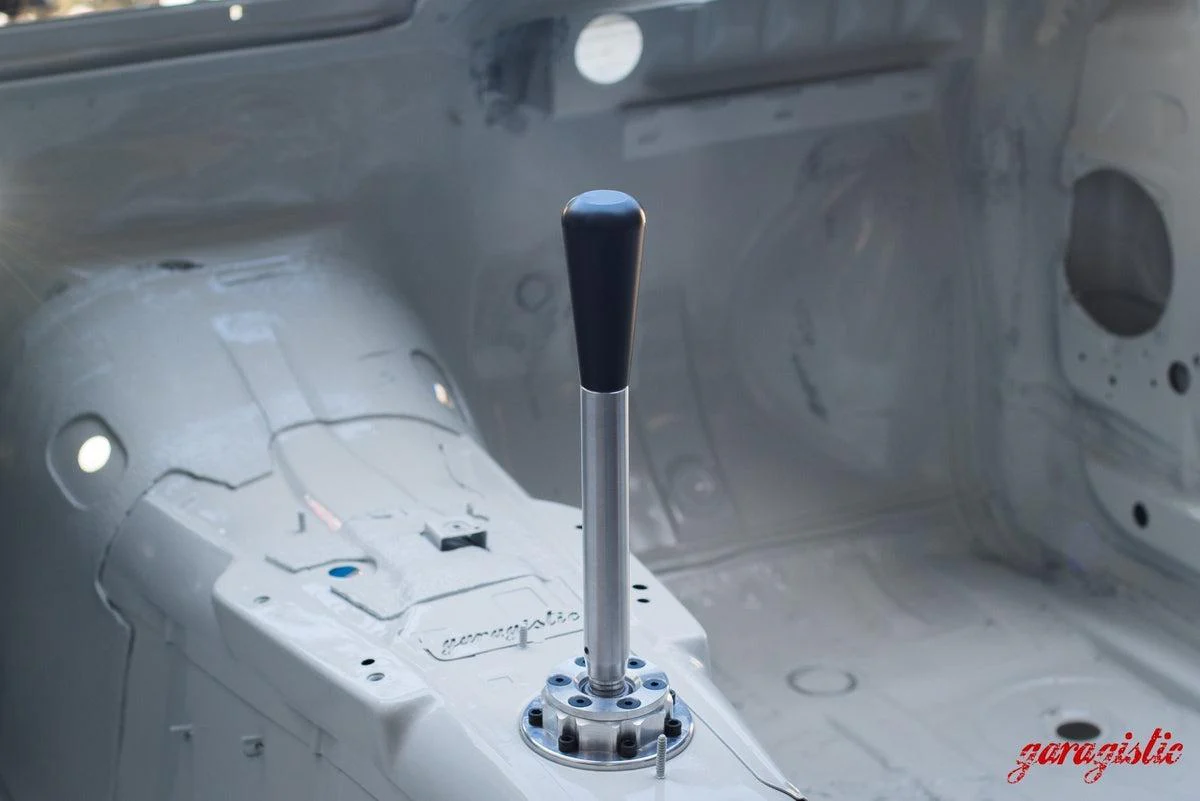

GARAGISTIC SOLID CHASSIS MOUNTED SHORT SHIFTER
Description
Are you looking for the ultimate in precision shifting and feel? Want to eliminate all slop in the shifter for that tactile, mechanical feel and satisfying shift? Look no further than the Garagistic Solid Chassis Mounted Short Shifter! The Garagistic Solid Short Shifter requires no permanent modification to install and is the ultimate short shifter for your BMW! The shifting experience becomes tight, precise, and tactile, providing a definite feeling coming in and out of each gear. This aids in driver confidence and precision shifting, especially when in a stressful or race environment! The Garagistic Chassis Mounted Short Shifter is made from solid billet aluminum and is available with a variety of stalk lengths and shift knob options. Customize your shifter just to your taste with the Garagistic Chassis Solid Mounted Short Shifter!

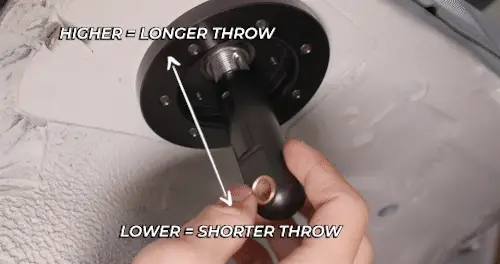

Keep in mind: This is the only adjustable shifter on the market! You are able to move the pivot on this shifter to your exact preference to adjust feel and throw!
This shifter must be run with poly or solid upgraded transmission bushings.
This shifter is highly recommended to be paired with a Garagistic DSSR to provide the most direct shifting experience possible.
Carbon Fiber rods are available. Sold separately and can be found here: Carbon Fiber Shifter rods.
Please note: Because this shifter is straight (not bent/curved like most BMW OEM shifters), some applications may require a custom-length DSSR. If you are unsure what length you will need, reach out to us at [email protected] and we will help you figure that out! We have over 80 configurations of DSSR's, so it is crucial to include the last 7 of your VIN for us to reference and assist us in determining which DSSR is appropriate for your application.
FEATURES AND SPECS
- Adjustable height and throw
- Solid billet aluminum construction
- Precision spherical bearing pivot point
- No permanent modifications are required for installation!
- Multiple shift stalk heights available (like OEM, Medium, Tall)
- Multiple shift knobs available (Delrin, Aluminum, Soft, Standard, Vintage, Tall)
- Available with OEM style slot rod for compatibility with BMW OEM shift knobs (select OEM height option)
- Shift knobs available with recess for BMW shift pattern emblem
- Anodized aluminum 5 speed shift emblem included with recessed shift knobs (4 speed, 6 speed, and G logo emblems sold separately)
Included Hardware
- 6 Flat Socket Bolts (top plate retaining bolts)
- 7 Thumb Alen Bolts (Bottom plate retainer bolts)
- 4 Small Set Screws (2 screws for shifter rod, 2 screws for lower rod)
Fitment
Will this shifter fit my car?
-
Fits: E30, E36, E46 models
- Not compatible with iX AWD MODELS
- Short option not recommended for E36 and up chassis
- Will fit on round transmission tunnel holes between 3 1/4" - 3 3/8" diameter.
- Fits most BMW chassis such as E30, E36, E46, Z3, E39, E34, and many more (some very early model cars will require some modification to the opening in order to properly install the shifter. Please check the opening size based on the dimensions provided above.)
- 1984 - 1985 E30 Models have a smaller diameter hole in the trans tunnel for the shifter. This will require you to remove enough material to increase the diameter of the hole in the trans tunnel with a Dremel for proper installation.
- Please Note: Some OEM BMW shifter rods have a very slight tilt; therefore, some shifters will also have a slight tilt once installed.
Which size rod should I get for my car?
- In general, the longer the rod, the longer the shift-throw will be and the less notchy it will feel, while a shorter rod produces a shorter shift-throw and a more notchy feel.
- It is important to note that due to the varying heights of center consoles in different chassis, certain size rods may be too small/large for you. For example, the E30 center console is shorter than the E36 center console, so a short height shifter rod will be too short in an E36.
Note on Inventory status
We currently have all components in stock to make these. However, These are very custom and have tons of configurations. In fact, there are nearly 676 different configurations possible. It's not possible to have every combo pre-made ready to go. Each one gets hand-assembled to each customer's specs. Shipping lead time on shifters is around 1 week from order to shipment. Please do not call/email within 30 seconds of placing the order to check status. These are worth the wait, we promise!
Due to high demand, in an effort to keep orders going out in as timely a manner as possible we can not take custom requests outside of our preconfigured options. This includes custom anodizing colors and combinations (example: bare assembly with anodized knob), custom shift patterns and emblems, and custom threading options.
Please leave Year and model in the notes on checkout!
Want to run a different shift knob with an M10x1.25 or M12x1.25 thread pitch? Then don't forget to purchase this adapter:
https://www.garagistic.com/products/bmw-shift-knob-adapter-oem-bmw-to-m10x1-25-or-m12x1-25
Emblem included with Emblem option
