CSF Motorsport Dual-Pass Competition Radiator (Radiator Only)
Design & Engineering
CSF has been heavily involved in motorsports for years supporting teams and enthusiasts in Time Attack, GTC, SRO, Drifting, along with Drag and Roll Racing. Many of CSF's "Drop-In" fit cooling systems are used in competition in addition to the Universal Systems. One thing that has been missing from the CSF catalog though was a large motorsport radiator; until now.
Key Features:
- Largest Motorsport Radiator on the market
- 100% TIG Welded Construction
- Massive 705mm x 448mm x 68mm Core
- CSF's Exclusive B-Tube Technology and 8mm super-efficient multi-louvered fins
- Dual Pass Core for maximum efficiency
- 20AN ORB Inlet/Outlet fittings for maximum flow
- 12AN ORB ports for sensor mounting and bleeding
- 8 (4 per tank) M8 x 1.25 Bosses Mounting Bosses
- Available as a full Cooling Module that includes a Shroud, 14" SPAL Brushless Fans, and Jumper Harnesses (CSF #8374)
Radiator Core

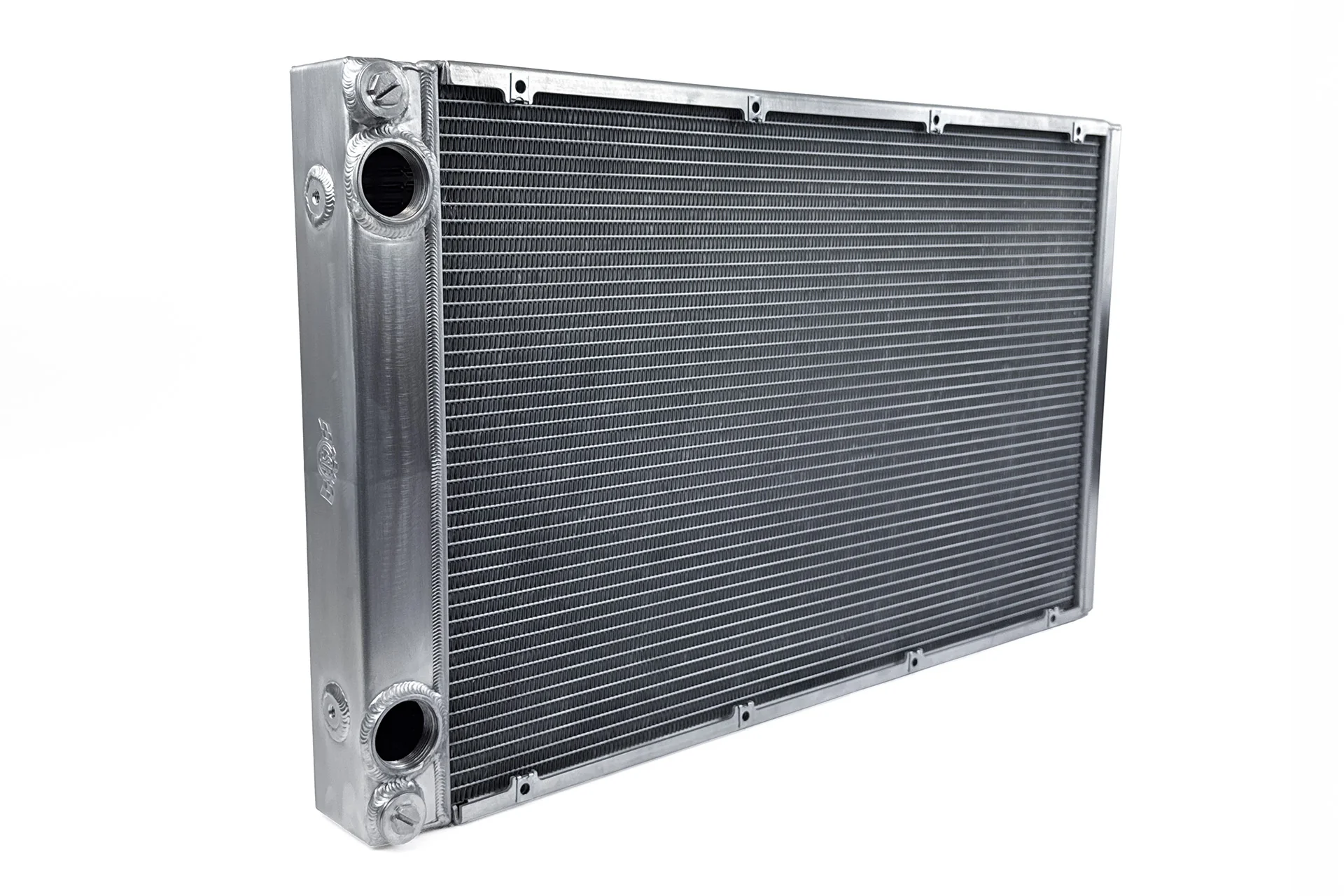

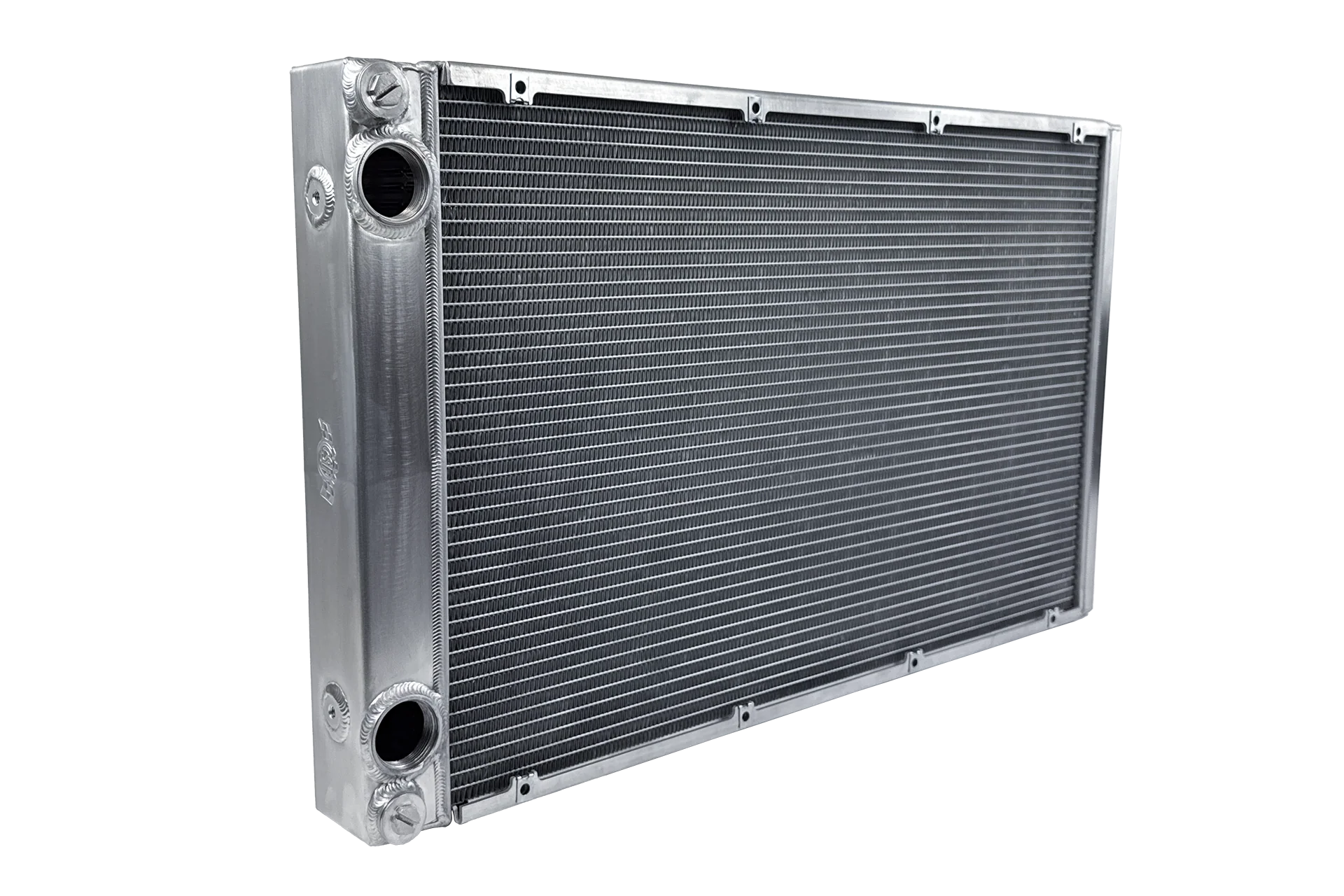

The new Motorsport Dual-Pass Radiator is the largest and most efficient cooler CSF manufactures. It features a mammoth 705mm x 448mm (27x75" x 17.5") core that is 68mm thick. The 68mm core is 24% thicker than the nearest competitor which uses a 55mm core. It offers more heat transfer and thermal capacity than any other radiator on the market.
CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. The 44 rows of 8mm super-efficient multi-louvered fins maximize airflow through the core for the best possible performance.
Dual Pass Design
A dual pass configuration was chosen for a number of reasons. The design has several benefits but mainly boils down to cooling performance and ideal configuration.
Performance
From the performance perspective; a dual pass core offers a great balance between optimal cooling and back pressure. By extending the coolant flow path, coolant stays in the radiator longer allowing for additional heat dissipation. While a triple pass may offer even more benefits in this regard, it also creates more resistance and in turn pressure drop. Depending on your setup, this might not be an ideal design. The dual pass design offers a nice balance between ultimate cooling performance and coolant pressure regulation.
Configuration

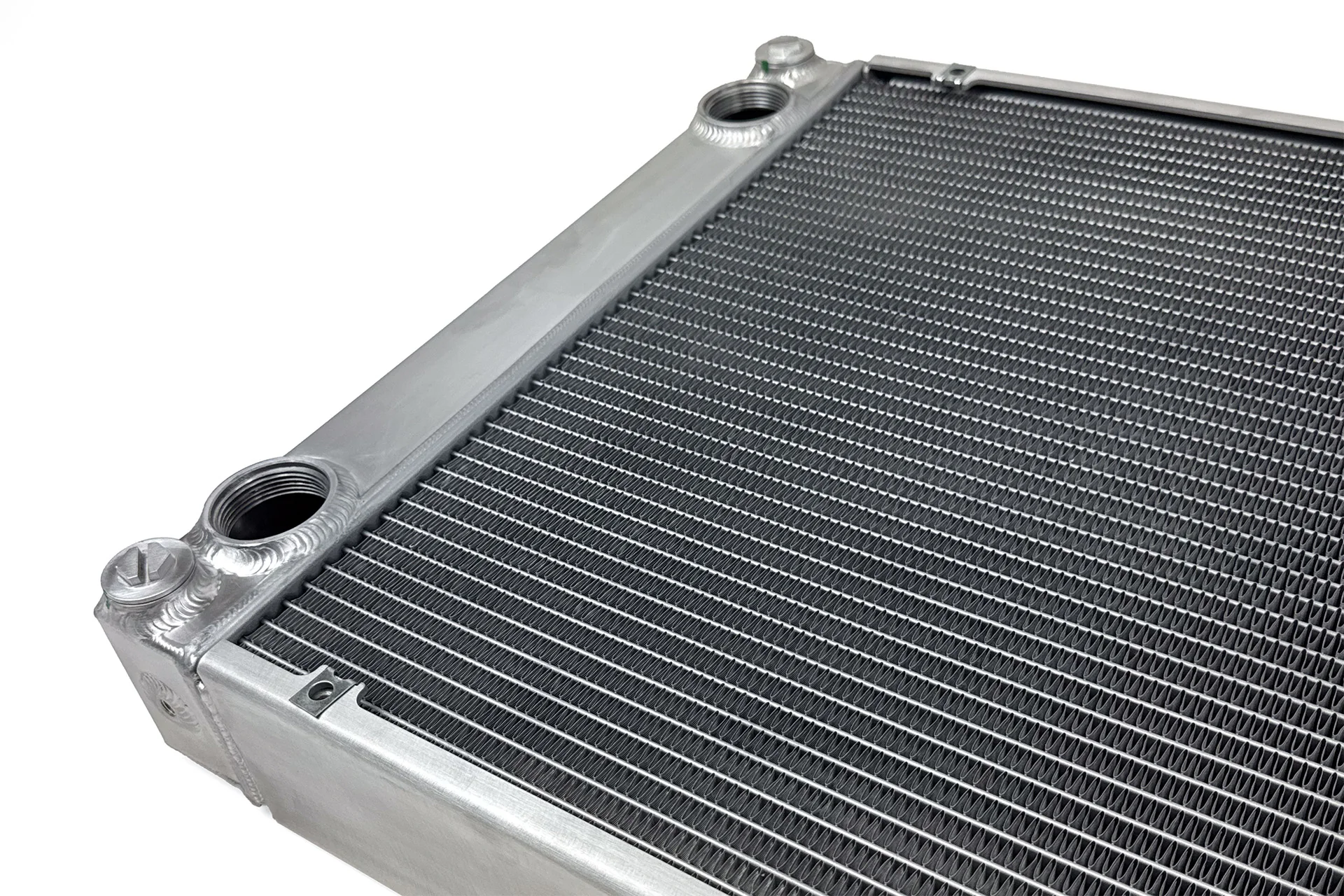

The other benefit of the dual pass design is it places both fittings on one side of the radiator. This configuration is much easier for setting up a remote or rear mounted radiator. Builders can run the inlet and outline lines together for simpler fabrication and overall shorter coolant lines. The fans can also be clocked in 4 different positions to make wire routing easier.
Fittings
The radiator features threaded -20AN ORB ports for the main coolant inlet and outlet for maximum flow capabilities. One piece of feedback CSF has gotten over the years with the R-1 Triple-Pass "Ultimate Motorsports" Competition Radiator (CSF #8023) has been wanting something with -20AN capabilities instead of only -16AN.
To offer customers more versatility, CSF went with -20AN ORB ports that can be used with either -20AN or -16AN Fittings (fittings not included). Larger -20AN fittings and lines offer both a higher burst pressure limit and greater flow rate.

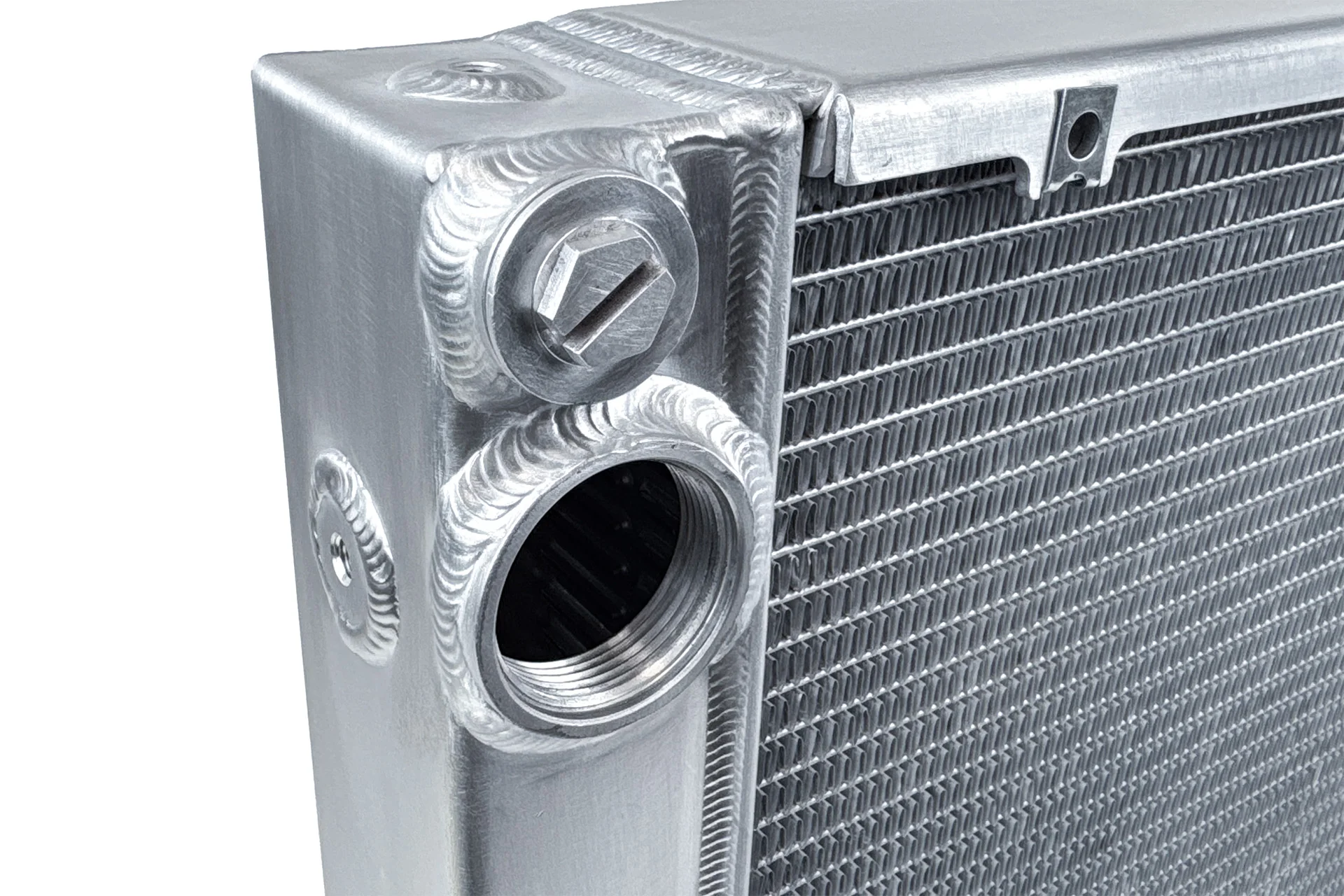

The inlet/outlet tanks also feature two pre-plugged 12AN (1-1/16"-12) ORB ports. These two ports can be used to mount sensors, aid in bleeding the coolant system, connecting an expansion tank, and more. Each port/bung is located above/below the inlet and outlet fittings.
Mounting Bosses
CSF designed the Motorsport Radiator to give fabricators and builders a wide variety of mounting options. Because this radiator will be mounted in different positions and orientations depending on the application, the engineers wanted to ensure there were mounting bosses for any type of setup.

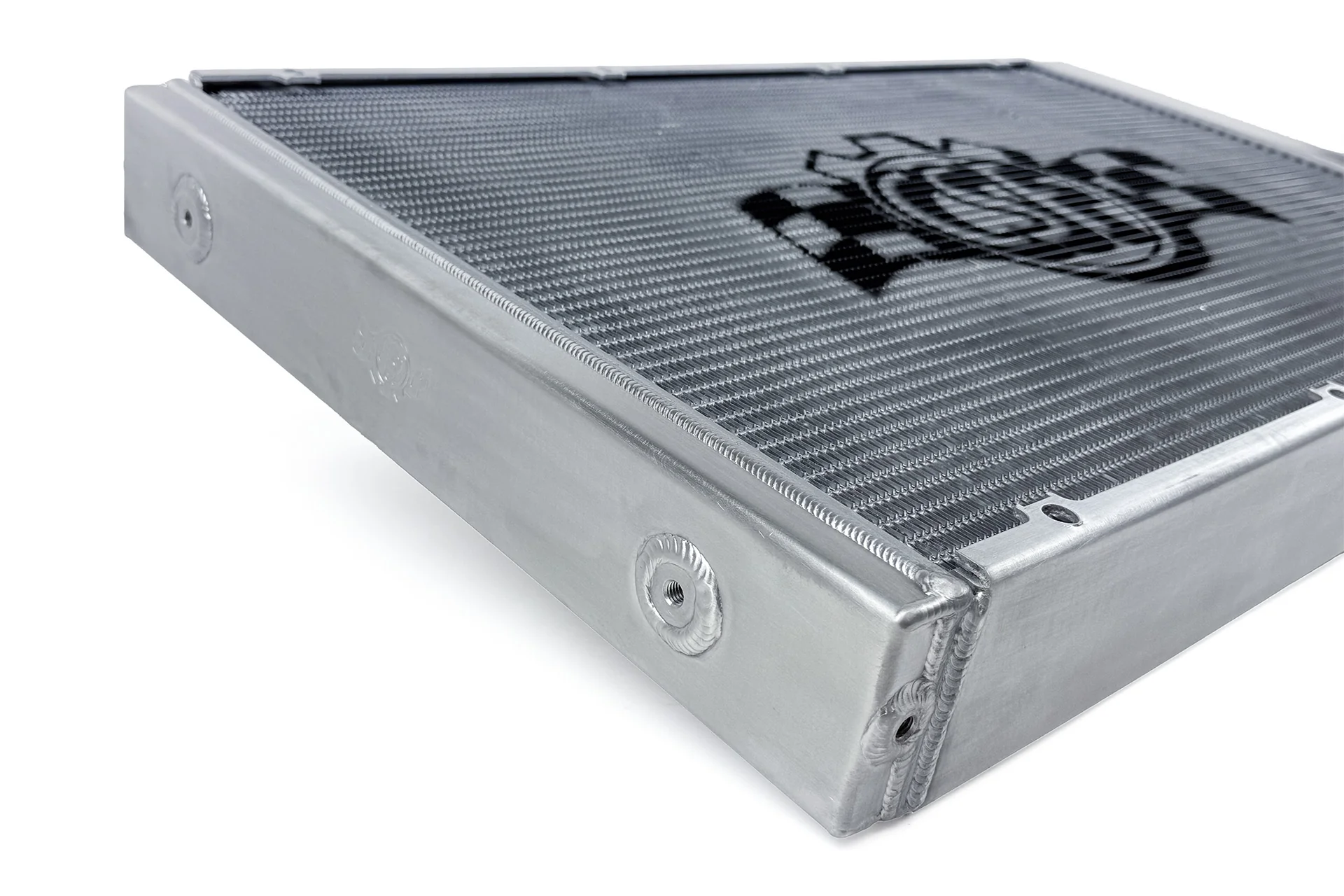

Each tank is equipped with four M8x1.25 mounting bosses (for a total of eight). One on the top and bottom of each tank, and two on the sides. This allows for bolt-on mounting for any type of structural frame or cradle no matter how or where the radiator will be mounted.
Shroud + 14" SPAL Brushless Fans & Harnesses
The radiator is offered in two versions: Radiator only (CSF#8378) and Radiator with Shroud + 14" SPAL Brushless Fans (CSF #8374). Please see the CSF #8374 listing for more details on the fan & shroud.
CSF #8374
Custom Shroud Provisions

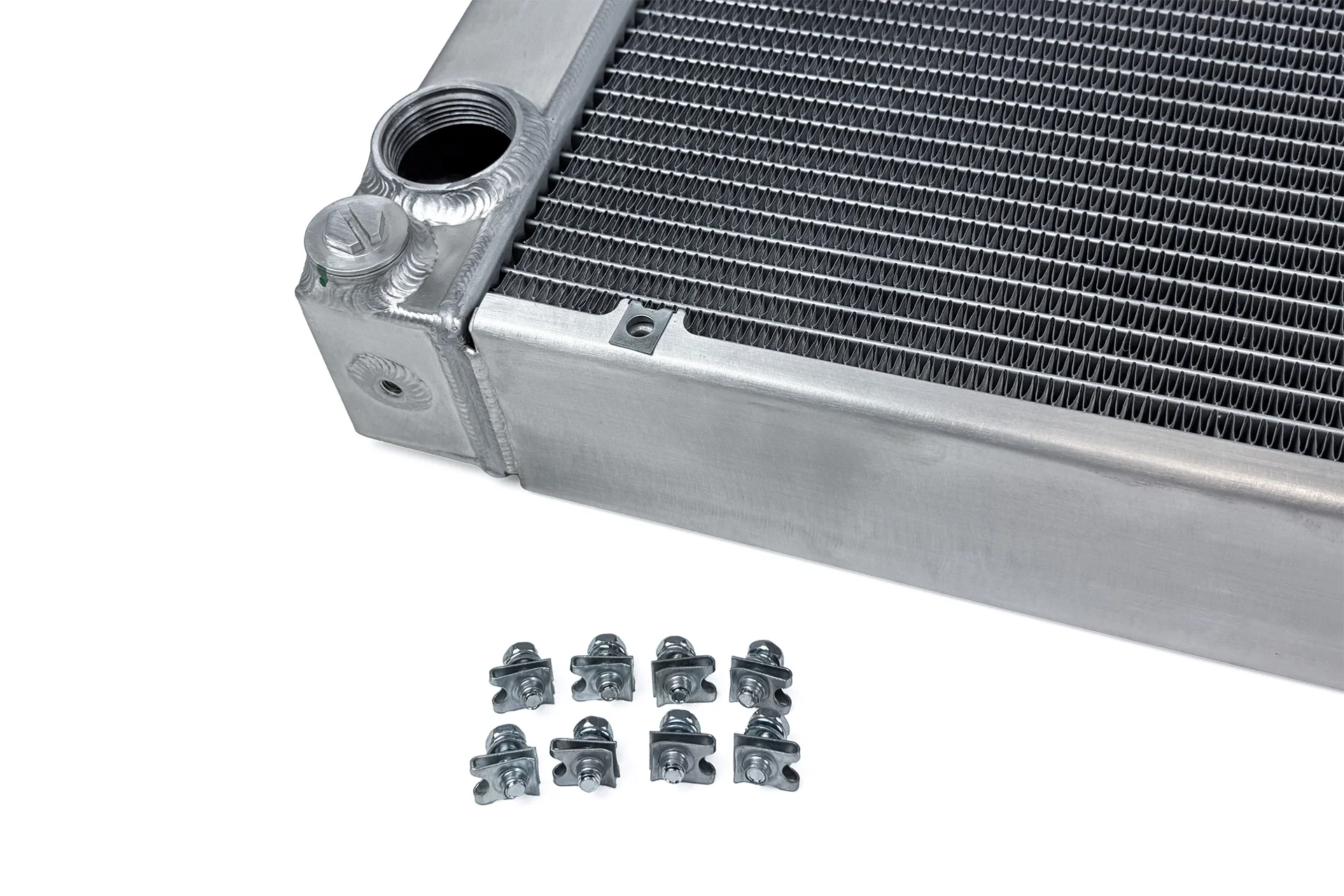

CSF understands that many customers would prefer to design and fabricate their own shroud in some cases. The Radiator only (CSF #8378) includes fasteners (8 U-Nuts and Bolts) for your convenience. This is a great option for those wanting a low profile design, different spec fans, or have specific space constraints.

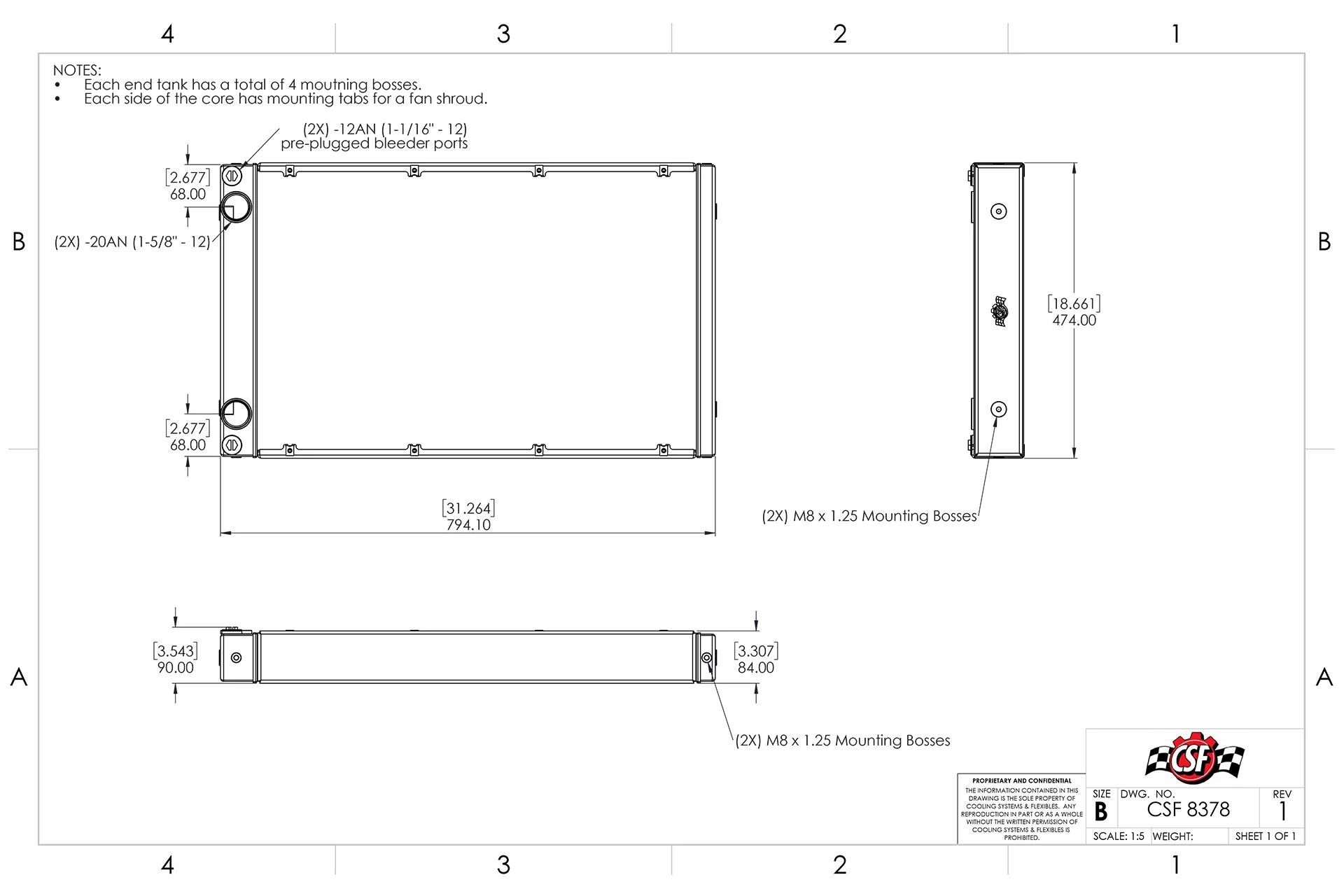

Drawing and Specs
CSF provides drawing and specs on both radiators so fabricators and builders can easily plan the best way to mount the radiator ahead of ordering. All the necessary details and measurements are included.
You can download the PDF File here:
Testing and Race Use
Drift HQ
CSF worked closely with Drift HQ in development and testing. Their expertise and experience with building drift cars offered valuable insight and feedback. The team there played a huge role in many of the exclusive features you won't see on any competitor's radiators.
BMW E46
Before and After Testing
Nissan S14.9
