E36/E46 14mm Bolt Upgrade for (non-M) Polyurethane Front Differential Mount Bushing - Fits E85 and E86

Overview

If you're an avid track racer or drift enthusiast, chances are you may have had to deal with more than a few weak stock bolts, especially those that hold your bushings together! Engineered to withstand the rigors of aggressive driving, this front diff bolt upgrade is a game-changer for those seeking added strength and peace of mind for your non-M E36, E46, or Z4 without the need to tap and drill the threaded holes on your differential.

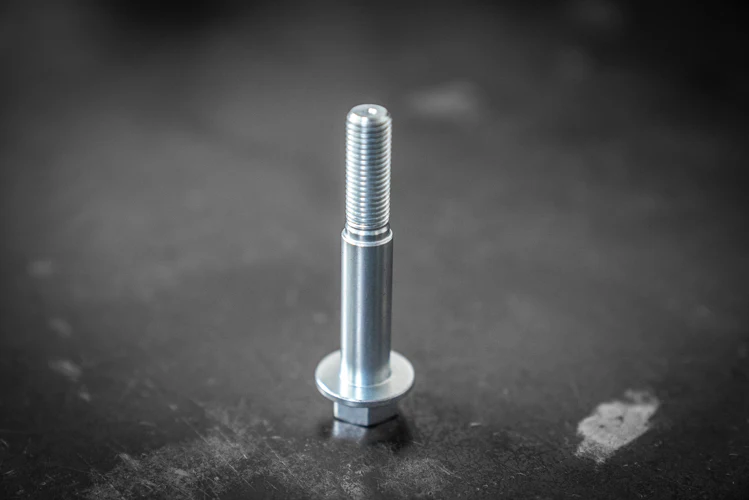

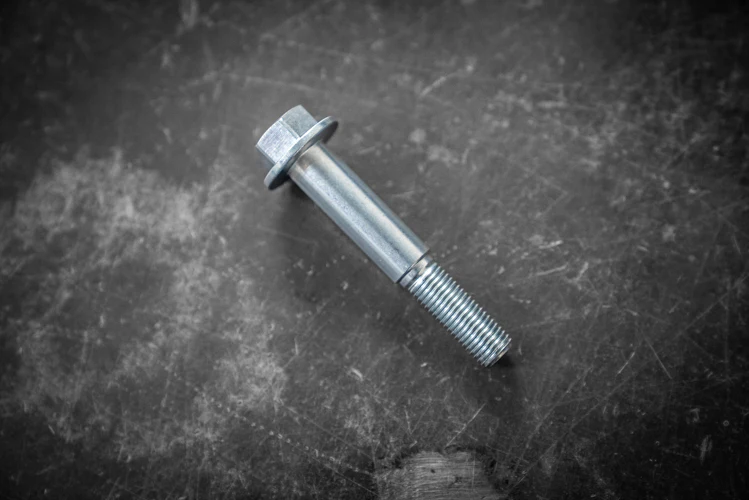

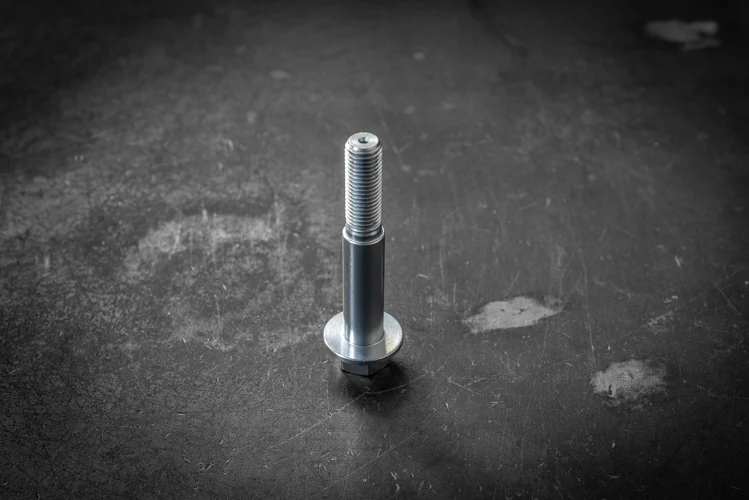

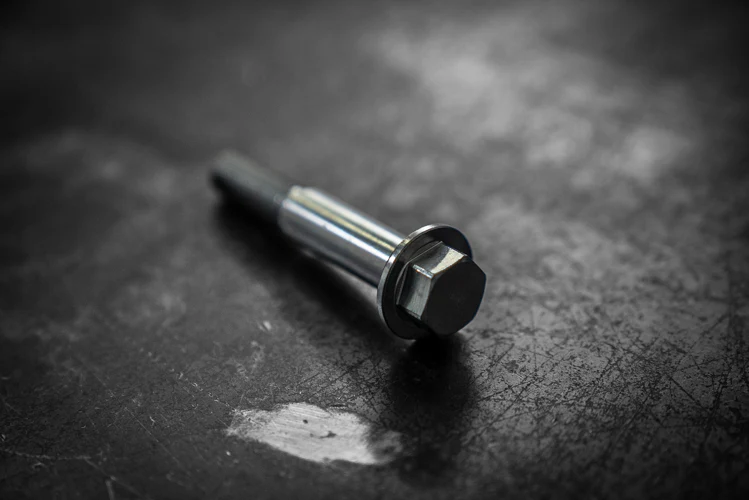

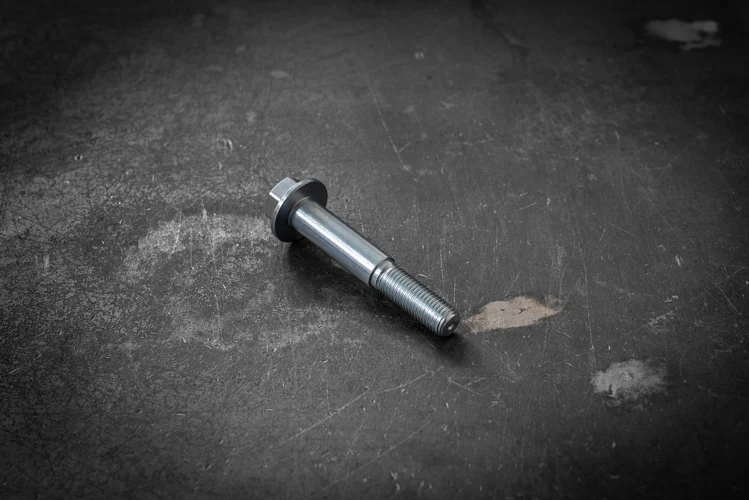

Say hello to our Garagistic 14mm Bolt Upgrade - a tried and tested solution to weak stock diff bolts! With a 14mm shank and threads that match the factory thread pitch of the holes on your differential, M12x1.5, our diff bolts are a fantastic upgrade that improves on both overall strength and fitment, while also not requiring you to drill and tap your differential to M14. Made using class 12.9 steel, it boasts remarkable tensile strength, standing at least 25% stronger than the mediocre medium-strength steel screws used in stock bolts. This impressive enhancement in strength ensures that the bolt can handle the aggressive forces encountered on the track, offering you unmatched durability and performance. This upgrade will require drilling out the factory bushing race to 14mm to accept the larger shoulder of the new bolt, but no tapping or drilling will be necessary to your differential.

Many BMW enthusiasts involved in track racing, drifting, or spirited driving have experienced the headache of stock bolts snapping under intense driving conditions. While suitable for regular driving, the factory bolts are beginning to show their age and often fail to handle the increased stress and forces encountered during high-performance maneuvers. This can lead to catastrophic consequences, leaving drivers stranded and putting their safety at risk.

Drilling your bushings to 14mm is required, but we highly recommend pairing our 14mm bolt with our Garagistic 14mm front differential mount bushings! We sell a combo of bushing + bolt which you can purchase here! (Will also work with other aftermarket 14mm front diff bushings)

Why not just get a higher-grade bolt?

You are absolutely welcome to source a replacement bolt if you feel it will perform the same. We explored that route extensively before deciding to design our own hardware. Unfortunately, there is not an off the shelf option that truly meets the requirements of this application.

One important detail that is often overlooked is the design of the OEM bolt itself. The factory bolt uses a shouldered design where the shoulder diameter is actually smaller than the thread diameter. This results in a surprisingly loose fit inside the differential bushing, looser in fact than even a standard nominal shoulder bolt. That excess clearance is a major reason the OEM bolt is so prone to wear, noise, and eventual failure.

Precision shoulder bolts with tighter tolerances do exist, but they become very expensive very quickly and still do not offer a meaningful upgrade in material grade relative to cost. The closest readily available hardware still allows unwanted movement between the bolt and the bushing.

What ultimately causes differential bolts to fail is not just bolt strength, but movement. Any clearance between the differential bushing and the bolt allows the differential to shift under load. The sloppier the fit, the more movement is introduced, which leads to the familiar clunking noise and over time fatigue and bolt failure. This is especially common in high load scenarios like clutch kicking and aggressive driving seen in drift cars.

While using a higher grade bolt is an improvement over the OEM bolt, it does not address the root issue if the fitment remains loose. The repeated up and down movement of the differential nose creates accelerating forces that concentrate stress at the start of the threads, which is where failures typically occur.

The M14 upgrade approach has been used successfully by racers and drifters for many years, and we did not invent it. Increasing the shoulder diameter adds strength, but more importantly it significantly reduces movement by fitting more tightly inside the bushing. In our design, the 14 mm shoulder is what prevents the differential from shifting under heavy load.

Is this as strong as a true M14 bolt with 14 mm threads all the way through. No. A full M14 bolt does have larger threads and more ultimate strength. However, running a standard M14 bolt requires drilling and tapping the OEM differential housing. This is something many owners understandably want to avoid, especially as these differentials become harder to replace.

Our solution was developed to strike a balance. It provides a meaningful upgrade over the OEM bolt, improves fitment to reduce movement, and increases reliability, all without requiring permanent modification to the differential. We invested the time and resources to create a solution we believe provides real value at an accessible price, offering peace of mind and a practical improvement over the factory hardware.

Cliff notes:

The OEM differential bolt is prone to failure because its shoulder diameter is smaller than the threads, resulting in a loose fit in the bushing that allows unwanted movement. That movement, not just bolt strength, is what causes noise and eventual bolt failure under load. Our upgraded bolt uses a larger 14 mm shoulder to tightly fit the bushing and reduce differential movement without requiring drilling or tapping the housing. This provides a practical and affordable reliability upgrade over the OEM hardware.

Features

• Shank Thickness: 14mm
• Thread Pitch: M12x1.5 (Same as OEM threaded holes on differential)
• Bolt Grade: 12.9
• Coating: Clear Zinc Coated (for rust prevention)

Requirements by Chassis

E36 chassis (except Ti) will require 1x of these bolts

E46 (non-M) chassis will require 2x of these bolts

Z4 (non-M) chassis will require 2x of these bolts

Fitment

WHAT MODEL CARS WILL THIS BOLT FIT?

• Replaces: Direct replacement for OEM Bolt PN#33176760337
• Note: Your bushing will need to be drilled out to accept the larger 14mm shoulder, or you can purchase a 14mm diameter bushing from us directly here!
• Fits: E36 chassis (All Models, EXCEPT Ti)
• Fits: E46 chassis (All Models, Except M cars)
• Fits: E85 and E86 Z4 chassis (All Models, Except M cars)

• Note: Does NOT require threaded differential holes to be drilled and tapped to M14
