E36 SHEET METAL OIL COOLER BRACKET

Overview

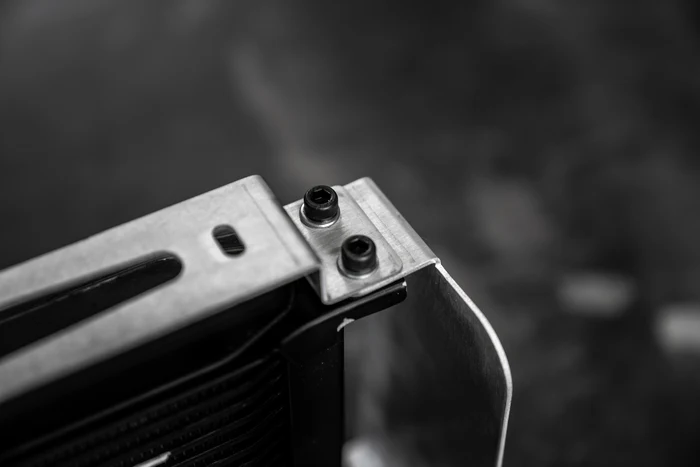

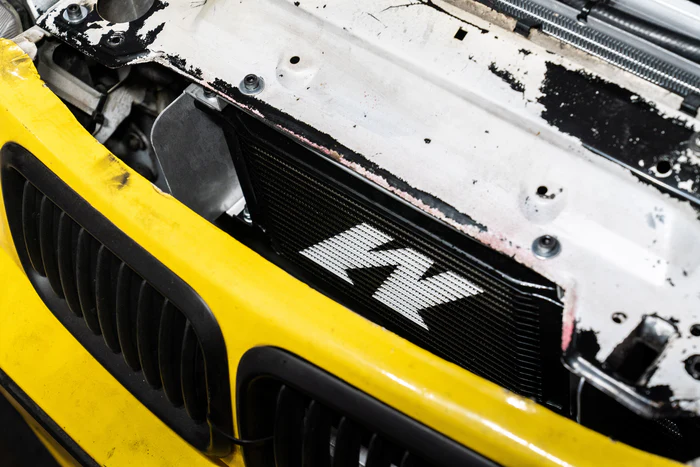

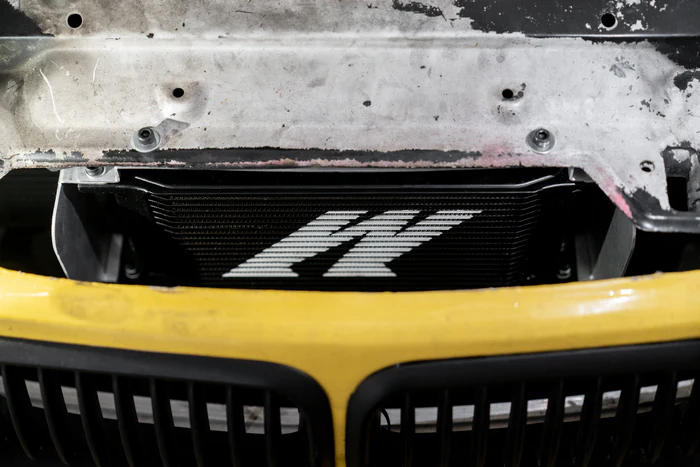

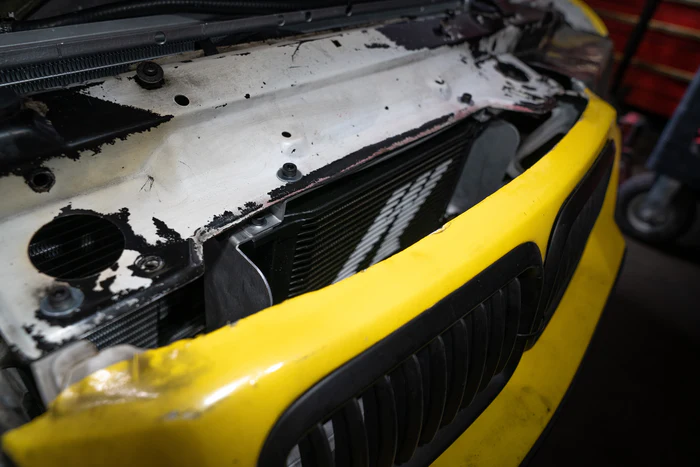

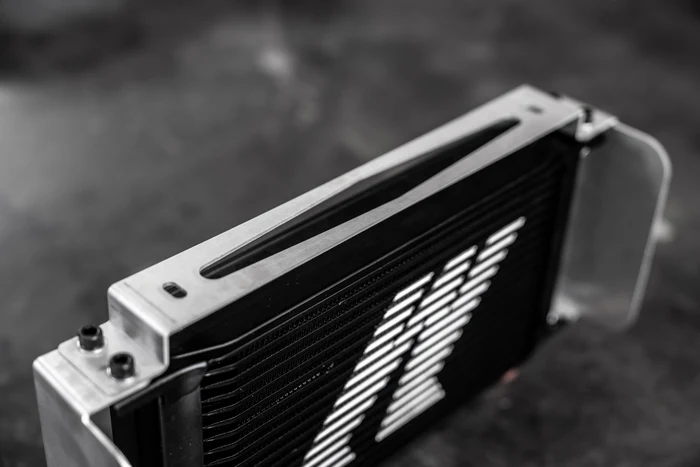

Introducing our budget-friendly version of our billet e36 oil cooler mount. Made from .08" thick aluminum for a light but strong setup. Our e36 oil cooler mount uses existing holes found in your OEM E36 radiator support. We supply all hardware needed to go from radiator support to oil cooler. It's that simple. Fully reversible if need be. These E36 oil cooler brackets are basic in nature, but an overall very tidy and quick way to have protection for your motor. These even include some shrouding pieces to make your oil cooler a little more efficient.

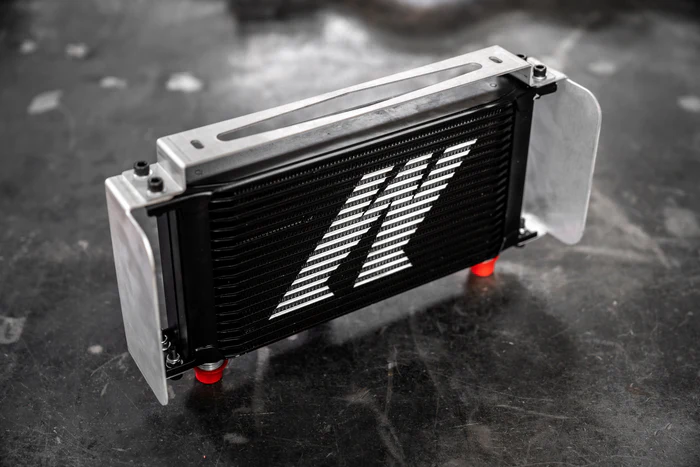

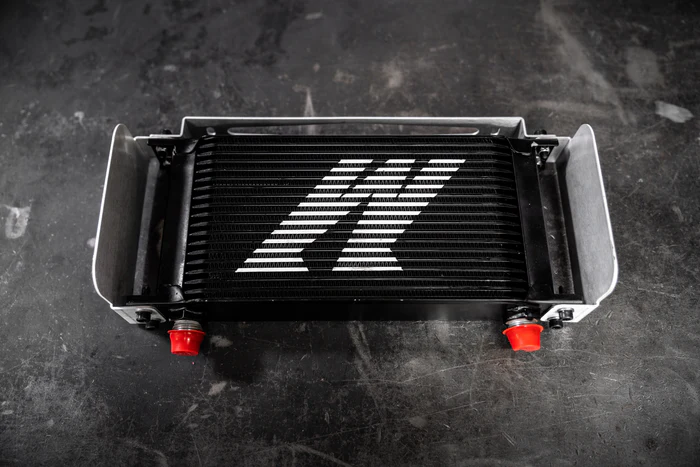

We chose the MMOC-19BK 19-row oil cooler for a few reasons. It's compact while also being efficient for its size, plus its lightweight construction and massive -10an inlet and outlets, make for a great all-around oil cooler.

IMPORTANT NOTES!

• We highly recommend fitting a one-way oil check valve on the oil cooler's feed line to ensure oil remains in the cooler after shutdown.
• The installation will require the cutting of the chassis bar due to the mounting location.
• Oil cooler not included

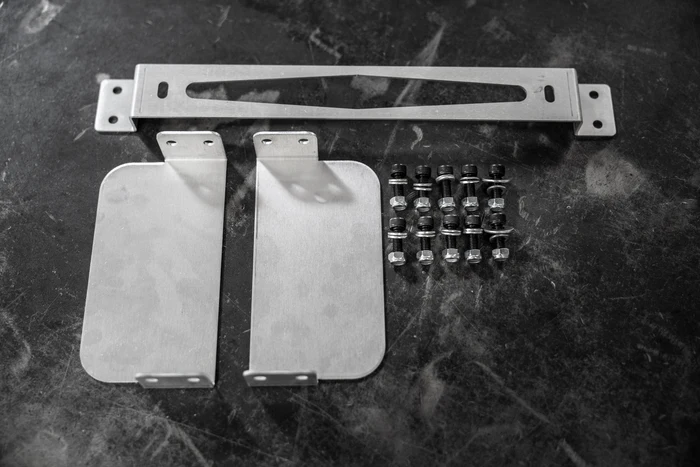

Included with each Oil Cooler Bracket/Mount

• 1x Oil Cooler Bracket
• 2x Side Sails
• 10x M6 Bolts
• 10x M6 Nylon Nuts
• 18x M6 Washers
• 2x M6 Fender Washers

Compatibility

• NOT COMPATIBLE WITH OEM A/C CONDENSER FAN
• Designed for use with Mishimoto 19-row oil cooler (PN# MMOC-19BK)
