E36 Rear Subframe Bushings
If you're planning on putting more power through that E36 chassis or just want to run it pretty hard, you'll want to lock down that rear sub frame with stiff bushings to eliminate movement.
General fitment

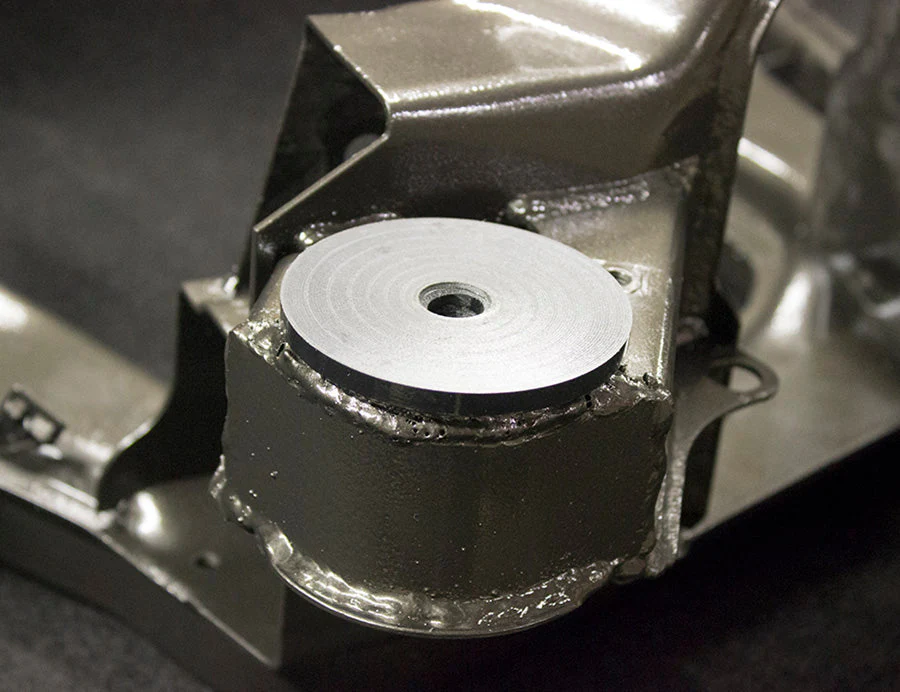

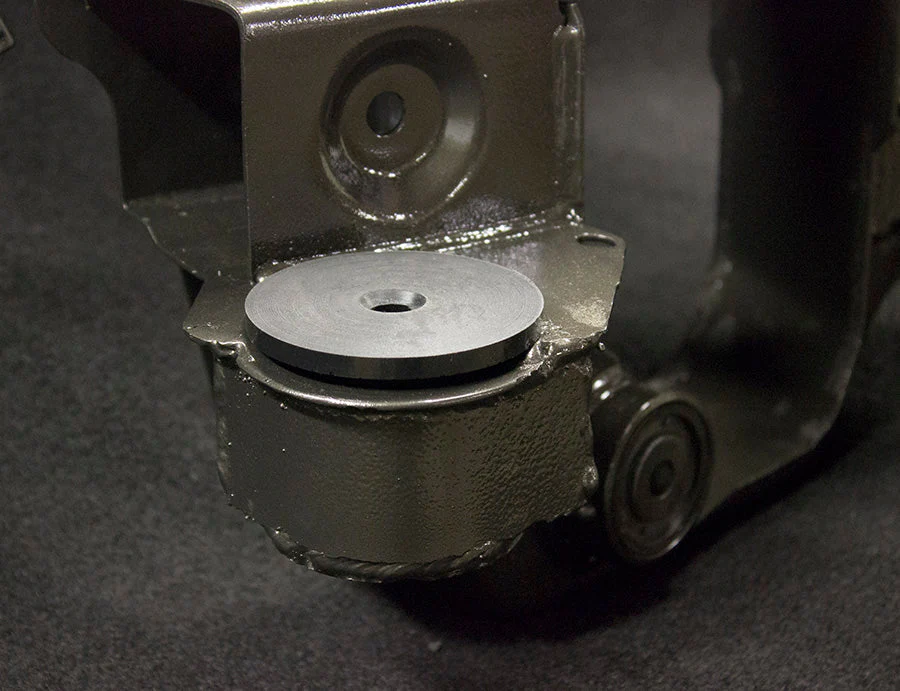

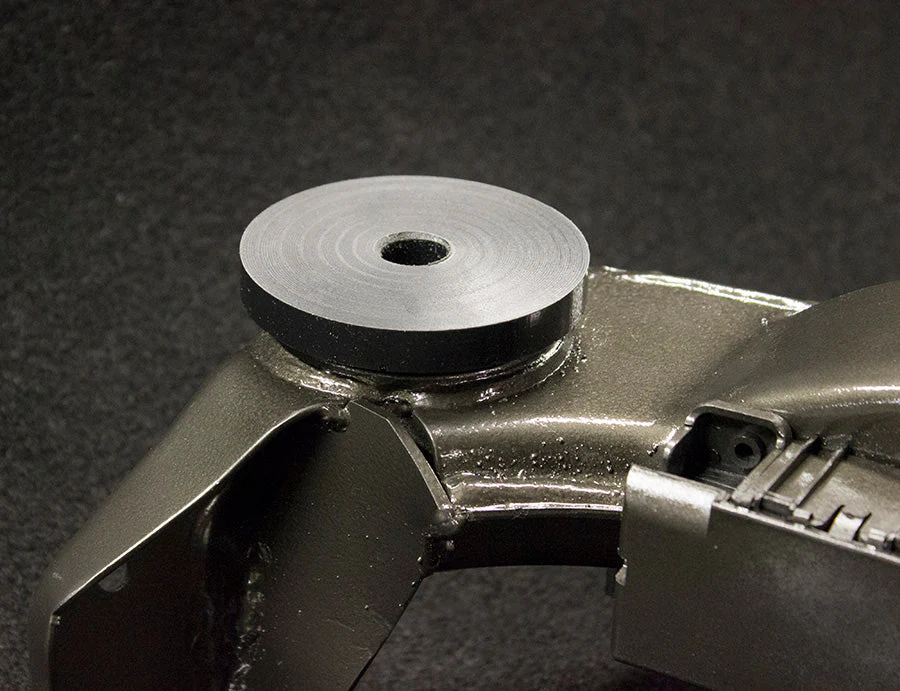

The new 8 piece kit will replace all 4 of the main sub frame bushings to maximize control. The kit contains upper and lower bushings for all 4 corners designed to work the factory bolting hardware and washers or cups.
Material and installation
The new bushings are molded from a 70D Polyurethane. This hard, extremely high grade material comes from heavy industry with properties similar to Nylon or Delrin.
The polyurethane also has a few advantages over aluminum bushings, the first noticeable one will be fitment on installation. When the factory made the sub frame, they planned on using the rubber press in bushings that had give and compression that would mold to the irregular shape of the welded steel frame cups. The polyurethane has just enough compliance to fit these deformed shapes without modifications required. Solid Aluminum bushings with a "zero fit" do not have any conformability and often require sanding to fit, if you sand too much, then they're too small and are loose.
The second noticeable difference is when it's all together in the car. Solid aluminum bushings transmit all the road and suspension noise directly into the chassis with no absorption or dampening. The polyurethane has a vibration absorption effect that helps with the transmission of noise helping to keep vibration out of the chassis.
Ā
Features

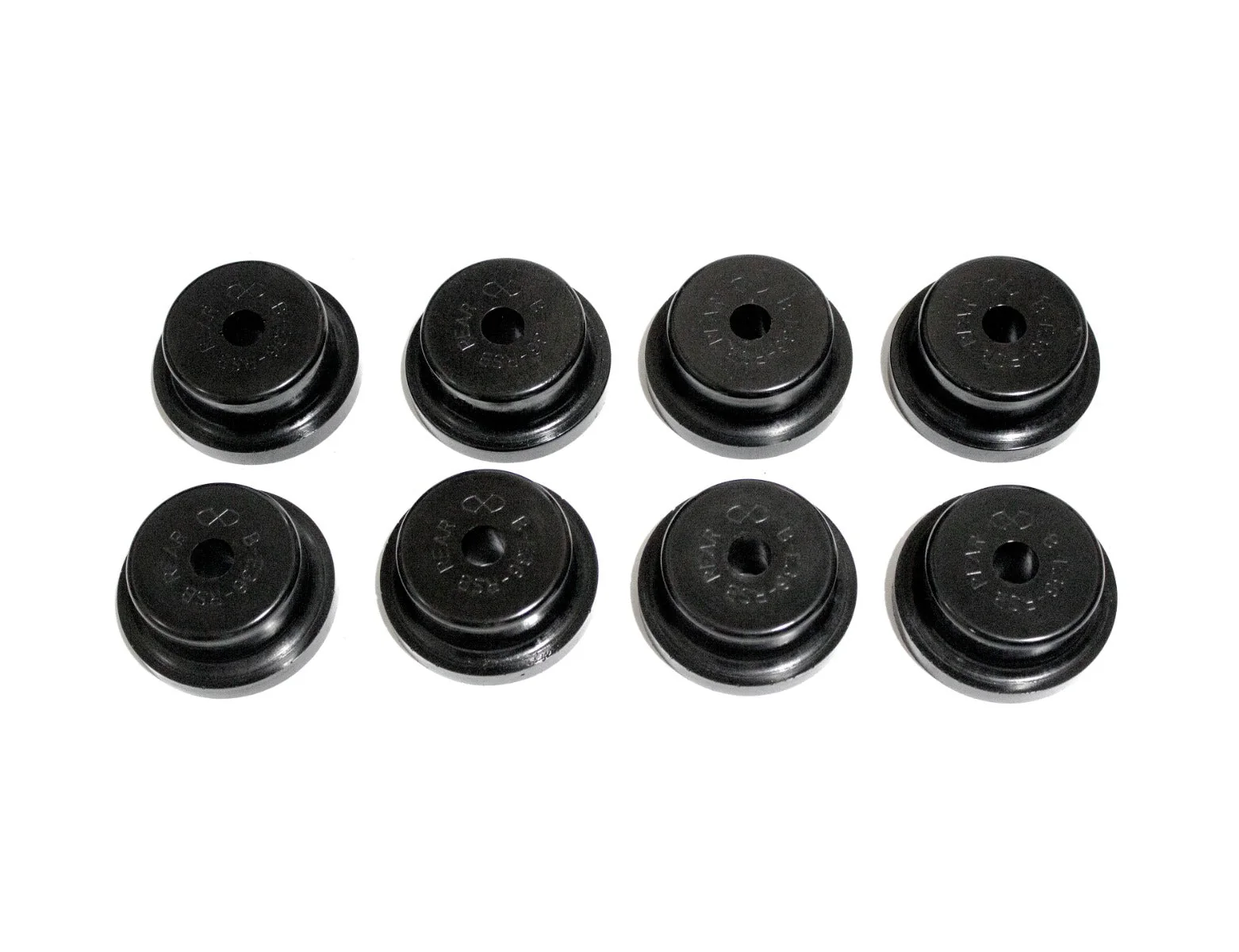

Sold as a complete set of 8 parts. 4 top bushings and 4 bottom bushings
