Garagistic - E46 M3 Complete Race Suspension Bushing Kit
E46 M3 CompleteĀ Race Suspension Bushing Kit
Overview
WHAT IS THE COMPLETE BMW E46Ā RACE SUSPENSION KIT?
We decided to make life easy for E46 customers who are building a track or race car and are in need of a suspension bushing refresh! Our complete E46 performance/raceĀ suspension bushing kit covers all the major suspension bushings on your E46 chassis, so instead of having to individually select each bushing we have assembled this kit to make getting all the bushings you need for your E46 suspension as easy as possible. With a few simple feature selections and yourĀ choice of material, a complete suspension overhaul can be on the way to you! This E46 solid suspension refresh kit comes with a Garagistic lifetime warranty.
NVH Disclaimer: As with all aluminum/delrin bushings, there will be an increased level of NVH (noise, vibration, and harshness) which should be expected when running any solid bushings.
SHOULD I CHOOSE THE DELRIN OR ALUMINUM VERSION OF THE KIT?Ā
Well, the answer to this question depends upon what you are using the car for, and how built the car is/going to be. For most drift/road race E46s, Delrin is probably going to be the best option, as while extremely strong, DelrinĀ is excellent for track-oriented or dedicated track vehicles as it does still offer some vibration absorption over solid aluminum while still being extremely rigid.
That said, if your drift/road race car has high horsepower, or you drive extremely hard, and NVH really doesn't matter to you, Aluminum would likely be the best choice for you since aluminum bushings areĀ made from a solid metal which means that they will be able to withstand heat extremely well, and can hold up to insane amounts of abuse day after day without ever having an issue. On top of all of that, the aluminum bushings will give you the most amount of feedback and the rawest driving experience, which is great for track cars as that feedback will allow you to drive at the edge of the car's capability because you will be able to predict when the car is going to break loose!Ā
Spherical Bushings
Our performance/race bushing kit comes with both spherical rear trailing arm bushings, and spherical upper and lower control arm bushings! Why you might ask? Well, the E36 rear suspension was designed to have articulation between the RTAB and rear control arms, which in turn allows the car to squat and modulate the rear end under acceleration, turn-in, and heavy braking. This is a crucial factor of the rear suspension that is often overlooked when purchasing bushings, which is why people tend to purchase Delrin RTABs that completely restrict the chassis' natural articulation.Ā
Our spherical RTABs and Control arm bushings are completely rebuildable and will give you a long-term solution with an insane amount of suspension/handling benefitsĀ when compared toĀ solid or polyurethane bushings!
WHY REPLACE MY EXISTING E46 SUSPENSION BUSHINGS?
The stock rubber bushings, while great for comfort, flex and allow the rear suspension to move in ways that are not favorable for keeping good suspension geometry and tire contact. This leads to an unstable feeling in the suspension as the components flex and move around in a non-linear manner. Also, many of the factory bushings that the E46 came equipped with have seen the end of their life with the now-aging E46 chassis and often are in desperate need of a replacement for optimum performance especially on cars that are driven hard. This kit is an absolute must for your all-out track, autocross, or drift E46 monster, but also an excellent upgrade for any performance or handling enthusiast.

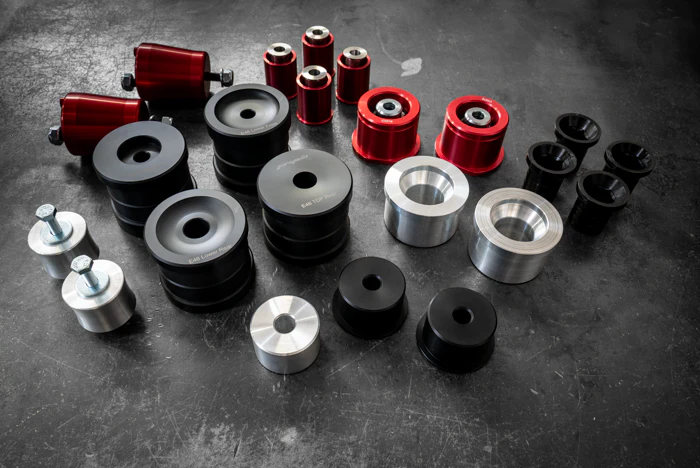

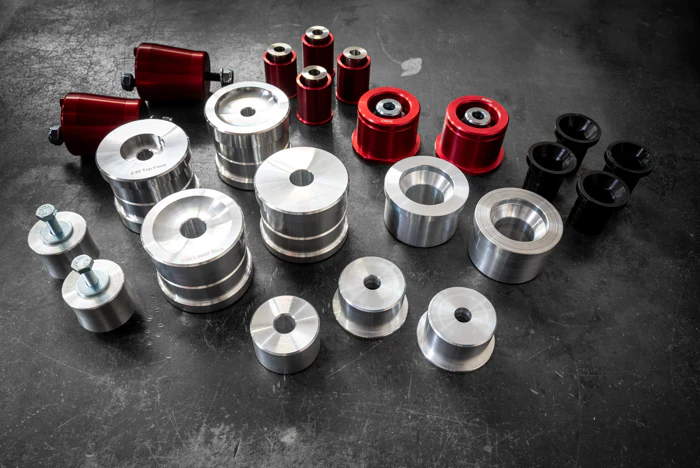

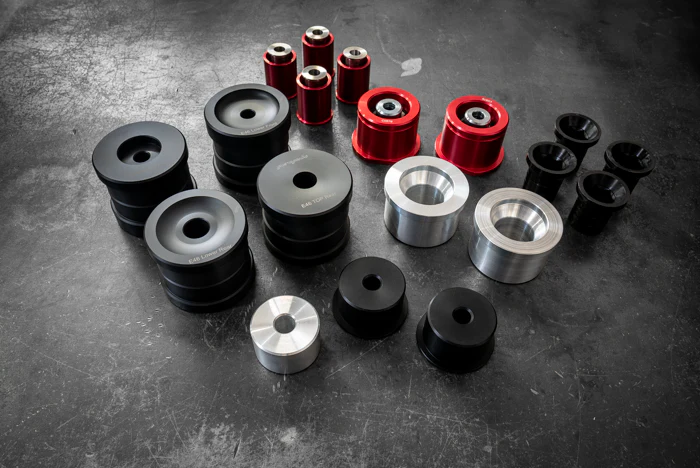

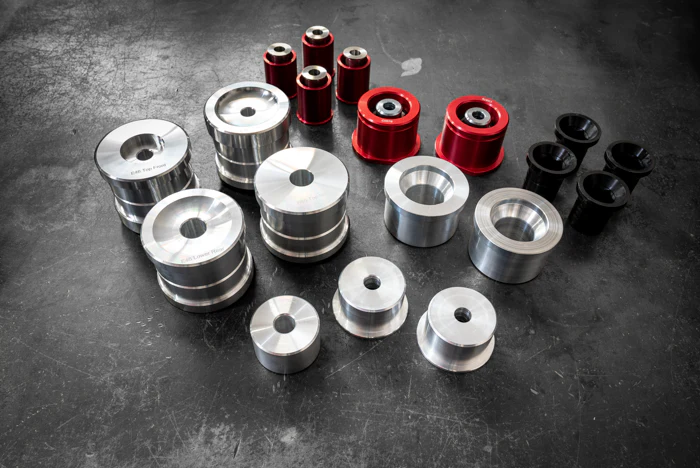

The Garagistic E46 Performance Suspension Bushing Kit comes with your options of either Delrin or Aluminum subframe bushings, differential cover bushings, spherical trailing arm bushings, spherical upper and lower control arm bushings, and billet treehouse front control arm bushings, all of which are fantastic for track/race cars! Plus you have your choice of either centered or offset treehouse mounts for either E36 control arms or E46 control arms.
Included
- Aluminum or DelrinĀ Front Control ArmĀ Bushings
- AluminumĀ E46 M3 Front Differential Bushing
- Aluminum or Delrin Rear Differential Cover Bushings
- Aluminum or Delrin Rear Subframe Bushings
- Spherical Monoball Trailing Arm Bushings
- Spherical Monoball Rear Control Arm Upper + Control Arm Lower Bushings
- Optional:Ā Aluminum M/S5XĀ Motor and Trans Bushings
NVH Disclaimer:Ā As with all aluminum/delrin bushings, there will be an increased level of NVH (noise, vibration, and harshness) which should be expected when running any solid bushings.
Fitment
- Performance Bushing Kit
- Fits all E46 M3 Models
- Does not fit non-m E46 models
- Optional:Ā S5X Motor and Trans MountsĀ
- FitsĀ S54 motors and transmissions
