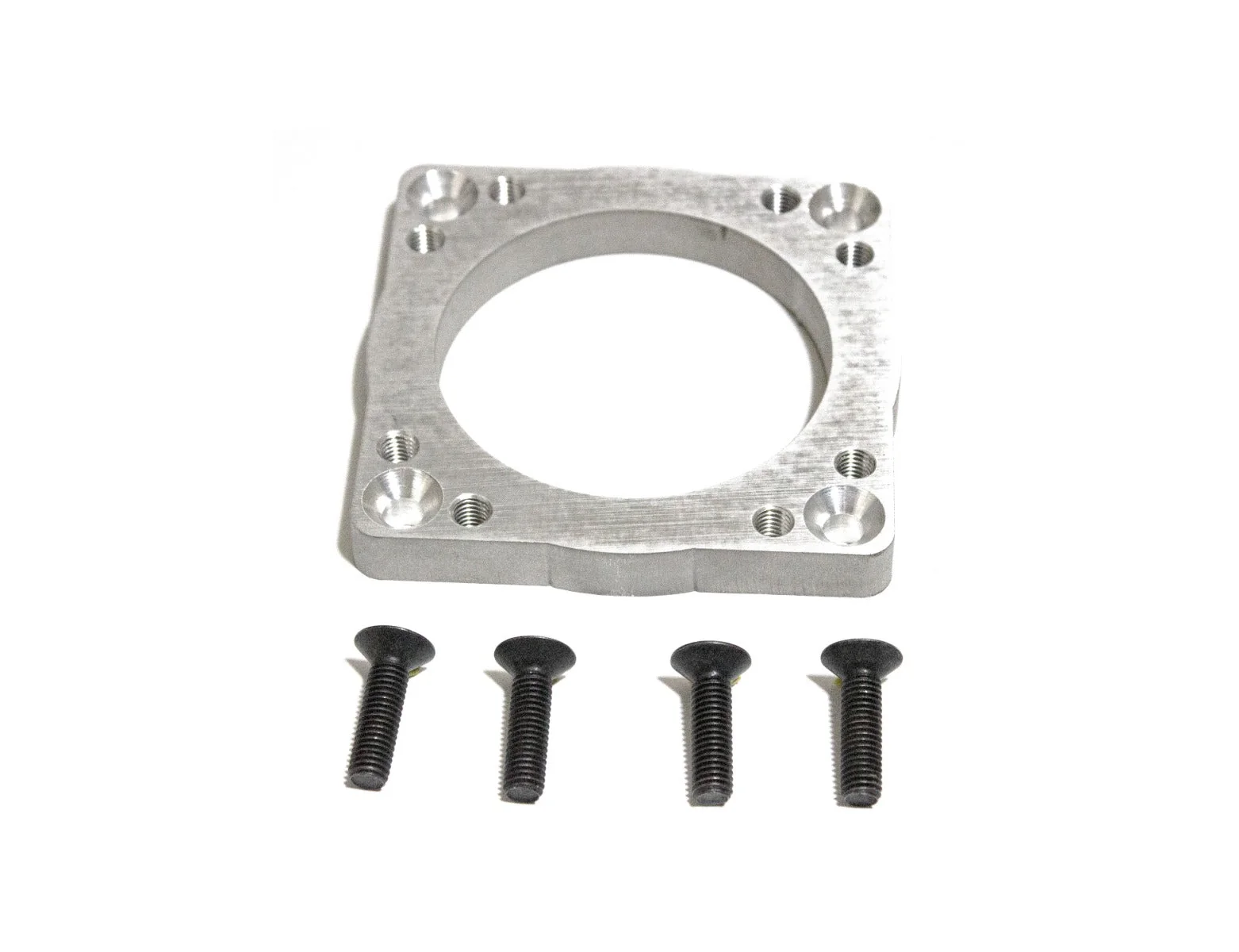

Ford 5.0 intake to Q45 Throttle Body Adapter Flange
If your intake manifold is set up for a Ford 5.0 throttle body but you want to run a Q45 throttle body, we've made this adapter flange that allows you toĀ adapt on the Infinity based Q45 throttle body. (modifications required to throttle body)

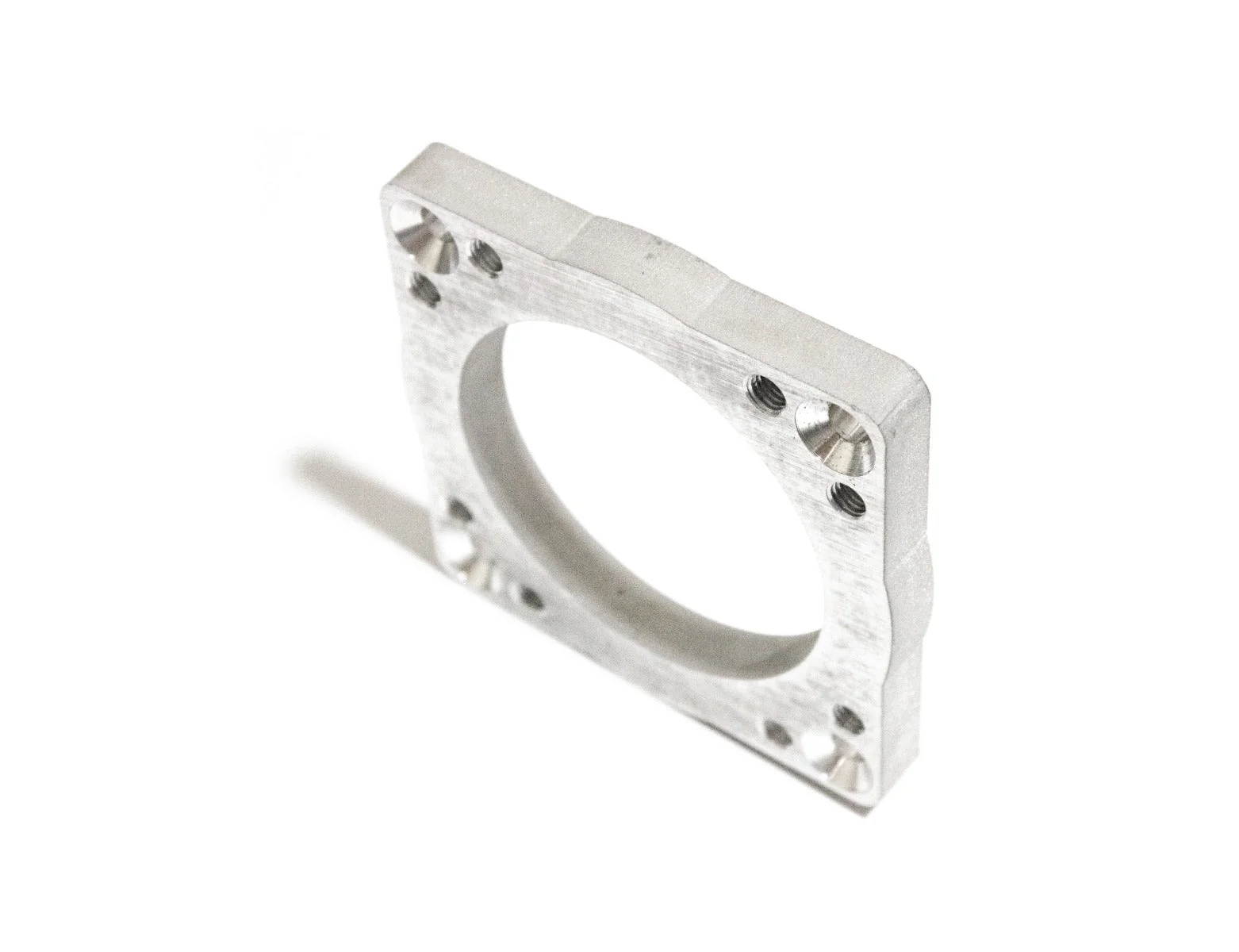

The flange is bored to 82mm for the Q45 and flared on the back side for 90mm Ford.
The flanges are machined from 1/2" thick 6061 T6 aluminum and threaded for 8m bolts on the Q45 pattern. In order to get the bolt patterns to adapt, we've rotated the Q45 pattern 12 degrees in both CW and CCW directions giving you a dual pattern to pick your placement of the Q45 based throttle body.
We've also supplied the flat head bolts required for attaching it to yourĀ Ford intake, so no having to source special bolts.
We also offerĀ aĀ Q45Ā throttle cable brackets that may just suite your application and make install a lot easier.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Ford 5.0 intake to Q45 Throttle Body Adapter Flange
Ford 5.0 intake to Q45 Throttle Body Adapter Flange
If your intake manifold is set up for a Ford 5.0 throttle body but you want to run a Q45 throttle body, we've made this adapter flange that allows you toĀ adapt on the Infinity based Q45 throttle body. (modifications required to throttle body)
The flange is bored to 82mm for the Q45 and flared on the back side for 90mm Ford.
The flanges are machined from 1/2" thick 6061 T6 aluminum and threaded for 8m bolts on the Q45 pattern. In order to get the bolt patterns to adapt, we've rotated the Q45 pattern 12 degrees in both CW and CCW directions giving you a dual pattern to pick your placement of the Q45 based throttle body.
We've also supplied the flat head bolts required for attaching it to yourĀ Ford intake, so no having to source special bolts.
We also offerĀ aĀ Q45Ā throttle cable brackets that may just suite your application and make install a lot easier.
Original: $63.00
-65%$63.00
$22.05Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
If your intake manifold is set up for a Ford 5.0 throttle body but you want to run a Q45 throttle body, we've made this adapter flange that allows you toĀ adapt on the Infinity based Q45 throttle body. (modifications required to throttle body)
The flange is bored to 82mm for the Q45 and flared on the back side for 90mm Ford.
The flanges are machined from 1/2" thick 6061 T6 aluminum and threaded for 8m bolts on the Q45 pattern. In order to get the bolt patterns to adapt, we've rotated the Q45 pattern 12 degrees in both CW and CCW directions giving you a dual pattern to pick your placement of the Q45 based throttle body.
We've also supplied the flat head bolts required for attaching it to yourĀ Ford intake, so no having to source special bolts.
We also offerĀ aĀ Q45Ā throttle cable brackets that may just suite your application and make install a lot easier.
