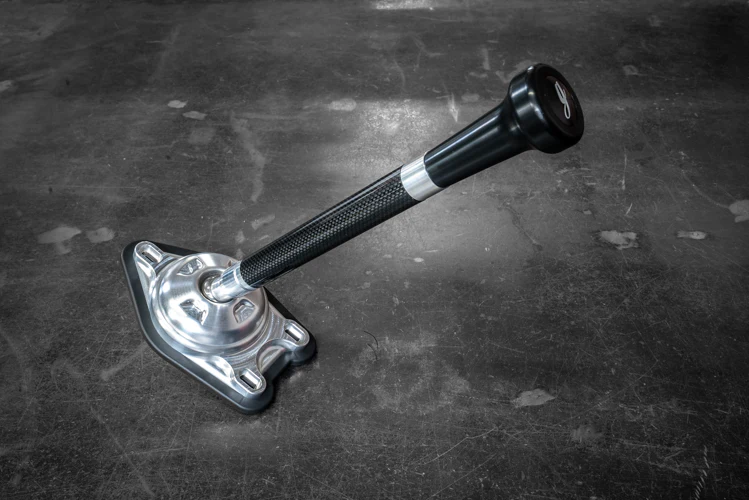

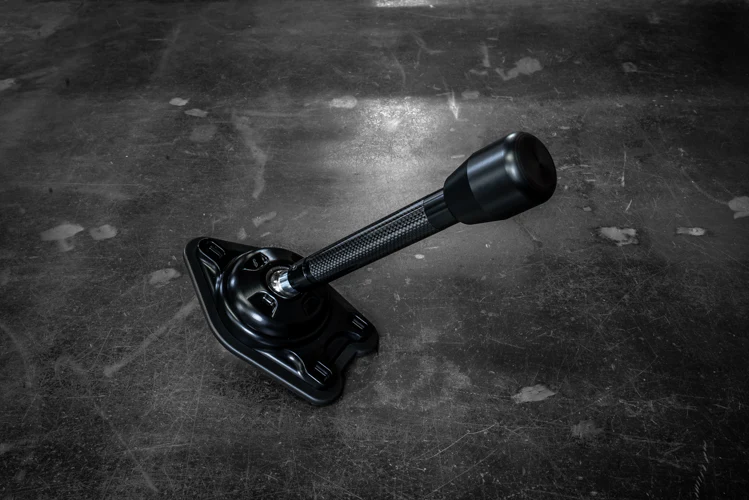

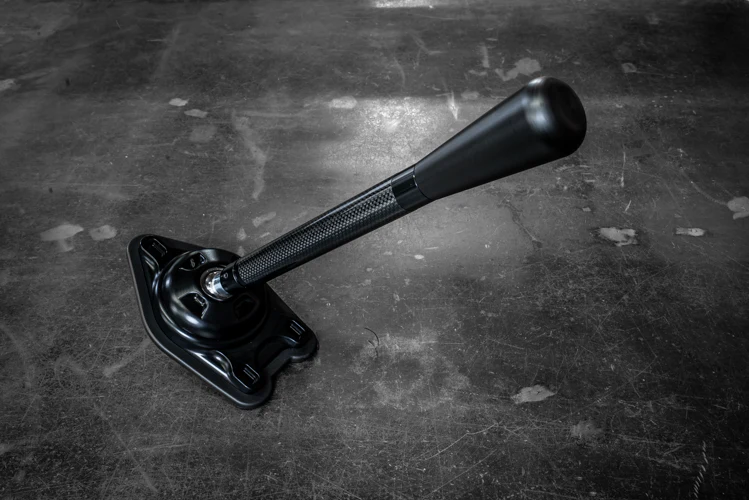

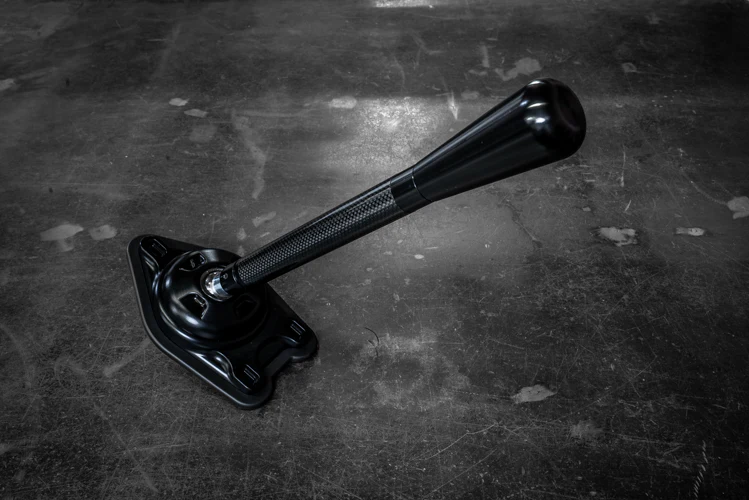

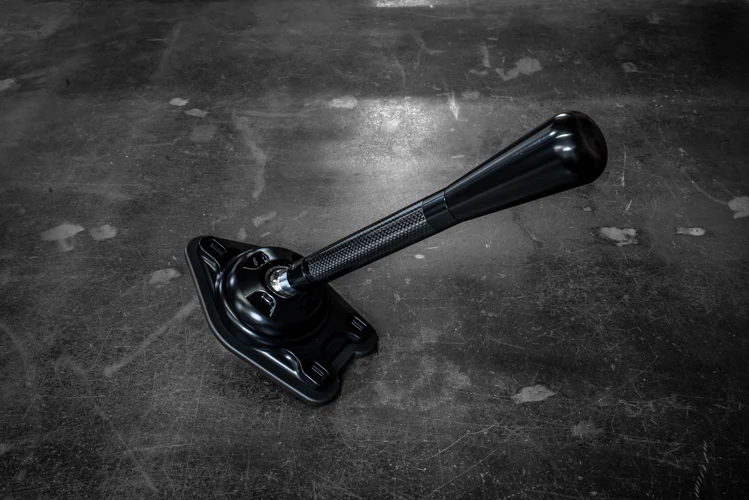

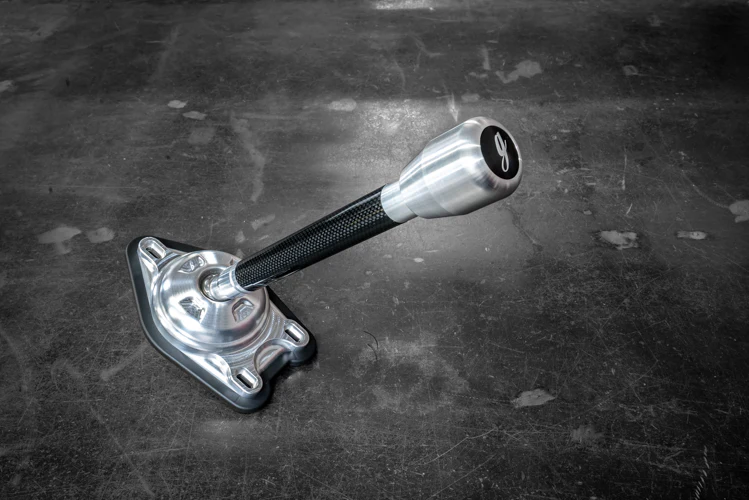

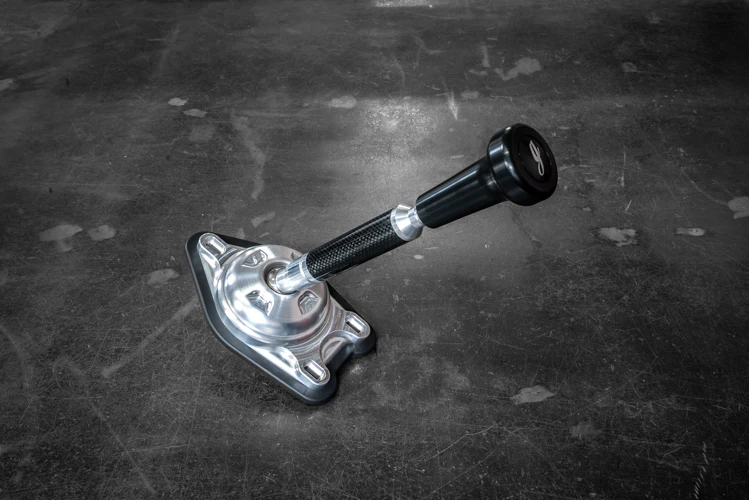

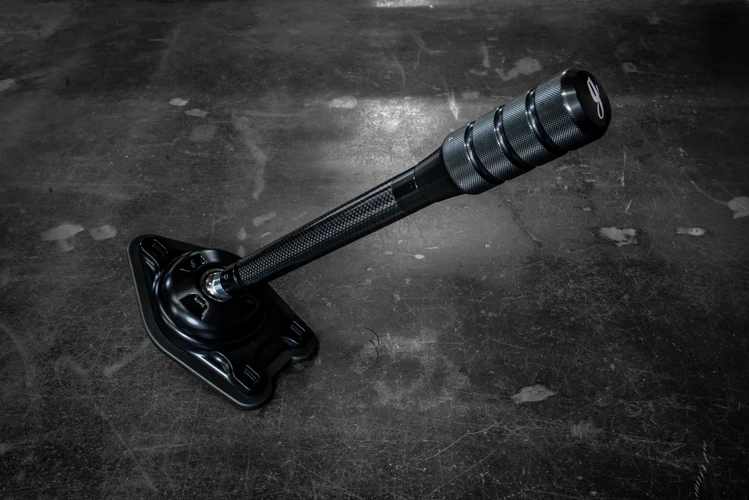

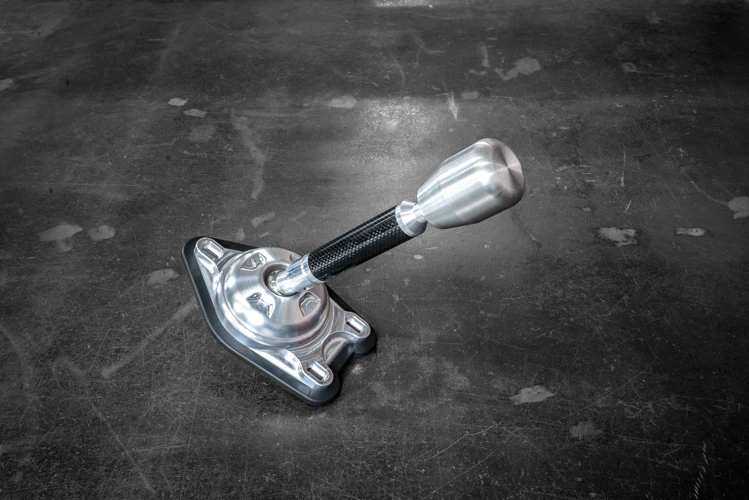

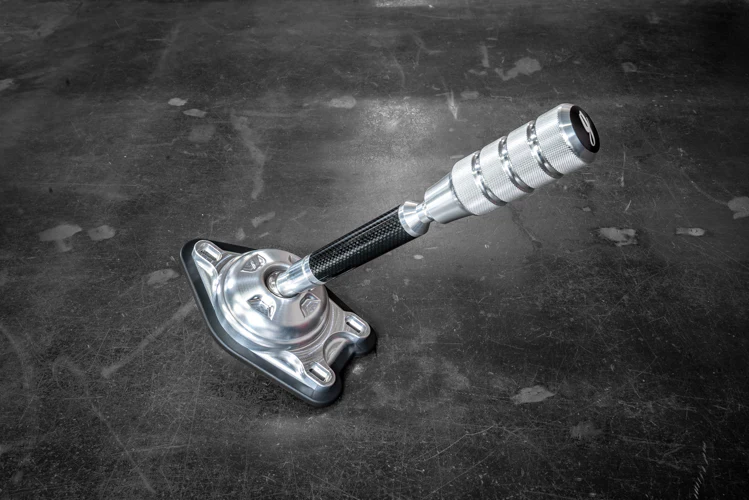

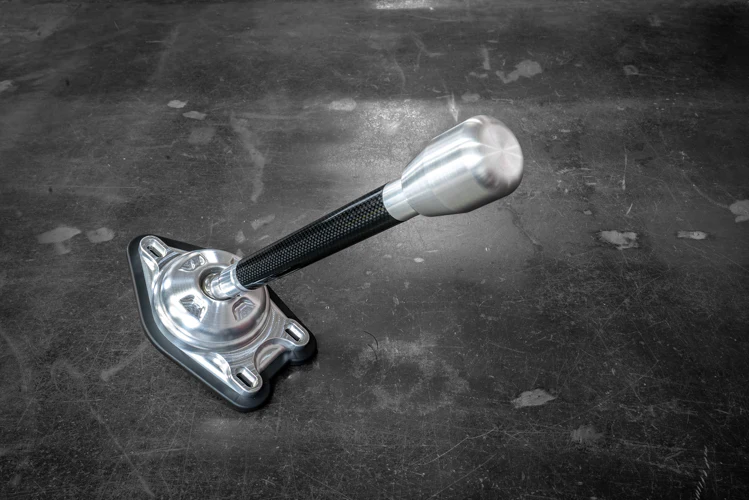

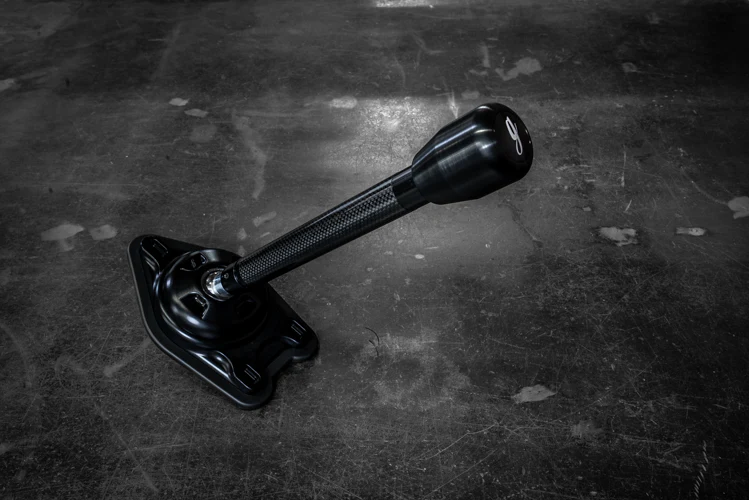

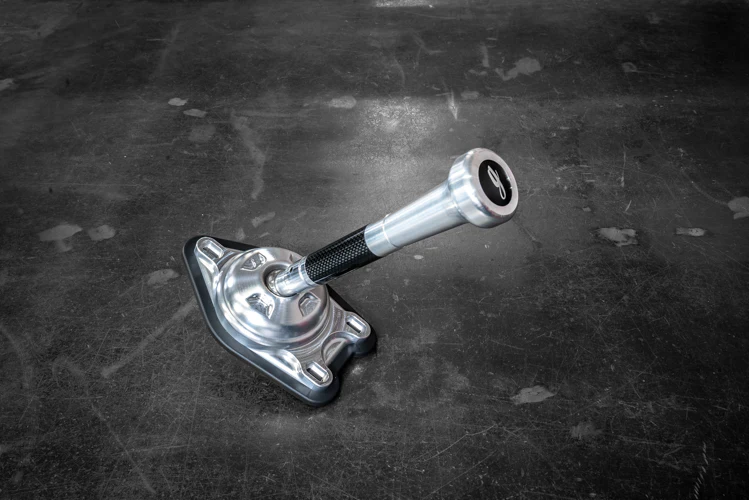

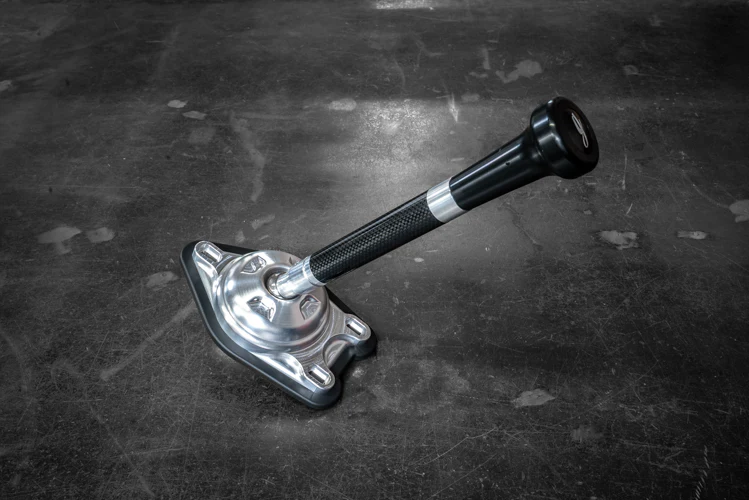

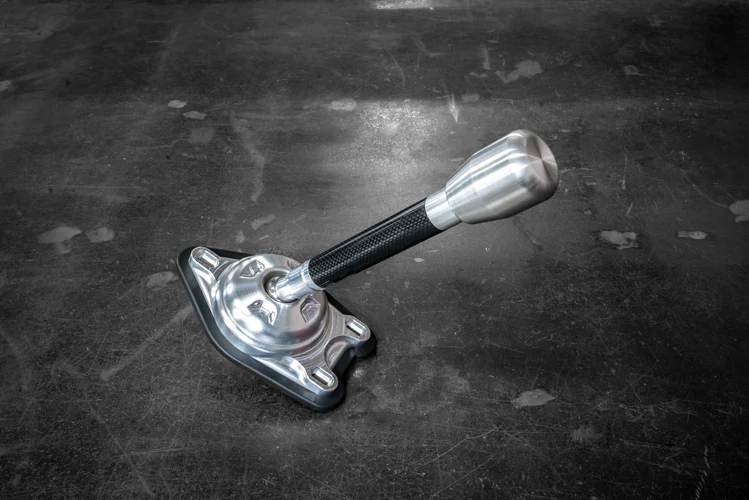

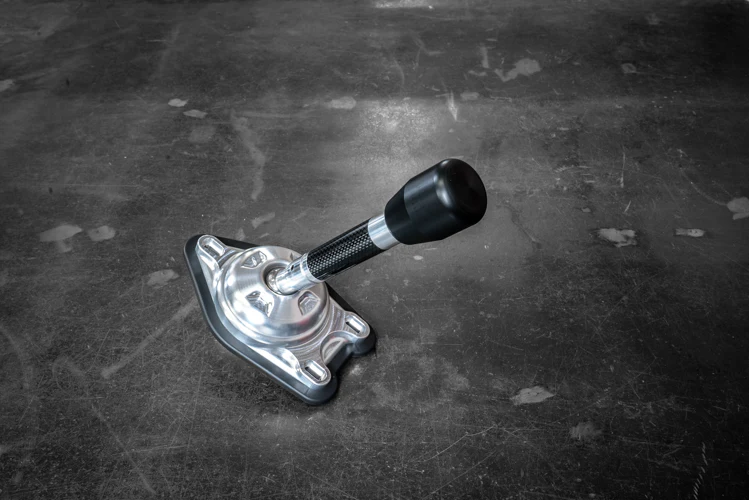

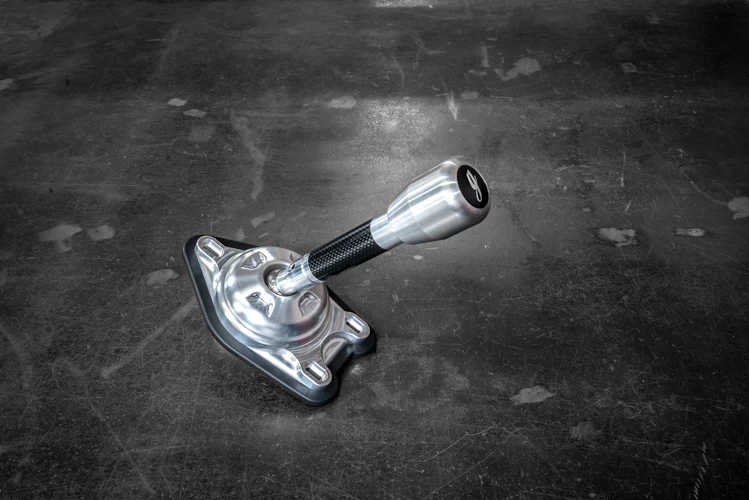

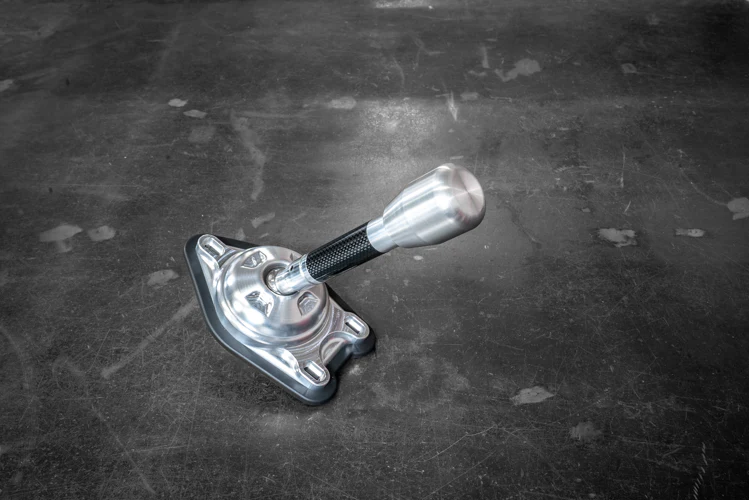

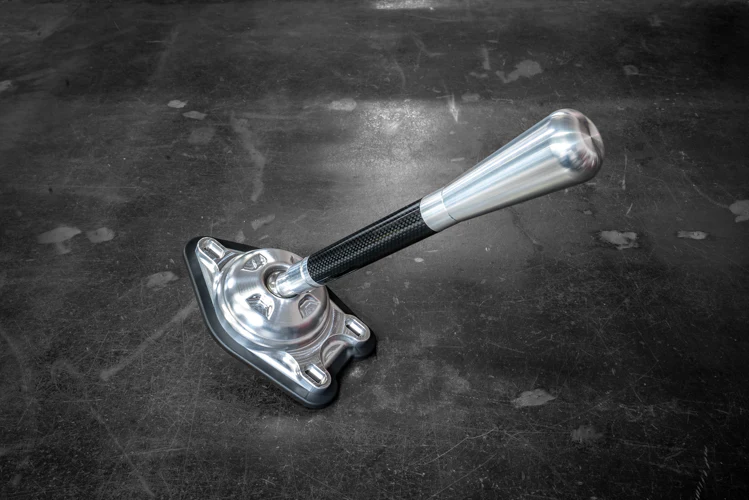

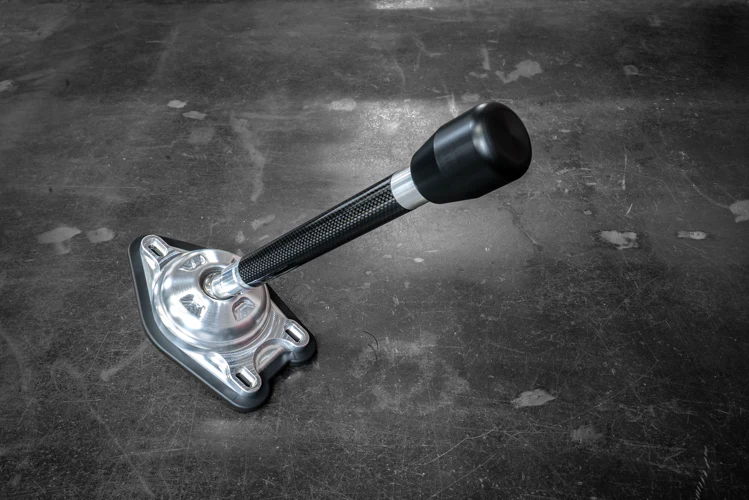

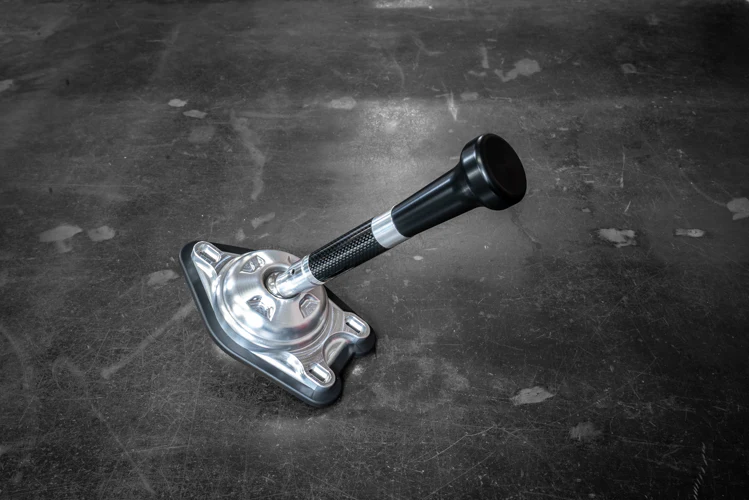

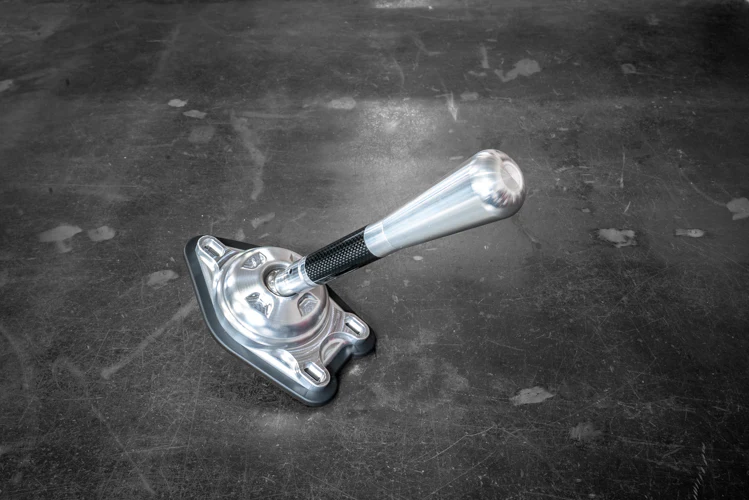

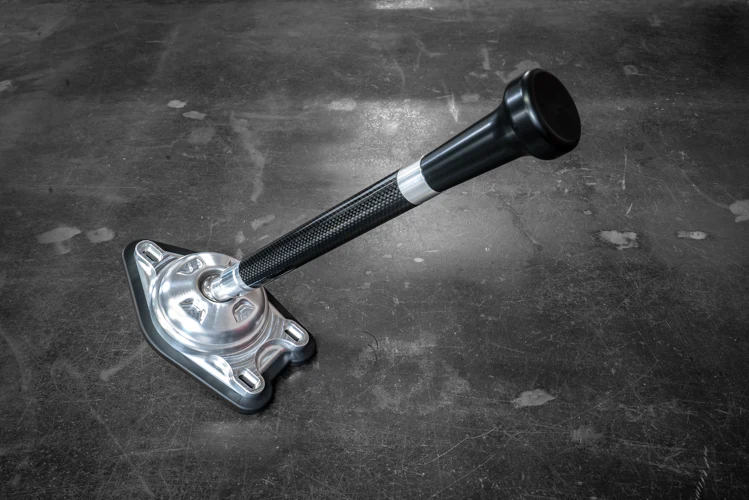

Garagistic Carbon Fiber "Direct Mount" Stage 2 Chassis Short Shifter - E92, E46, E36, E30, E82, Z4, M3

OVERVIEW

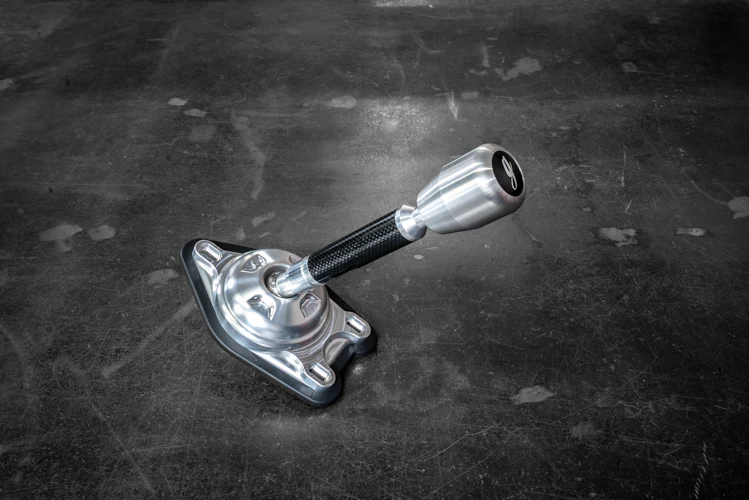

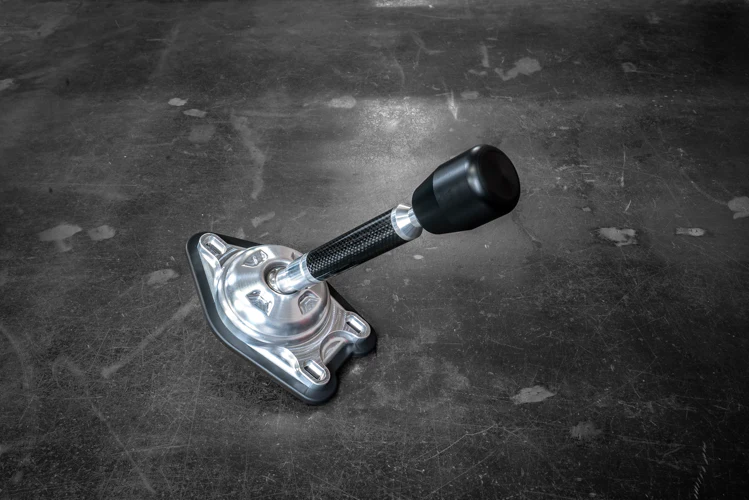

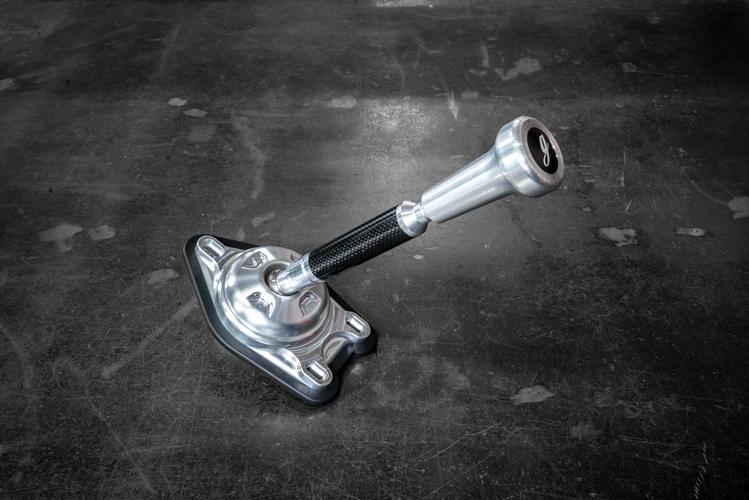

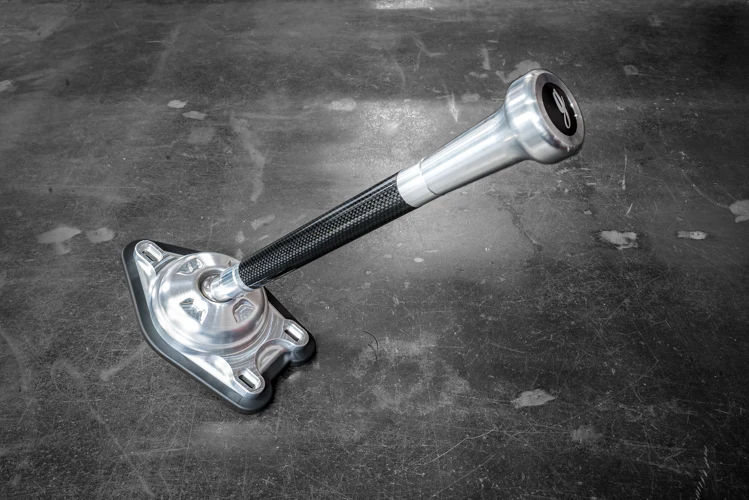

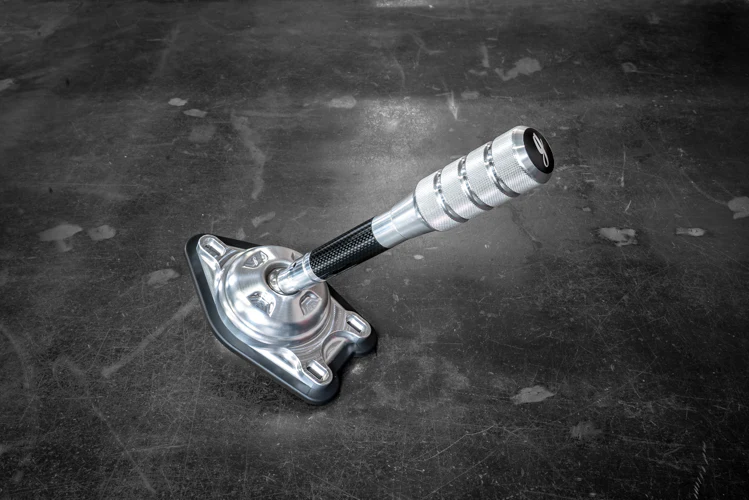

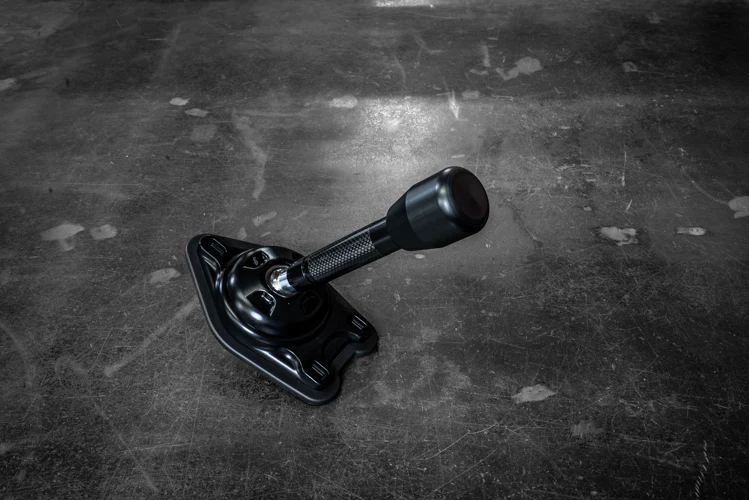

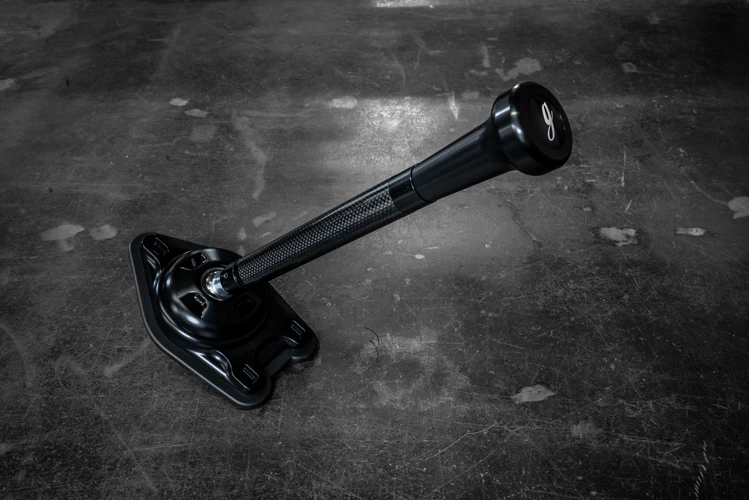

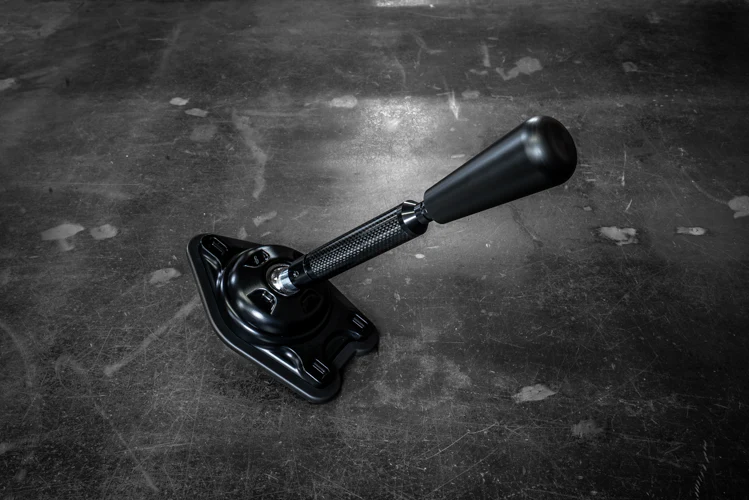

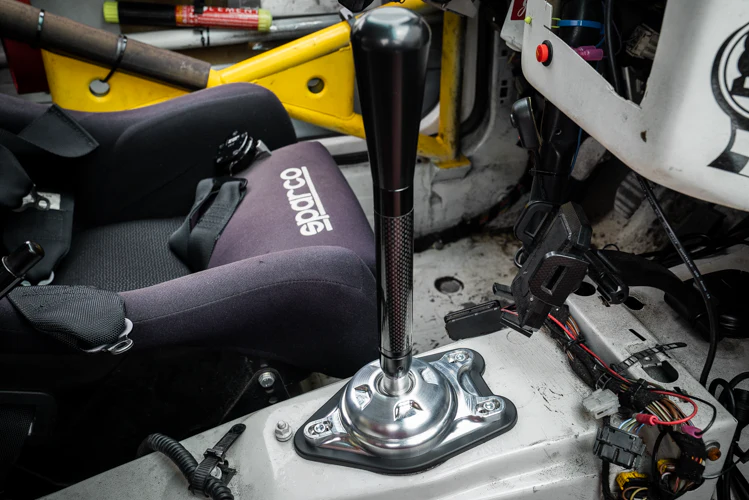

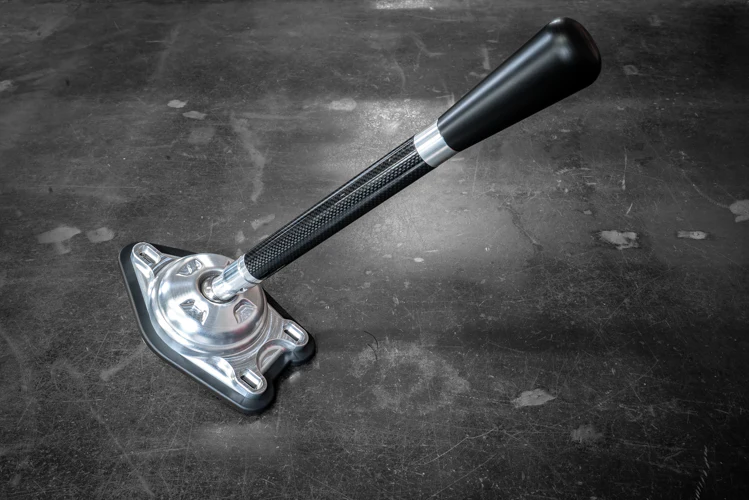

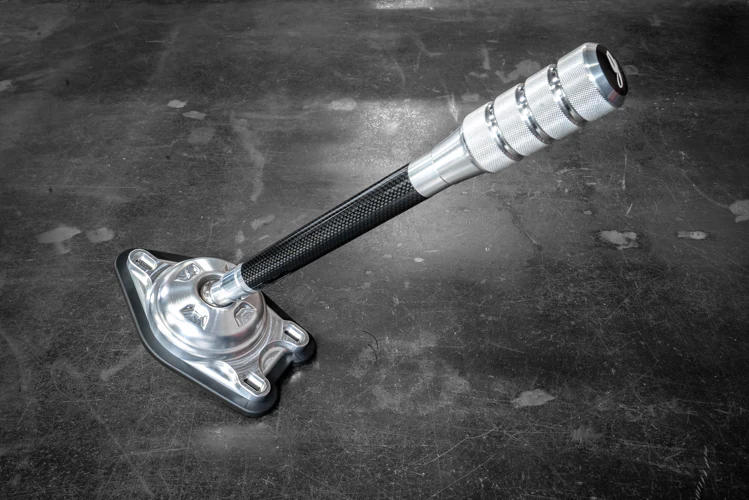

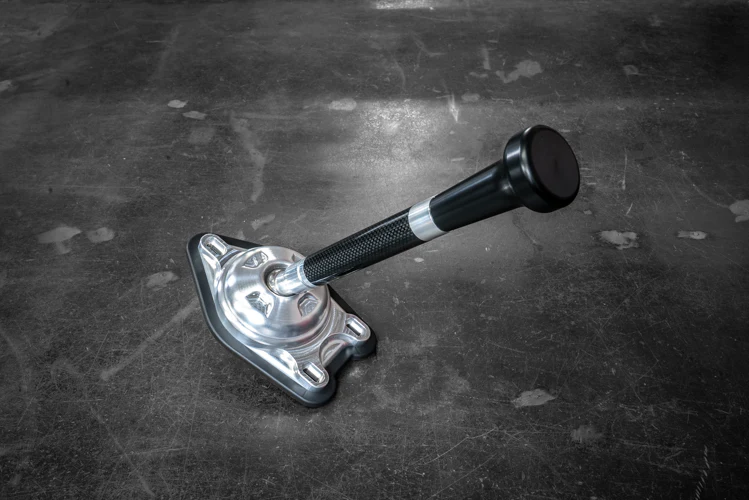

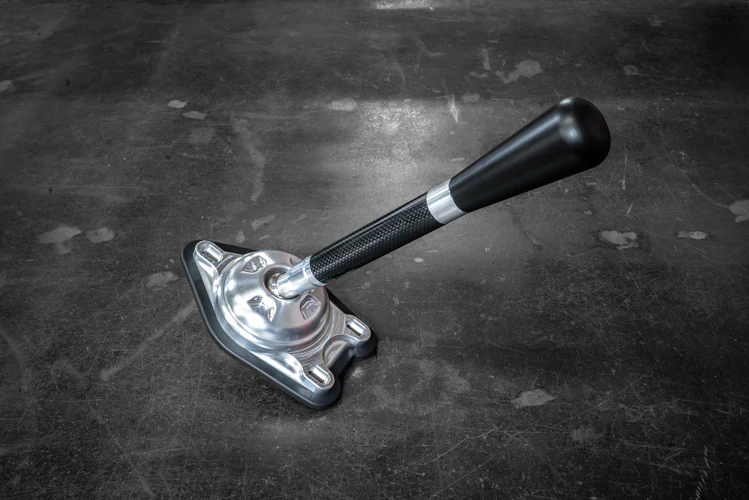

Based on our very popular standard solid mount shifter, this is our Stage 2 Direct Mount" solid shifter with a carbon fiber shifter rod! If you would like this shifter with the standard aluminum rod, see this listing. This solid shifter uses the same components as our standard solid shifter with a few changes in design. The main change is that this solid shifter uses a flat plate direct mount style shifter plate that is required in Chassis like the E92 and E82. Those cars have Oval openings for their shifters. Simply use the 3 existing holes in the chassis for a 100% bolt-up installation that is completely reversible.

The Solid Mount design eliminates the inherent sloppiness of the OEM shifter, giving you complete control over your BMW's transmission. This shifter is also built to last, with a durable and sturdy construction that can handle even the most aggressive driving styles (comes with a lifetime warranty too!) The solid mount design ensures that the shifter stays in place, even under extreme conditions.

This also works for E30s, E36, E46, and most other BMWs. On those cars, you will see 3 small squares stamped in the trans tunnel where you will need to drill 3 holes and use the provided hardware to mount them. For those chassis, this version of our solid shifter is good for cars with damaged transmission tunnels or you want a little more piece of mind that the plate is bolted through the sheet metal of the transmission tunnel.

This solid shifter also comes with the V2 lower dssr connector which has precision bearings to make sure shifting is always silky smooth! Also includes a rubber gasket to make sure there is no corrosion between the sheet metal and solid shifter base!

Keep in mind: This is the only adjustable shifter on the market! You are able to move the pivot on this shifter to your exact preference to adjust the feel and throw!

In summary, the Garagistic Solid Mount Shifter is the perfect upgrade for any BMW enthusiast looking to take their driving experience to the next level. It's easy to install, provides a more direct and precise feeling during gear changes, and is built to last. Upgrade your E82 or E92 with the Solid Mount Shifter today and feel the difference for yourself!

It's a really good idea to change your transmission fluid while you are down there.

Btw if you're unsure how this would look in your car, use the AR model in the photos above to mock up this shifter in your car in real-time!

Want to run a different shift knob with an M10x1.25 or M12x1.25 thread pitch? Then don't forget to purchase this adapter

Why consider this for an E30, E36, or E46 Instead of our standard shifter?

• Shorter throw then the standard unit
• The base plate offers fine adjustment (forward and back)

• Able to lubricate by taking the shift knob off and spraying down to all bearings (Aluminum rods only)
• Held on by more surface area

RECOMMENDED

• Bushings: Chassis shifters must be run with poly or solid upgraded transmission bushings.
• Replace: We highly recommend pairing your chassis shifter with a Garagistic DSSR and Selector Joint to provide the most direct shifting experience possible.
• Shifter Thread Adapters: Adapters available to M10 x 1.25 and M12 x 1.25

SPECIFICATIONS

• Material: Solid Billet aluminum construction
• Shifter Rod Material: Woven Carbon Fiber
• Components: Precision spherical bearing pivot point

FEATURES

• Install: Uses 3 existing holes in E82, and E92 cars.
• Older Chassis Install: In older cars will require drilling 3 small holes). If your car was an automatic, these holes are already there.
• Shifter Rod: Multiple shift stalk heights available (like OEM, Small, Medium, and Tall)
• OEM Style Rod: Available with OEM style slot rod for compatibility with BMW OEM shift knobs (select OEM height option)

• Rod sizes (from end to end):

  • Small = 6in (4.7in from bottom to bottom of the knob threads)
  • OEM = 6in (non-threaded, OEM style push on)
  • Medium = 8in (6.7in from bottom to bottom of the knob threads)
  • Tall = 10in (8.7in from bottom to bottom of the knob threads)
• Shift Knob: Multiple Shift knobs available (Delrin, Aluminum, Standard, Vintage, Knurled, Bat)
• Emblem Recess: Shift knobs available with recess for BMW shift pattern emblem
• Emblem: Anodized aluminum 5-speed shift emblem included with recessed shift knobs (4-speed, 6-speed, and G logo emblems sold separately)

INCLUDED

• Chassis Shifter Base
• Shifter Rod of your choice
• Shift Knob of your choice
• Hardware

FITMENT

Will this shifter fit my car?

• Fits: Fits most BMW chassis such as E30, E36, E46, Z3, E39, E34, and many more
• Does Not Fit: Not compatible with iX AWD MODELS
• The Future is Here: Please check fitment using our AR model!

• E36/E46: Short rod height may be too short in E36/E46 due to the console design. See below for more info.

Fitment Notes

• In general, the longer the rod, the longer the shift throw will be, and the less notchy it will feel. While a shorter rod produces a shorter and more notchy shift throw and feel.
• It is important to note that due to the varying heights of center consoles in different chassis, certain size rods may be too small/large for you.
• For example, the E30 center console is shorter than the E36 center console so a short height shifter rod may be too short in an E36.
• Please Note: Some OEM BMW shifter rods have a very slight tilt, therefore some shifters will also have a slight tilt once installed.

Please leave Year and model in the notes on checkout!

Emblem included with Emblem option
