JZ Idler Pulley Locks
If you're having trouble throwing the accessory drive belt on your JZ, it's probably due to the fact the idler pulley is on a spring that allows it to bounce. We've designed this Idler Pulley Lock to hold the tensioner pulley in place and eliminate the bounce.

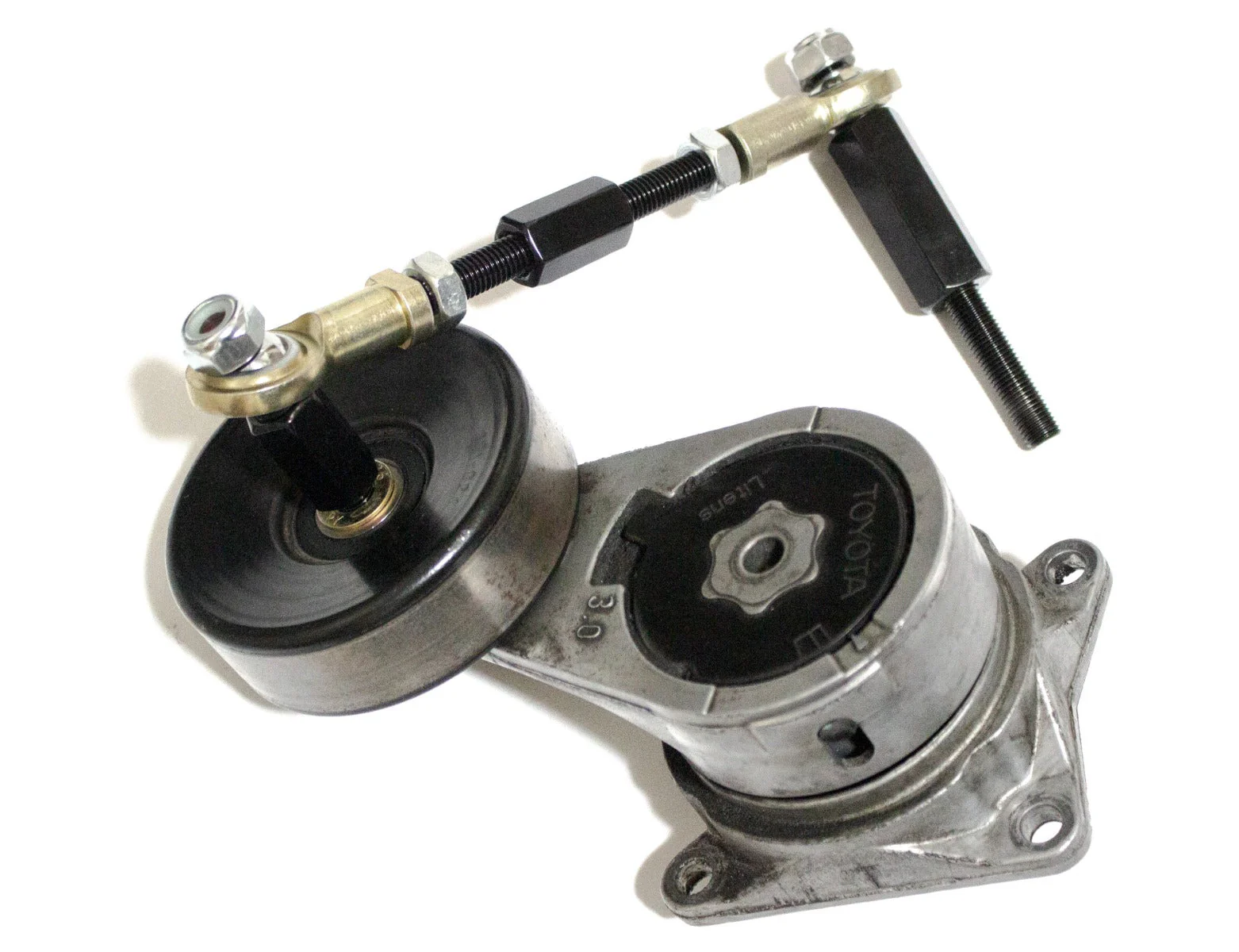

The lock mounts to the existing power steering bracket and idler pulley, so no need to modify anything or add any new brackets to the motor. You just replace two bolts with our stand off's then install your belt using the tensioner as normal so it sets the basic tension, then put the lock on with just a bit more tension. The lock is adjustable to suit a wide variety of belt lengths.
PS pump brace, PS Pump and belt not included
The tensioner is not a turnbuckle style double adjuster, this is intentional to keep from over tightening the belt.
Ā

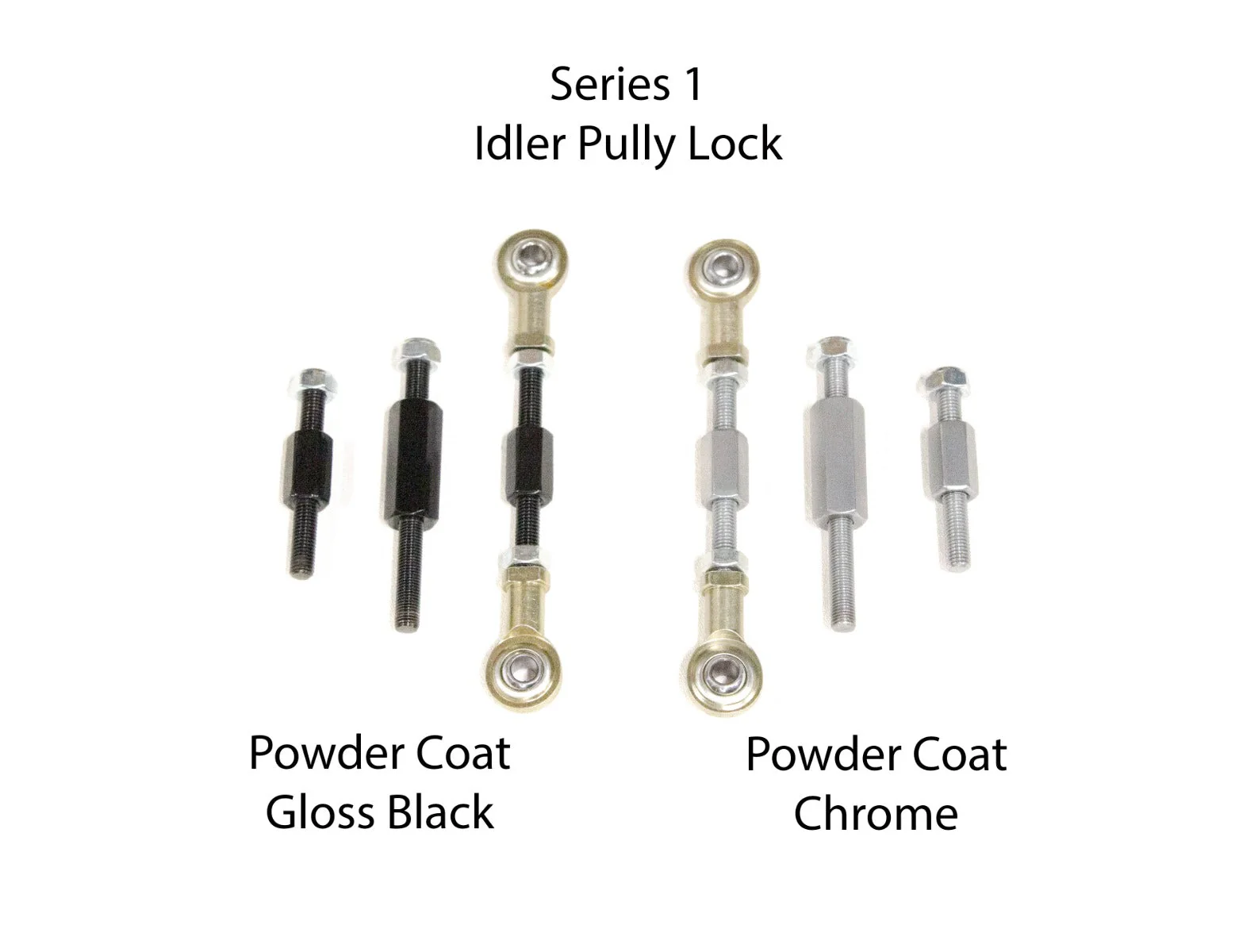

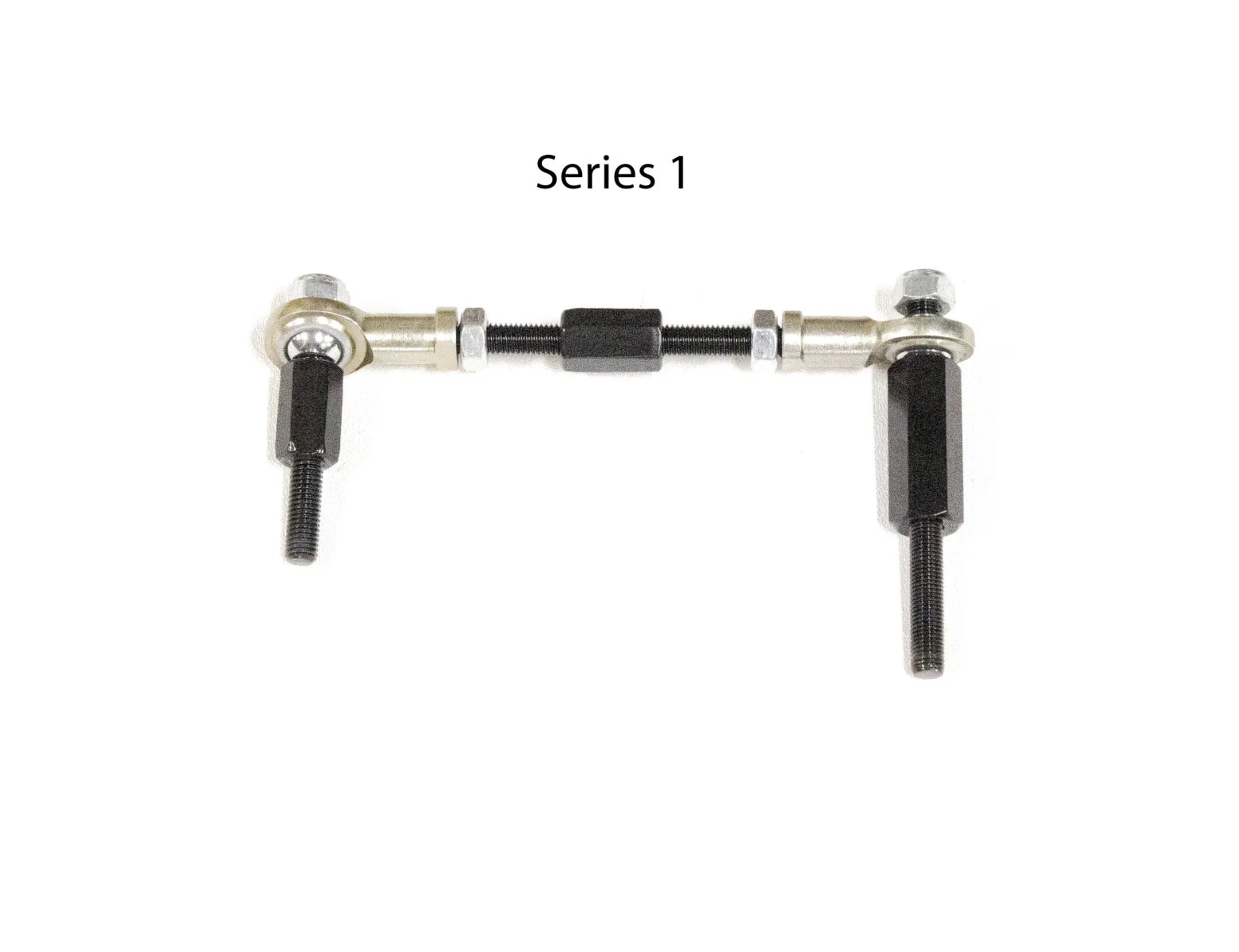

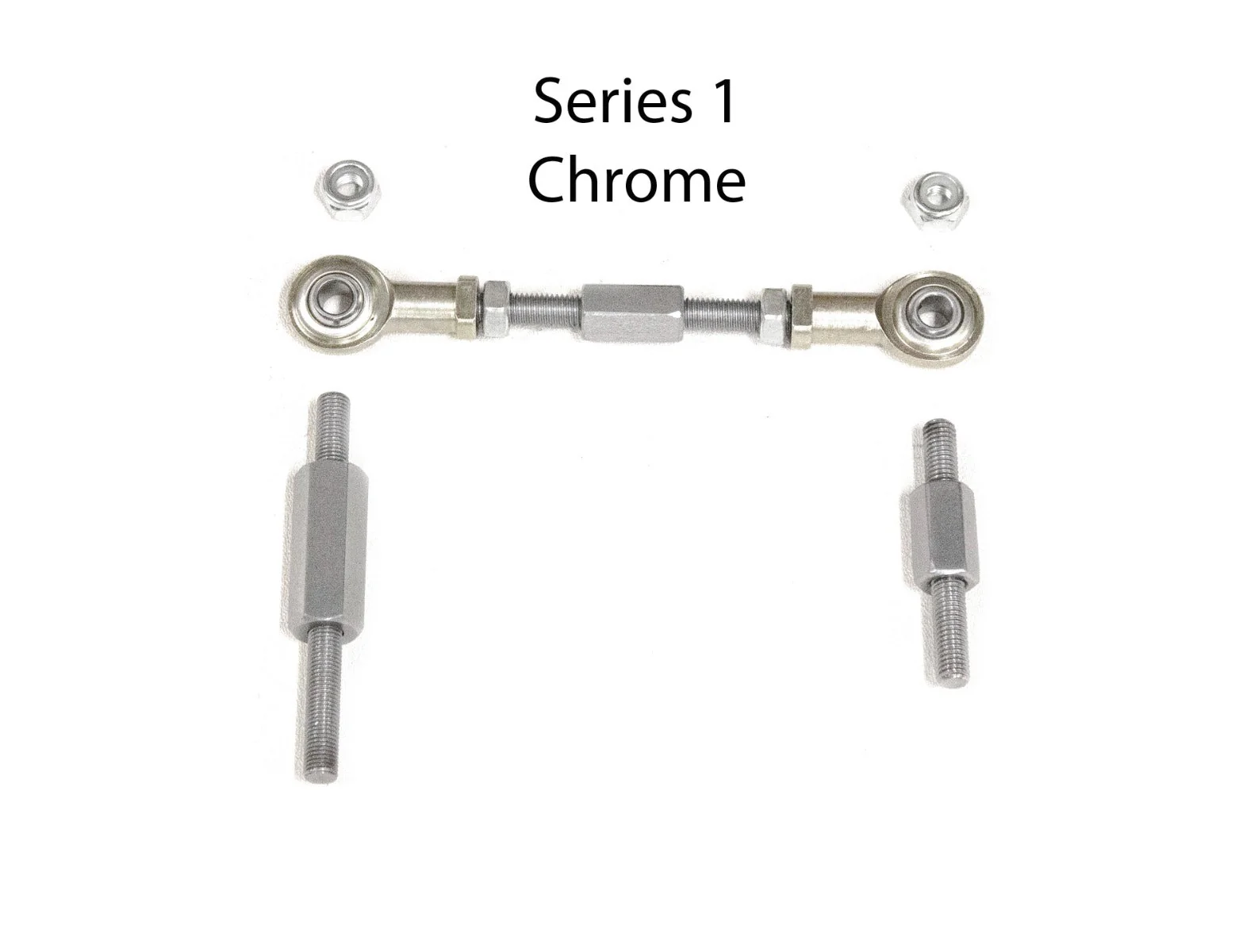

If your JZ tensioner has a steel pulley with a bolt from the front to hold the pulley on and the arm itself is threaded, that tensioner will require the Series 1 lock.

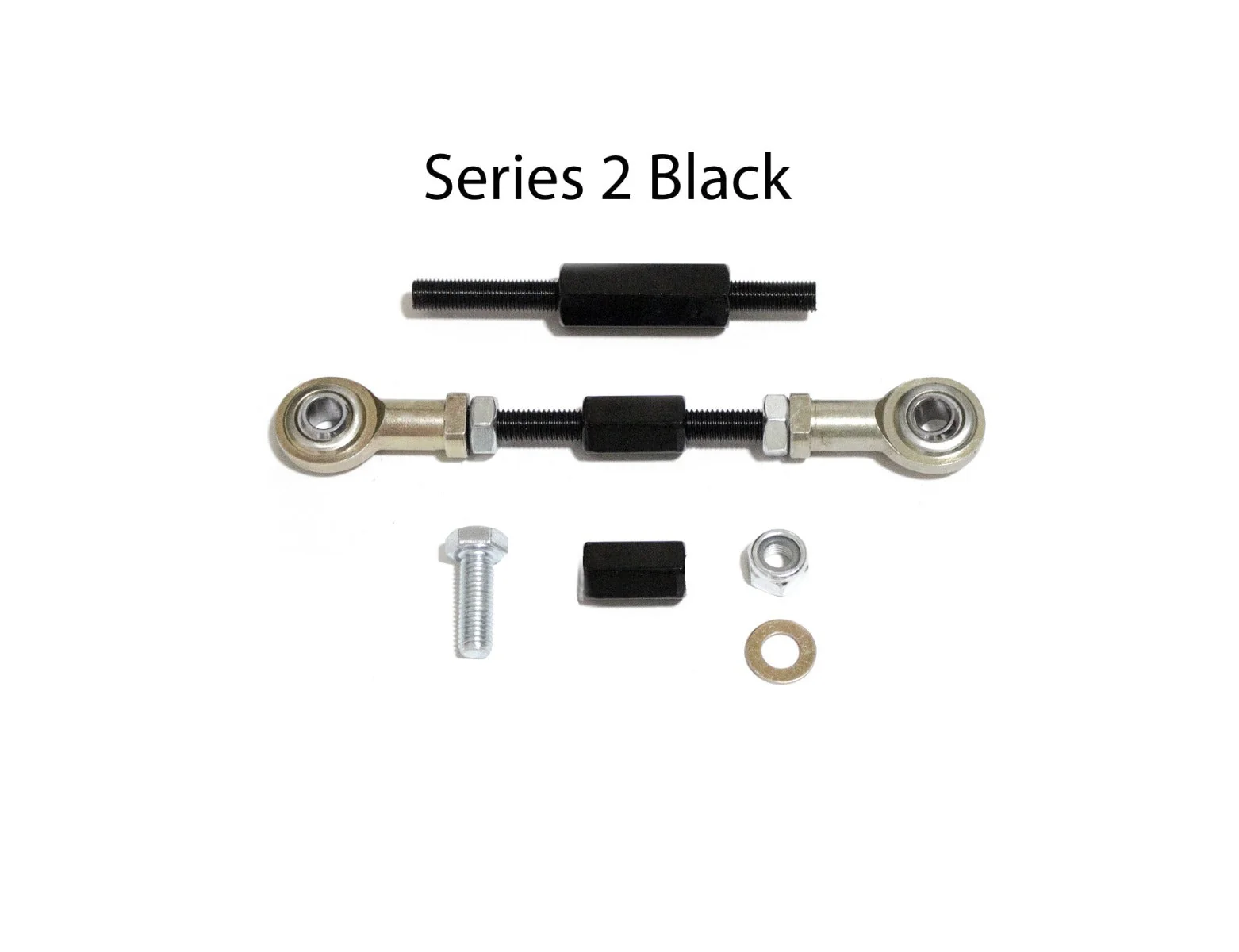

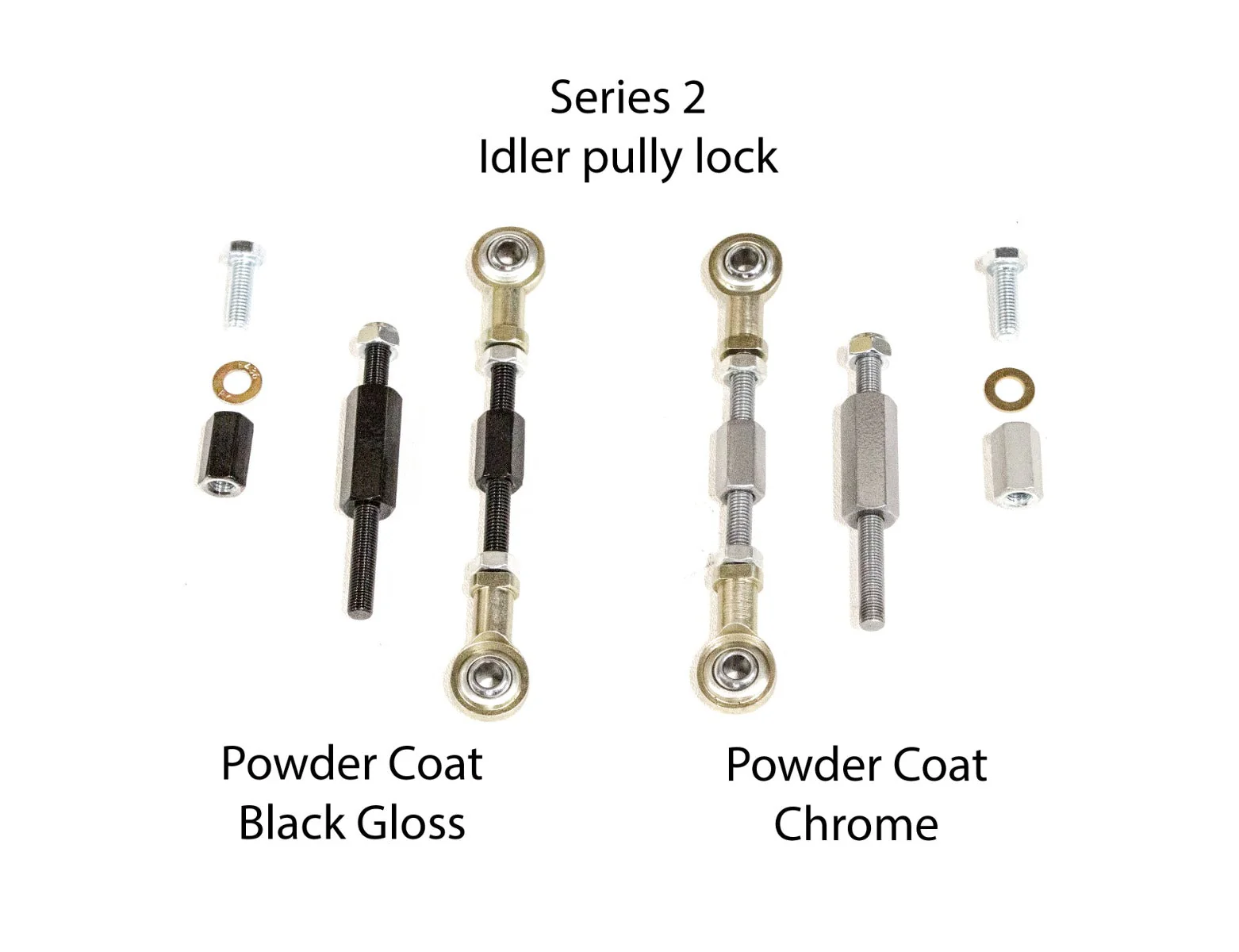

Some VVTi engines have idler pulleys with a bolt and nut from the back that hold the pulley onto the arm, that tensioner will require the Series 2 lock.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
JZ Idler Pulley Locks
JZ Idler Pulley Locks
If you're having trouble throwing the accessory drive belt on your JZ, it's probably due to the fact the idler pulley is on a spring that allows it to bounce. We've designed this Idler Pulley Lock to hold the tensioner pulley in place and eliminate the bounce.
The lock mounts to the existing power steering bracket and idler pulley, so no need to modify anything or add any new brackets to the motor. You just replace two bolts with our stand off's then install your belt using the tensioner as normal so it sets the basic tension, then put the lock on with just a bit more tension. The lock is adjustable to suit a wide variety of belt lengths.
PS pump brace, PS Pump and belt not included
The tensioner is not a turnbuckle style double adjuster, this is intentional to keep from over tightening the belt.
Ā
If your JZ tensioner has a steel pulley with a bolt from the front to hold the pulley on and the arm itself is threaded, that tensioner will require the Series 1 lock.
Some VVTi engines have idler pulleys with a bolt and nut from the back that hold the pulley onto the arm, that tensioner will require the Series 2 lock.
Original: $122.00
-65%$122.00
$42.70Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
If you're having trouble throwing the accessory drive belt on your JZ, it's probably due to the fact the idler pulley is on a spring that allows it to bounce. We've designed this Idler Pulley Lock to hold the tensioner pulley in place and eliminate the bounce.
The lock mounts to the existing power steering bracket and idler pulley, so no need to modify anything or add any new brackets to the motor. You just replace two bolts with our stand off's then install your belt using the tensioner as normal so it sets the basic tension, then put the lock on with just a bit more tension. The lock is adjustable to suit a wide variety of belt lengths.
PS pump brace, PS Pump and belt not included
The tensioner is not a turnbuckle style double adjuster, this is intentional to keep from over tightening the belt.
Ā
If your JZ tensioner has a steel pulley with a bolt from the front to hold the pulley on and the arm itself is threaded, that tensioner will require the Series 1 lock.
Some VVTi engines have idler pulleys with a bolt and nut from the back that hold the pulley onto the arm, that tensioner will require the Series 2 lock.
