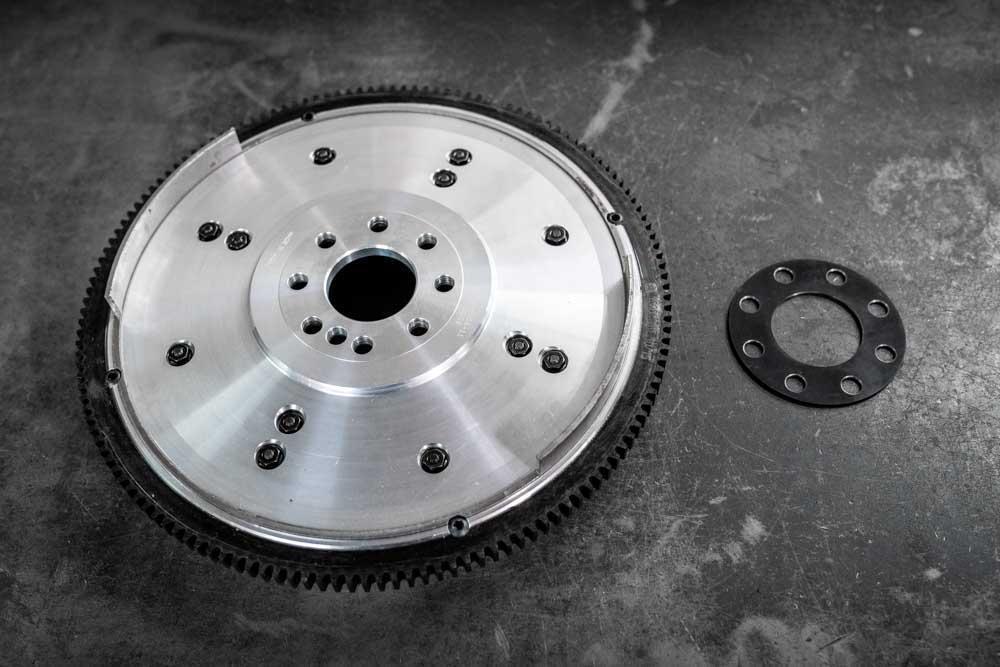

Mercedes Benz 16V Cosworth190E W201.034 14lb Lightweight Flywheel

Overview

Looking to upgrade your 190e flywheel? How about a lightweight version to get those revs up a bit faster? Here you go! We now offer a 14lb lightweight flywheel designed for the W201.034 chassis. Made by Flieben_ca, these flywheels are designed with racing in mind. Please read the details listed below before purchasing!

Details

• Fitment: 2.3-16V 190E
• Design: This flywheel is designed for those doing a dog leg Getrag 5-speed swap. This will also work with other 5-speed manual transmissions that are made for a single mass flywheel (Long input shaft)
• Not Included: The actual flywheel does not include the ring gear. The automatic ring gear (flexplate) will need to be reused and bolted onto the button-style flywheel.
• Hardware: All mounting hardware is included.

• Clutch: Use a 228mm clutch off a w201 2.6 or 2.3-16.

Installation Note (Very Important):

Please make sure to install the crack position sensor with its OEM washer. The CPS washer acts as a spacer and is needed to achieve the correct CPS position. Failing to install the crank position sensor washer, will cause the flywheel to eat away and destroy the CPS!

Included in Purchase

• 7lb button-style flywheel
• Torque plate
• Crank bolts
• Pressure plate bolts

• Flex plate bolt and washers.

Suggested clutch

Use a 228mm clutch off a w201 2.6 or 2.3-16.

Dont Forget your clutch!
