MERCEDES BRASS BRAKE CALIPER GUIDE BUSHING KIT (ATE Calipers)

Overview

WHAT ARE BRASS ATE CALIPER GUIDE BUSHINGS?

Upgrade your Mercedes’ braking performance with our Brass Caliper Guide Bushing Kit, engineered specifically for ATE calipers. If you're experiencing uneven brake pad wear, a spongy pedal feel, or inconsistent braking, worn-out OEM rubber guide pin bushings are likely the culprit. Over time, these rubber bushings allow calipers to flex under pressure, compromising braking efficiency and reducing pad lifespan.

Our precision-machined brass bushings eliminate caliper deflection, ensuring even pressure distribution across the rotor—just like high-end multi-piston brake systems. The result? A firmer, more responsive pedal feel and significantly extended pad life—perfect for track days, autocross, and spirited driving.

For added durability, our extended kit includes dust caps to protect the sliders from dirt and debris, ensuring long-lasting performance in all conditions.

Designed as a direct fit for the front or rear ATE calipers on many Mercedes models, this kit is the ultimate upgrade for consistent, high-performance braking. For the best results, we recommend upgrading both front and rear calipers if your vehicle is equipped with ATE calipers on both axles.

• IMPORTANT: Check nemigaparts.com to confirm fitment with your specific Mercedes model!

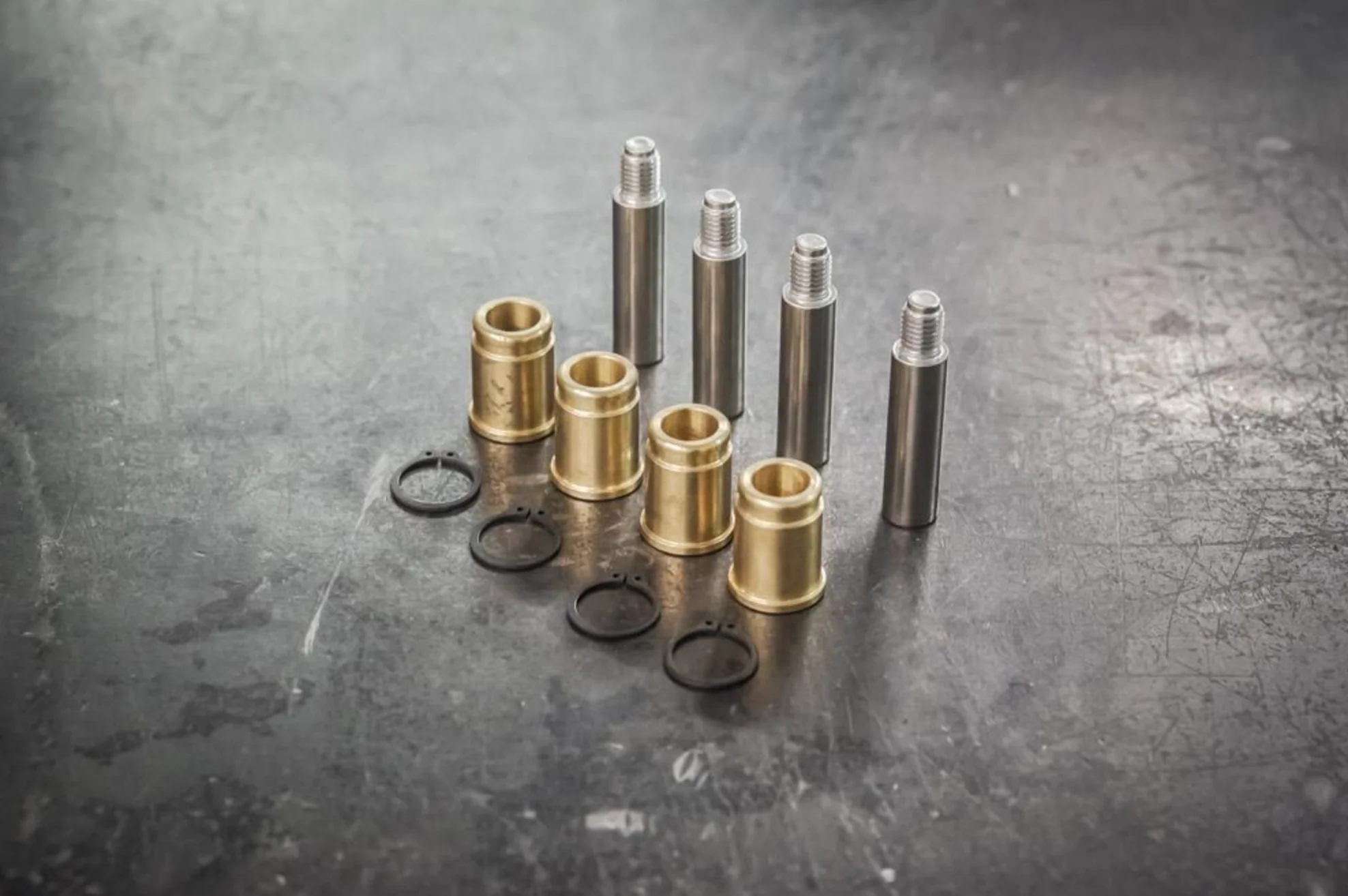

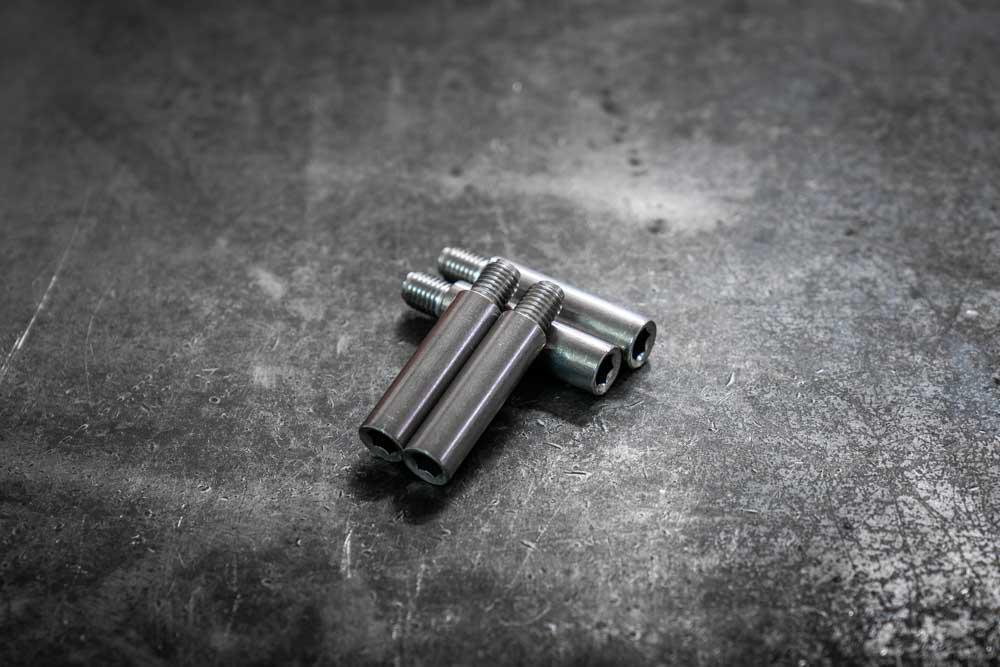

Please Note: WE HIGHLY RECOMMEND ALSO PURCHASING SLIDER PINS. OUR BUSHINGS ARE DESIGNED TO BE USED WITH ATE MADE PINS. PINS FROM OTHER MANUFACTURERS MAY NOT FIT, ALSO WORNOUT OR WARPED PINS HAVE BEEN KNOWN TO CAUSE INSTALLATION ISSUES.

Features

• Design: Eliminates caliper twisting caused by worn rubber bushings
• Feature: Includes dust caps to protect sliders from dirt and debris
• Feel: Improves brake pedal consistency and feel
• Improvement: Extends the longevity and performance of the braking system
• Use-Factor: Ideal for track, autocross, or spirited street driving


Specifications

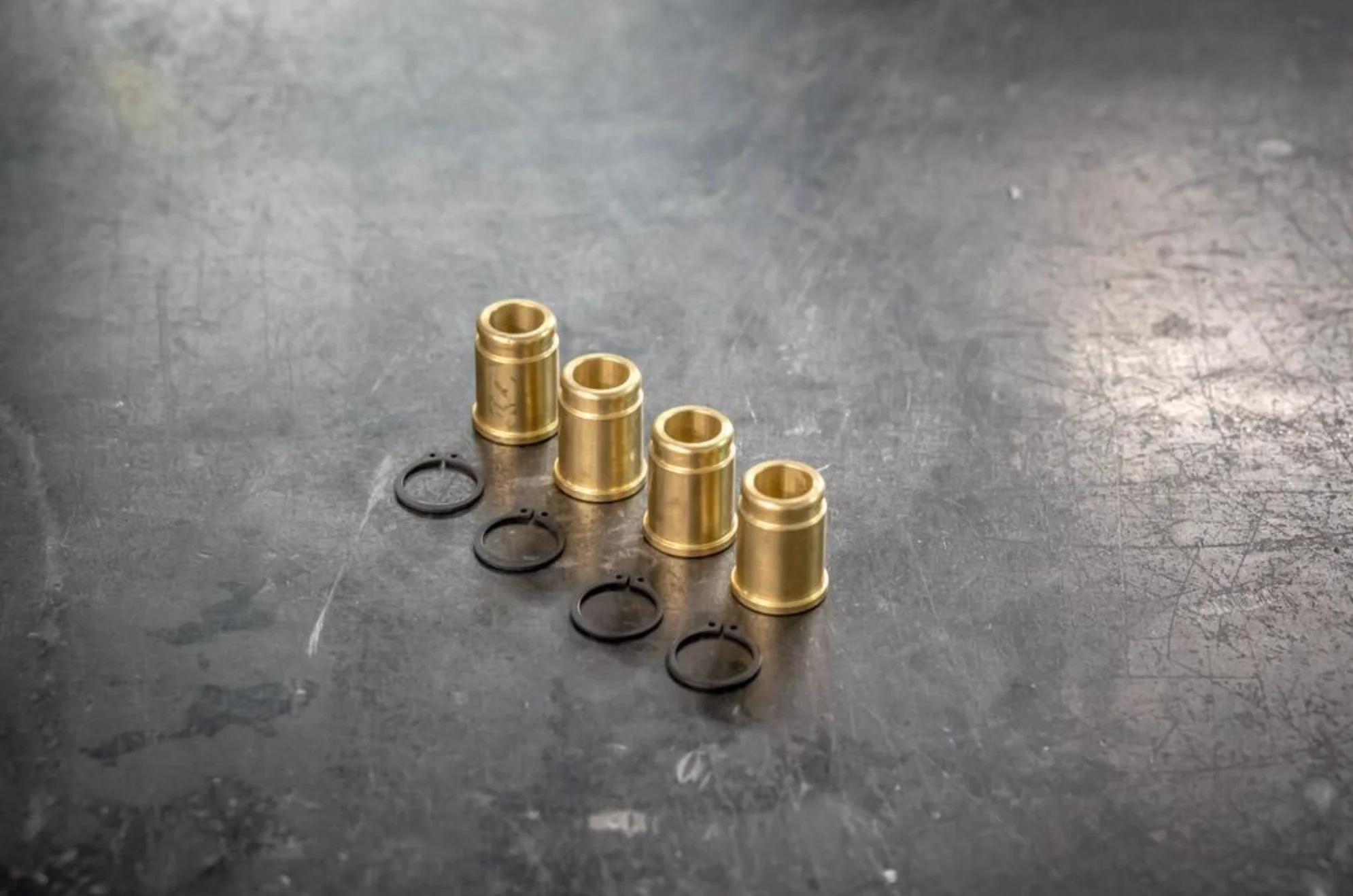

• Manufacturing: Precision-machined brass bushings
• Material: Brass
• Compatibility: Compatible with front and rear factory sliding single calipers made by ATE
• Included: Set of four; enough to do 2 calipers.
  • If you're doing BOTH front and rear, order 2 kits.
• Maintainance: We recommend periodic lubrication to ensure longevity.

Fitment

IMPORTANT: Check nemigaparts.com to confirm fitment with your car!

• Fits: Mercedes ATE calipers
• Direct Replacement for Mercedes PN A 000 420 00 76
• Please Note: Check nemigaparts.com to confirm fitment with your car!
• Compatible with the following: (Check that you have ATE calipers FIRST)

  • Mercedes C-Class: A205, W202, S202, W204, S204, C204, W205, S205, C205

  • Mercedes E-Class:  VF211, VF210, W210, S210, W211, S211, W212, C207, S212, A207

  • Mercedes GLK-Class: X204

Instructions

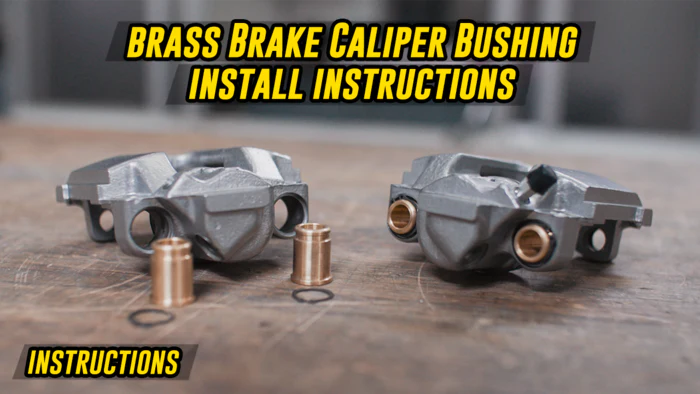

Brass ATE Caliper Guide Pin Bushing Instructions

Decided to upgrade to Brass ATE Caliper Pin Bushings? Good idea! You'll be getting more even and consistent brake pad wear compared to the old stock, worn rubber pin bushings as well as better braking response because these bushings will eliminate the ‚flex‚ or ‚play‚ the stock worn rubber bushings provide. Since these bushings make the caliper evenly squeeze both brake pads together, that means more stopping power! But as opposed to rubber bushings these brass bushings do need to stay lubricated (greased) to work at their full potential.



Let's get started.

• Step 1: Remove your wheel from the side you are working on. Next, remove your caliper spring with a flathead screwdriver. Next, remove the two caliper guide pins on the back side of your caliper.
• Step 2: Now that you have the caliper free remove your brake pads. Then support the caliper safely so it does not hang from the brake line. Then using a flat head screwdriver, remove the old rubber caliper bushings. Now would be a good time to clean out the holes where the old bushings used to sit.
• Step 3: Next lubricate your bushing with preferably high-temperature grease and slide in your new brass bushing, the lip part should be on the inside of the caliper, then attach your clip at the end of it. Your clip should be on the outside.
• Step 4: Then make sure to lubricate your guide pins as well before inserting them into the caliper. Then remount your caliper and brake pads. Lastly, check the torque specifications on the guide pins for your certain vehicle as over-tightening can cause the pins to snap or bind.

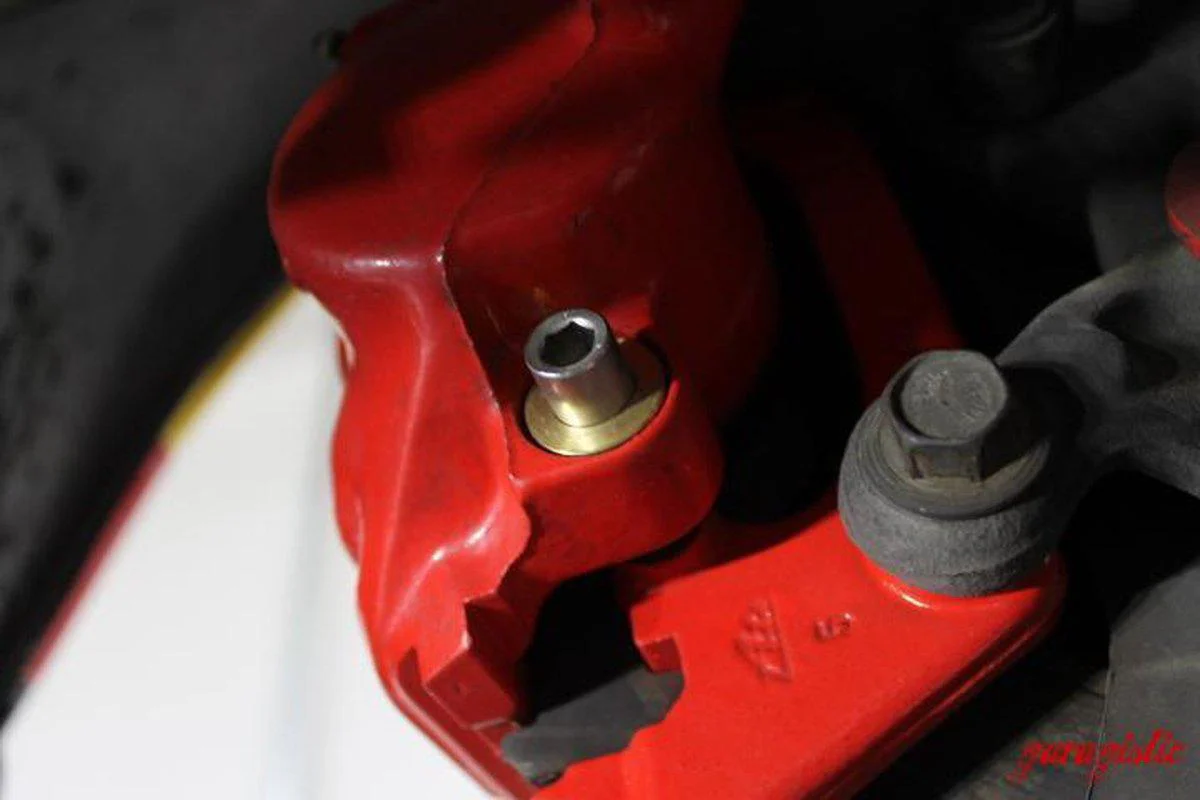

• Step 5: Finally press the the dust cap firmly to the end of the bushing until it fully seats against the raised lip. Now you're all done!



Disclaimer

This instructional guide is intended to provide general information only. We recommend a professional automotive technician install any of our products. In no event shall Garagistic be liable for any special, direct, indirect, consequential, incidental injuries or damages whatsoever.
