SERIALNINE - 409R 1JZ VVT-I BOLT ON TURBO UPGRADE
SERIALNINE 409R Bolt-On Turbo Power Meets Precision
Unlock serious horsepower with the SERIALNINE 409R Bolt-On Turbo! Engineered for drivers who demand both Response and Power. This turbo provides a substantial upgrade over stock with enhanced power, a large torque curve and minimal lag for noticeable gains on both the street and track. With advanced materials and a dual ball-bearing designed in collaboration Spectrum Motorsports Solutions, the 409R balances cutting-edge technology with the convenience of a straightforward, stock-location fitment. Itās ideal for intermediate-level builds, delivering reliable power while looking to maintain a hassle-free fitment.
Performance Stats with Supporting Mods

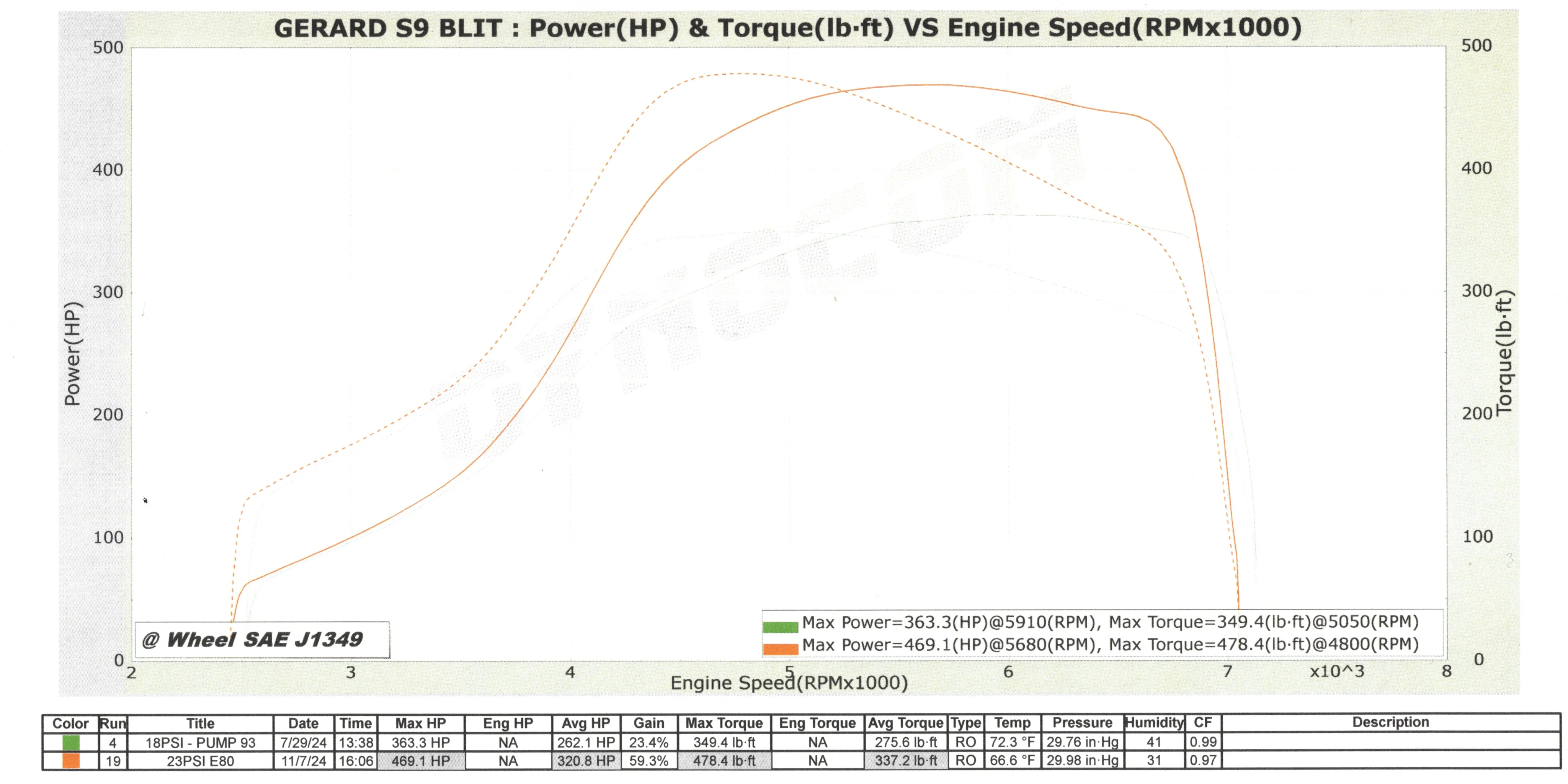

- 363 whp/ 349 lb-ft torque @ 18 lbs of boost on pump gas
- 469 whp/ 478 lb-ft torque @ 24 lbs of boost on E85**
**1 Year limited Warranty if kept under 22LBS of boost**
The 409R is perfect for those looking to elevate their driving experience without compromising on appearance or reliability. Experience the blend of power and precision with the SERIALNINE 409R Bolt-On Turbo because real performance is in the details.
**The 409 is not a direct bolt in replacement for the stock turbo.Ā
It bolts directly to the stock exhaust manifold and stock downpipe.Ā
You will be eliminating the factory J Pipe, factory intake, and the MAF.Ā Ā
You will need to be running an aftermarket ECU.**
Key Features:
-Billet Compressor Wheel: Lightweight and durable, the billet wheel enhances spool and boosts efficiency.

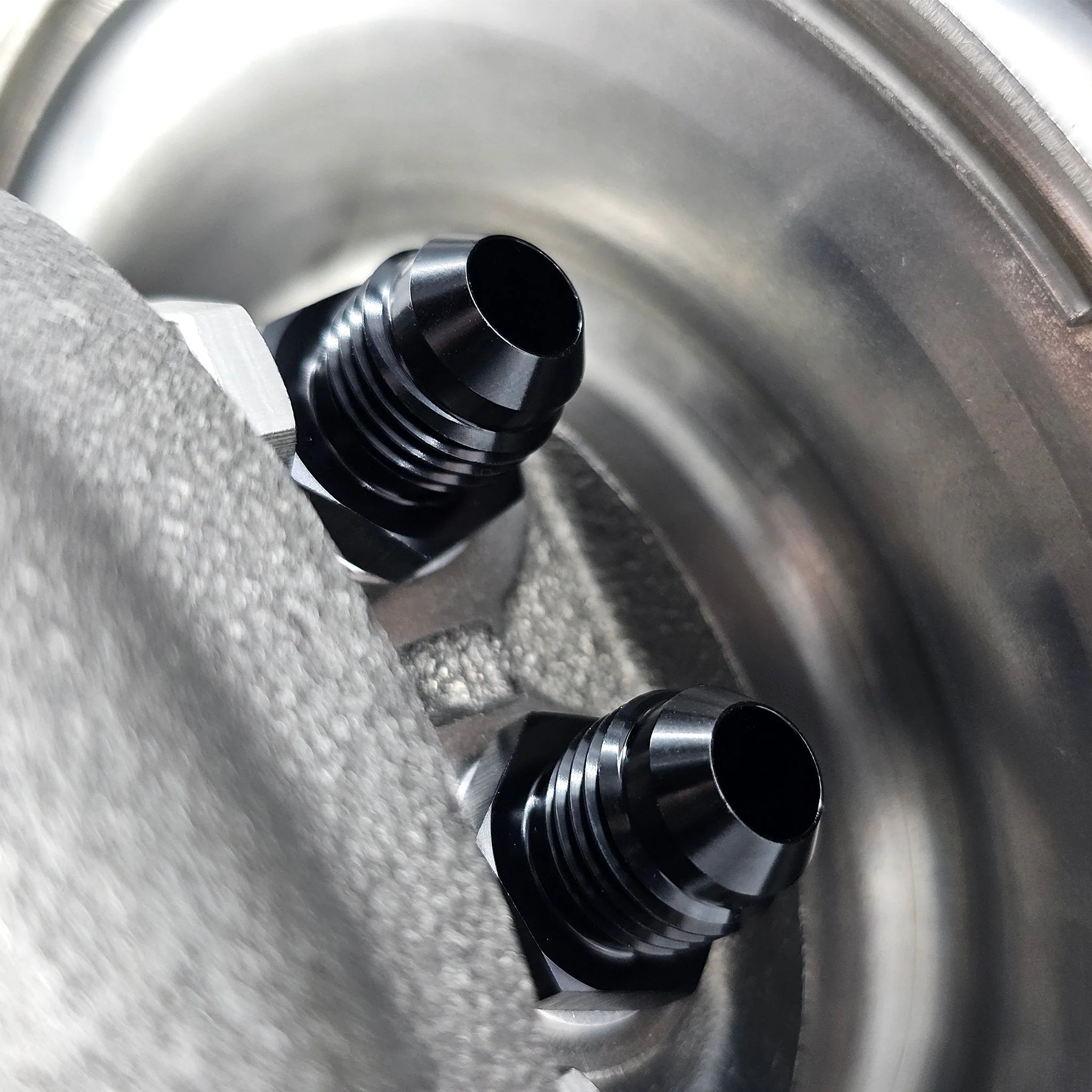

-Dual Ball Bearing, Water-Cooled CHRA: Reduces friction and enhances turbo longevity, with cooling for consistent performance in the Centre Housing Rotating Assembly

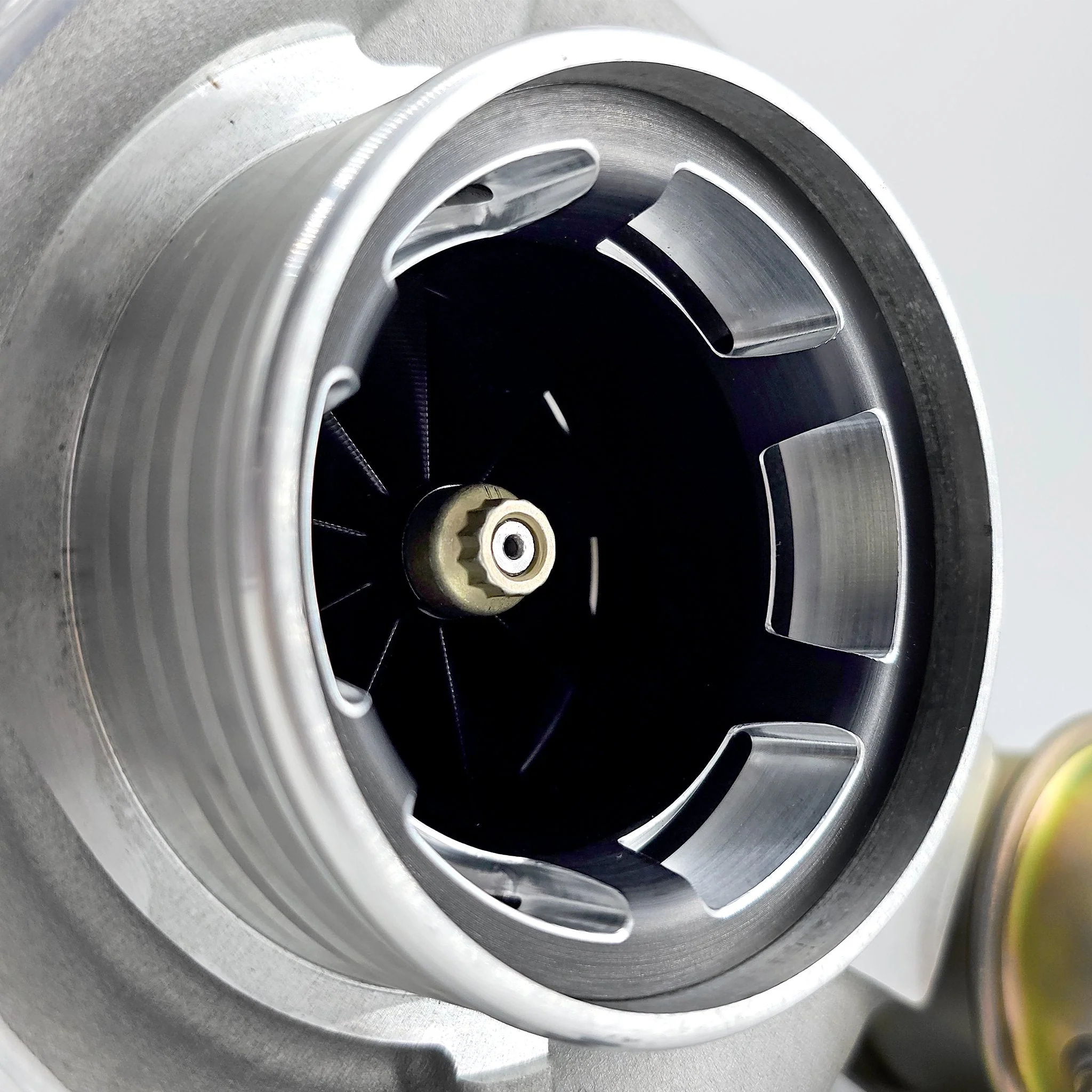

-Anti-Surge Insert: Reduces compressor surge, Improving stability, drivability and sound.
-Stock Fitment: An easy, bolt-on package that keeps installation straightforward with no need for extensive modifications. Uses stock manifold or any aftermarket stock replacement.

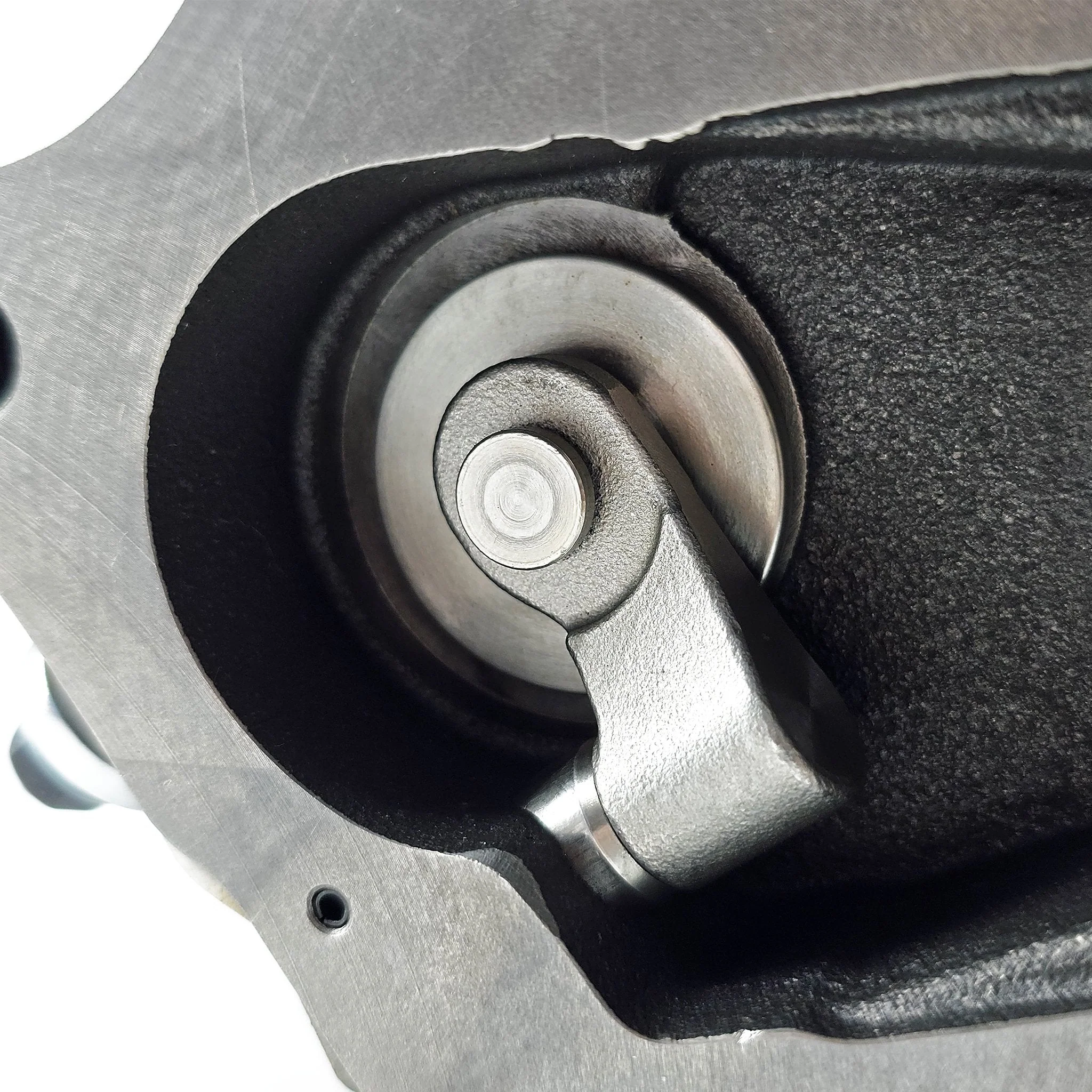

- Internal Wastegate with enlarged port with 1 BAR (14lbs) Actuator: Controls boost levels smoothly, keeping the setup tidy in the engine bay
- * STANDALONE ECU STRONGLY RECOMMENDED *
Performance Specs:
- Compressor: 54mm inducer / 68mm exducer with a ported shroud for optimized airflow and surge protection.
- Turbine: 60mm inducer / 55mm exducer, designed to fit stock housing and achieve fast spooling.
- Boost Response: Hits 15 lbs of boost by 4000 RPM for strong midrange torque and quick response. AT 25lbs of boost this turbo has insane response over 4000 RPM
INDLUDES:
1 x SERIALNINE 409R Turbo for 1JZ VVT-i
1 x 3" Intake kit w/ Filter, Coupler & Clamps
1 x 2.5" Hot Pipe Connector w/ Coupler, Clamps
1 x Intake Air Control Valve Air Line
1 x Valve Cover Breather Line
1 x AN Oil Line Installation kit ( Feed and Drain )Ā
1 x AN Water Line Installation kit ( Feed and Drain )Ā
FITMENT:
1996-2000 Toyota Mark II / Chaser / CrestaĀ ( JZX100 Only )
2000-2004 Mark II / Verossa / Blit ( JZX110 Only )
1999ā2003 Crown Athlete V ( JZS171 Only )
1996ā2000 Toyota Soarer Late Model ( JZZ30 VVT-i Only )
Ā
