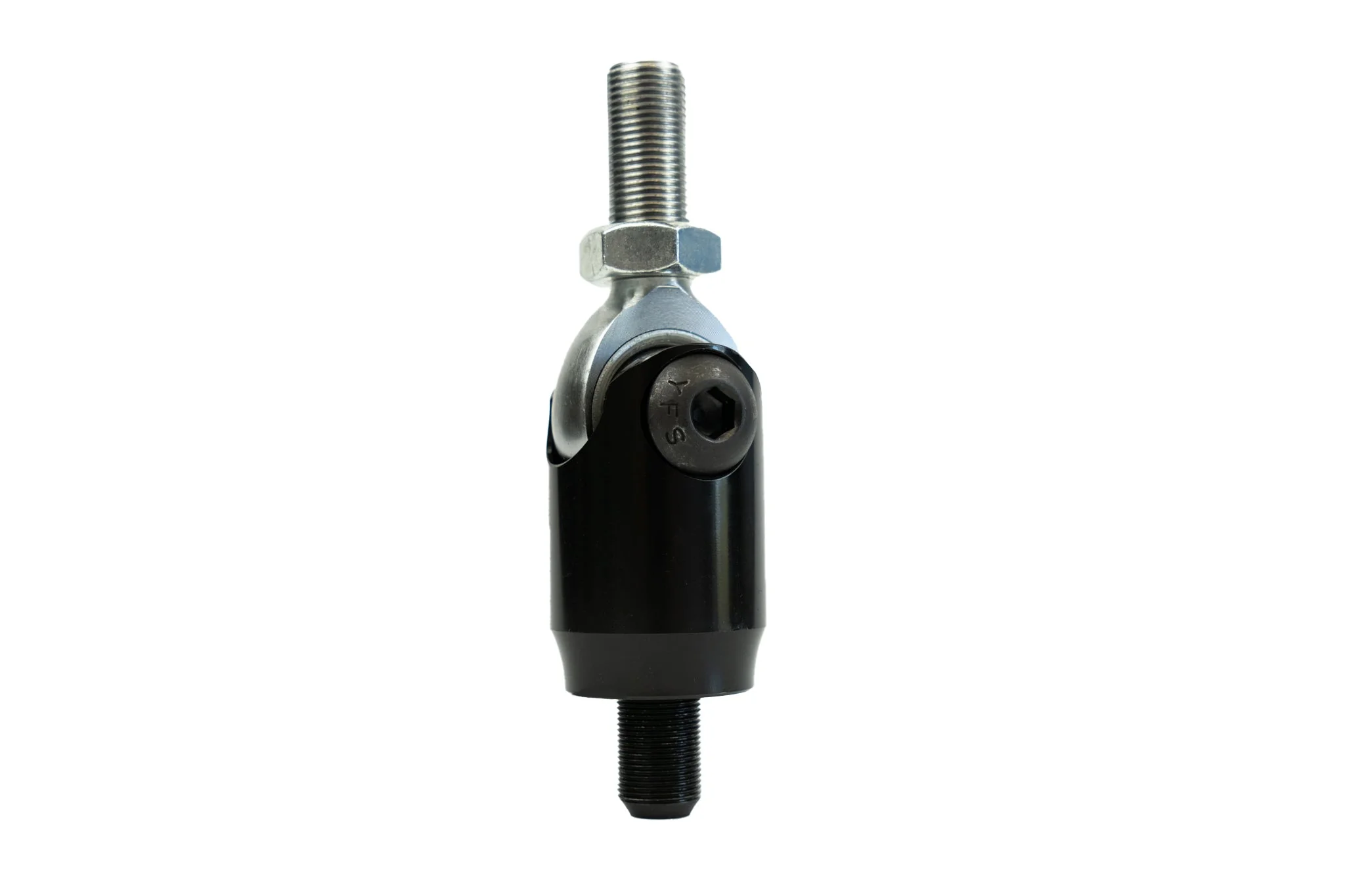

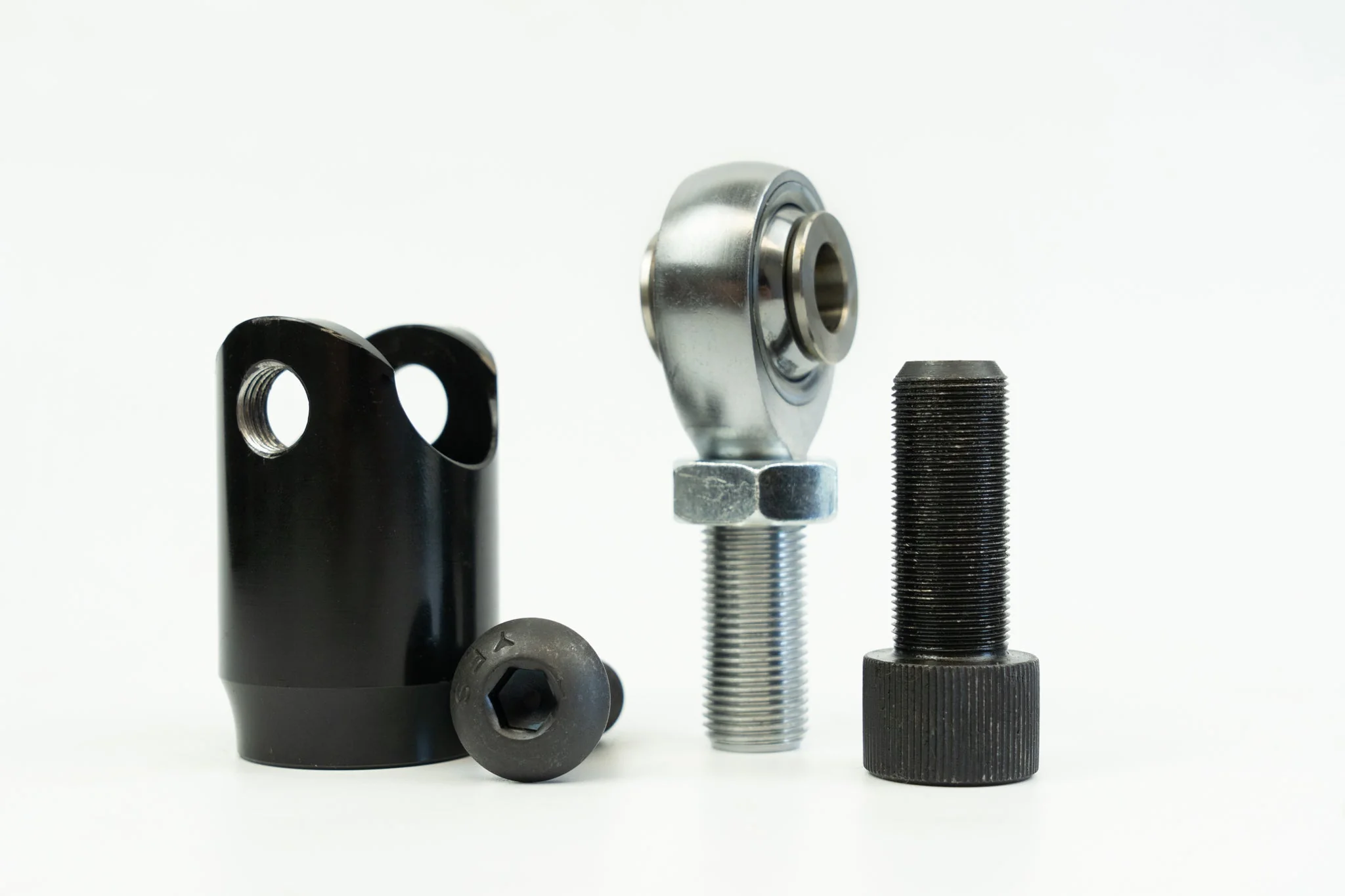

The FDF inline rack adaptor is the ideal solution for your tie rod setup, this product consists of 2 billet shackles that bolt to your steering rack and allow for a 5/8-18 rod end to be used as the inner ball joint.

Key Features:

• Tie Rod: Replaces socket style tie rod with a double shear Heim joint design, this is both easier to service and lasts much longer through heavy abuse.
• Shackle: Takes all the abuse you can throw at your car. Machined from a billet piece of Chromoly and electro-plated.
• Sizing: Fits a 5/8-18 rod end to be used as the inner ball joint.

Rack Bolt Sizing:

BMW E80/E90: M18 X 1.5 X 35MM

BMW E36/E46: M18 X 1.5 X 35MM

MAZDA RX7: M14 X 1.5 X 40MM

GENESIS COUPE: M16 X 1.5

HONDA S2000: M16 X 1.5

SUBARU BRZ/FRS: M16 X 1.5 X 40MM

SUBARU IMPREZA: M16 X 1.5

SUPRA / SOARER: M14 X 1.5 X 40MM

NISSAN S-CHASSIS: M16 X 1.0 X 40MM

NISSAN 350/G35: M16 X 1.0 X 40MM

NISSAN G35 (V36 - 2007.5/2008): M18 X 1.0 X 45MM

NISSAN 370/G37: M18 X 1.0 X 45MM

CORVETTE C5/C6: M18 X 1.5 X 30MM

CORVETTE C6 PRO: M18 X 1.5 X 60MM

MUSTANG S197: M16 X 1.5 X 40MM

Add On:

• 2 inner tie-rod heim joints with jam nuts

Note: Orders require 2–3 weeks for fabrication before shipping.
