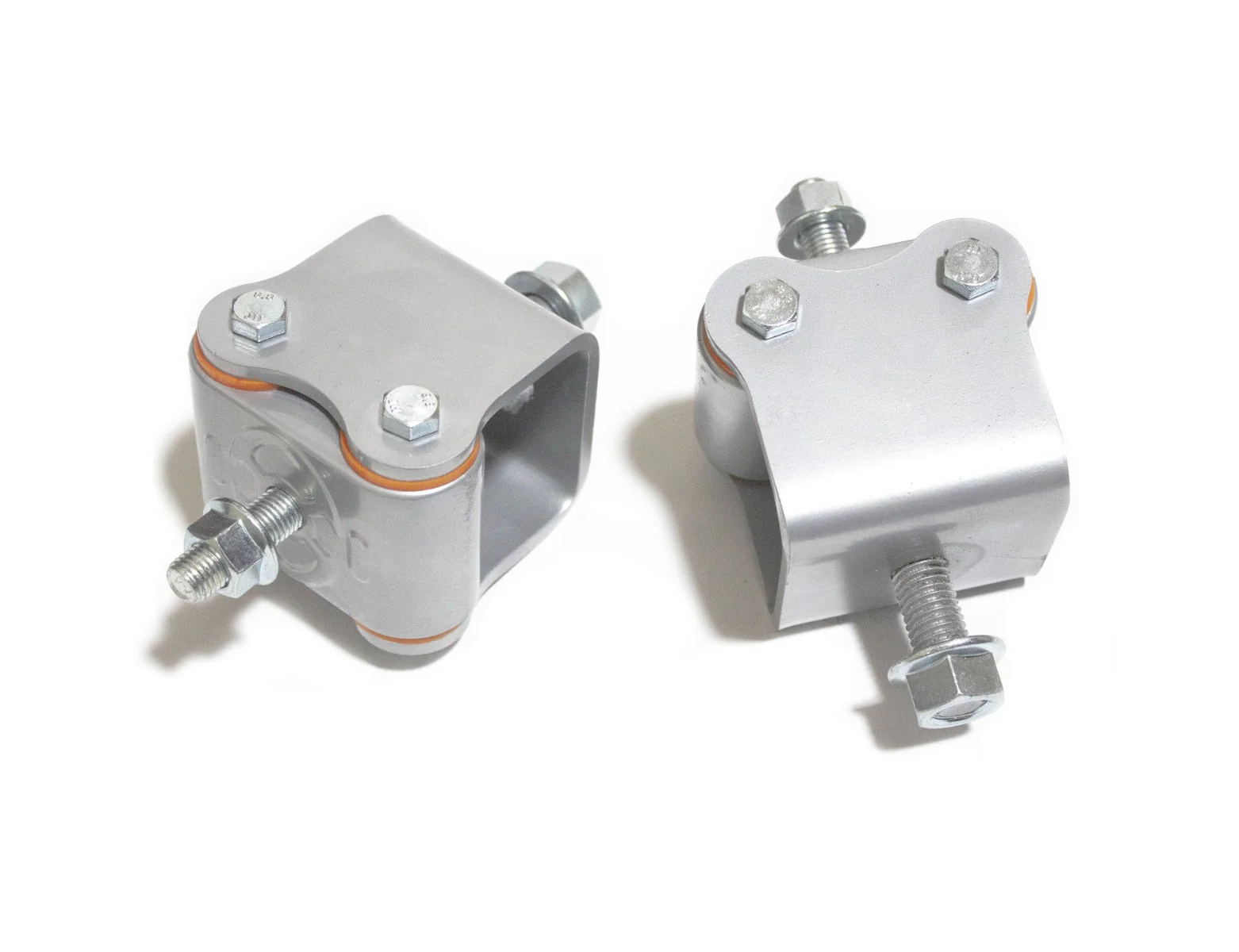

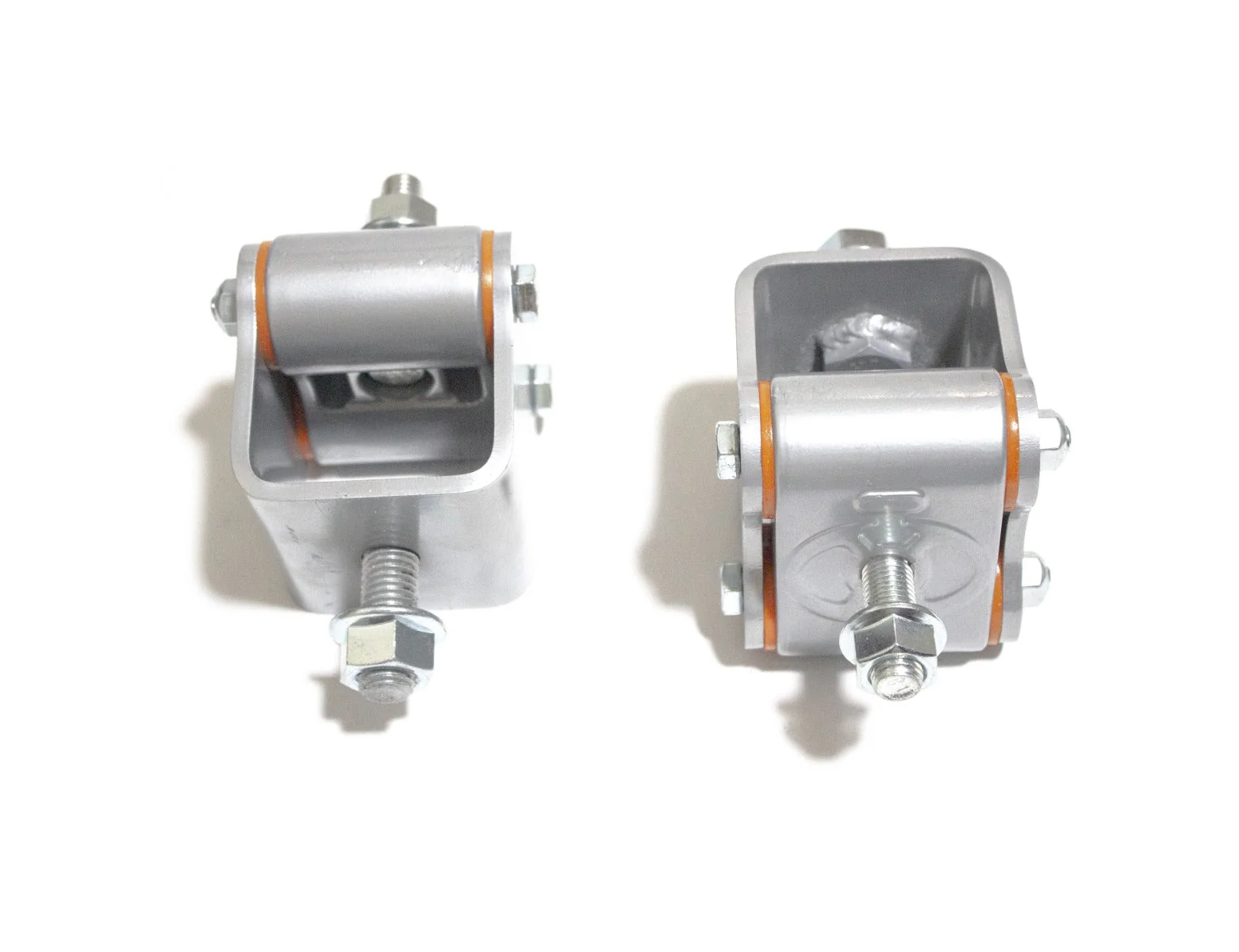

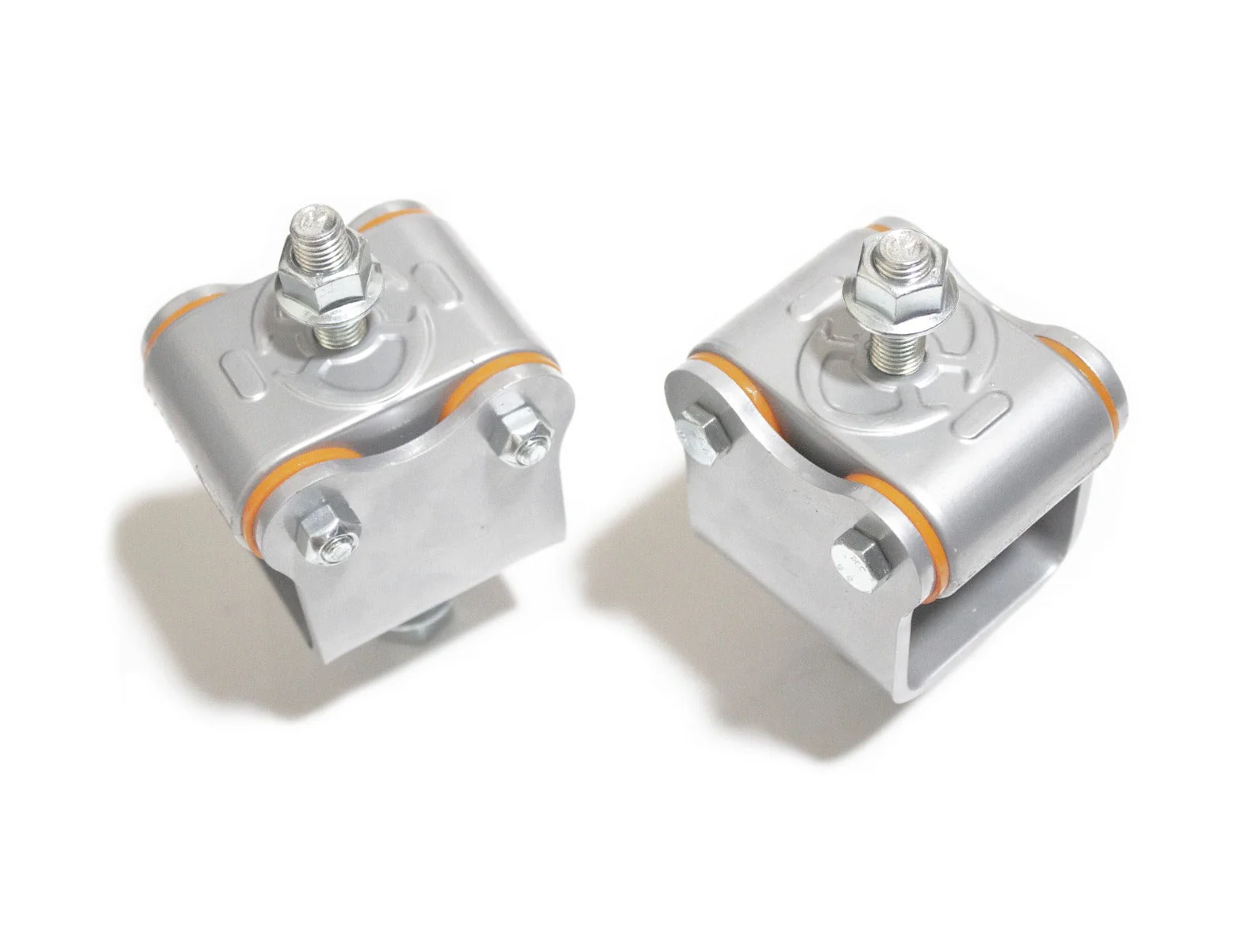

Urethane Motor Mount -- Series 16

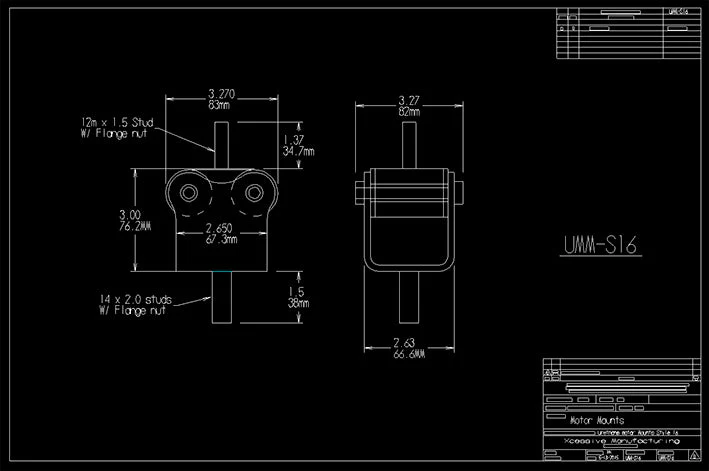

Series 16, 3.0" Tall with a 14mm stud on bottom and a 12mmĀ stud on top.
Ā These mounts are designed as a direct fit replacement for the Lexus SC300 and SC400 (with JZ swap, does not fit 1UZ). We've designed these mounts to be a direct replacement for those soft, worn out or broken rubber mounts. We set them up standard with stiffer 80A (Orange) Urethane bushings that seem to work well with mostĀ applications but also offer 65A (Yellow) softer bushings.
Ā Ā These are a performance mount, so expect an increase in "engine noise" transmitted to the chassis.
Ā Ā These mounts do not fit with the 1UZ-FE, they do fit the SC400 chassis with a JZ swap. 1UZ-FE motor mount brackets are a different angle and therefore the rubber mounts are also at a different angle. 1UZE-FE Insulators (rubber mounts) do not swap over to JZ motors.Ā
Ā
Features:
Sold as a pair with 80A bushings.
Stock fitment on theĀ SC300 and SC400 (With JZ, does not fit 1UZ)
Significantly less movement of the engine
Full floating omni-directional dampening unlike "puck" type mounts with a single through bolt. The bolt causes full metal contact from top to bottom.
Optional 65A (Yellow) bushings available by request
Easy replacement bushings
All new components
