Want to do that manual transmission swap in your XJ? We've got the clutch you need to fit into the stock Jaguar XJ cast aluminum pedal box.

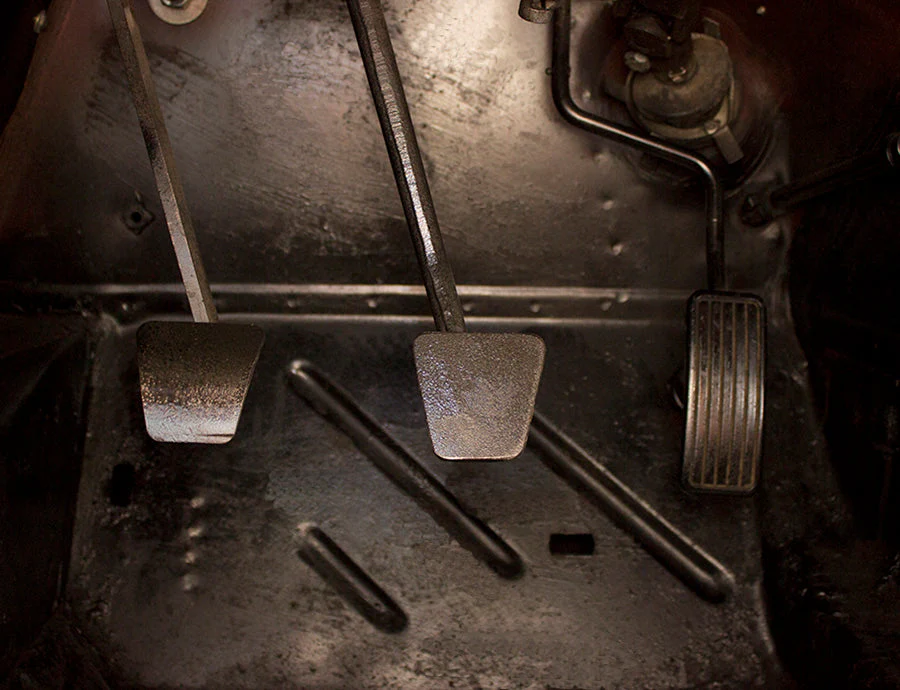

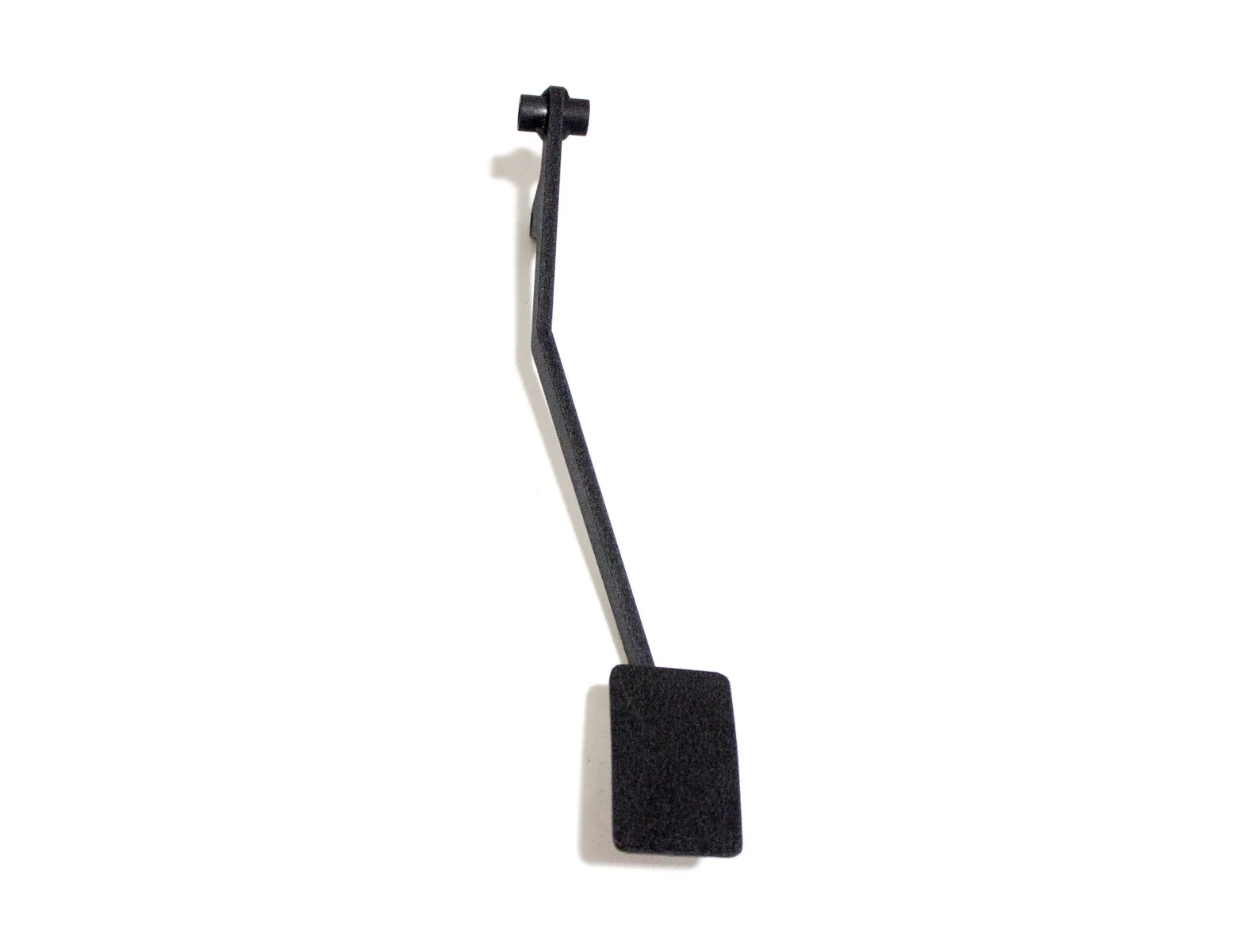

The new pedal arm is laser cut from 1/4" steel plate, then formed and given a wide pivot point on top and then given a nice foot pad welded to the bottom. The all steel construction is durable and easy to install.

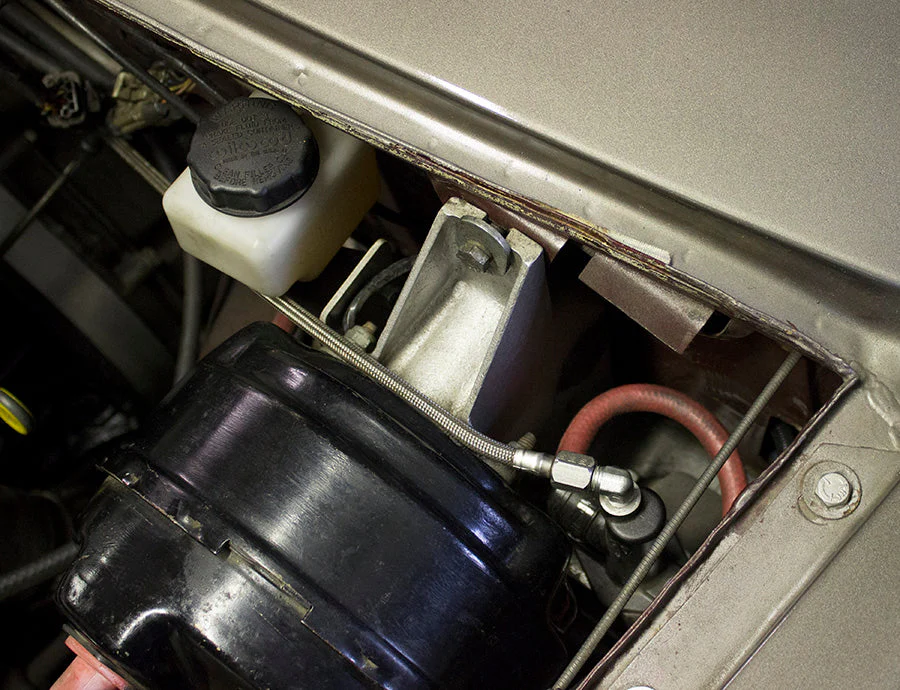

The installation requires drilling 4 holes, threading 2 and some minor trimming of sheet metal to drop it all in the chassis. We've supplied all the bolting hardware required, you just need to supply a remote mount reservoir clutch master as the unit will be standing straight up.

We also sell the pedal in a complete kit with master. J-XJ-CP-K

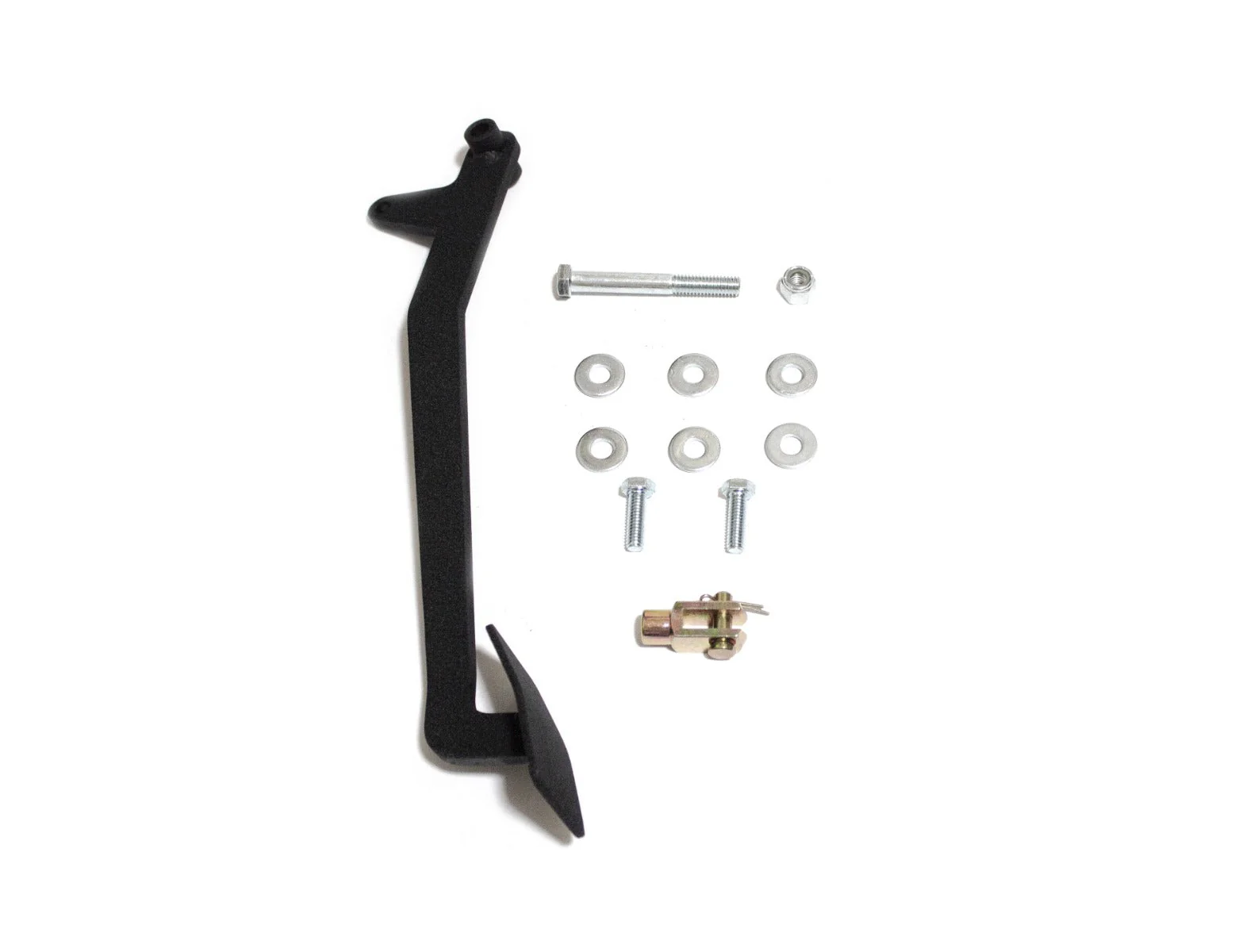

Kit includes:

New pedal arm

Arm pivot bolt and nut

Master cylinder bolts and shim washers

Clevis end for master cylinder to pedal hook up
