XJ Clutch Pedal Kit
If you want a completeĀ clutch pedal conversion for your Jaguar, this is what you need to get it all to fitĀ with the stock Jaguar XJ cast aluminum pedal box.

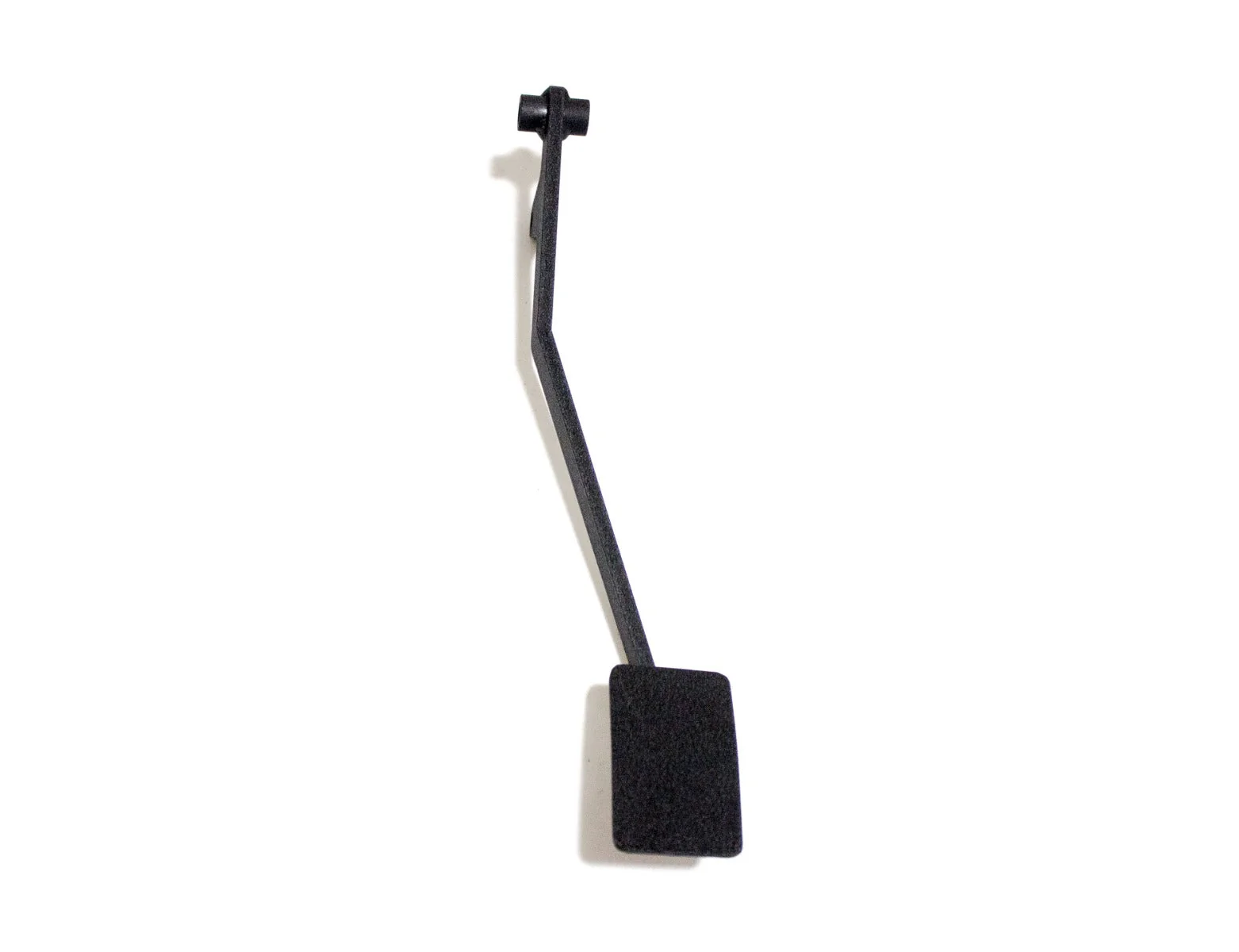

The new pedal arm is laser cut from 1/4" steel plate, then formed and given a wide pivot point on top and a foot pad welded to the bottom. The all steel construction is durable and easy to install.

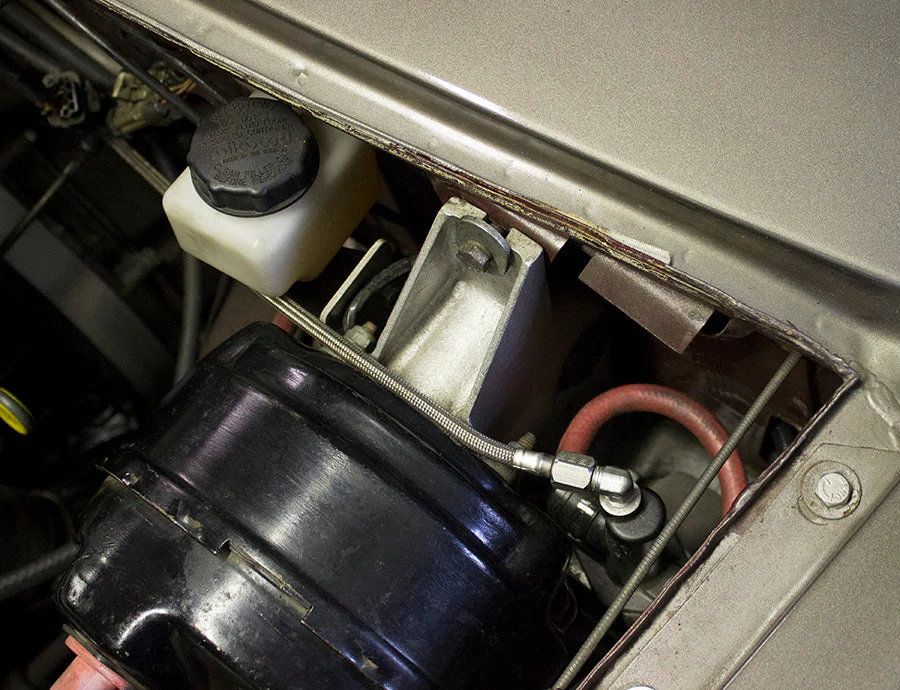

The installation requires drilling 4 holes, threading 2 and some minor trimming of sheet metal to drop it all in the chassis. We've supplied all the bolting hardware required, you just need to supply a remote mount reservoir clutch master as the unit will be standing straight up.
We also have clutch line kits suitable for many transmission swaps. A commonly used line with this kit would be a UI-HLK-S1, 53" line.
Ā

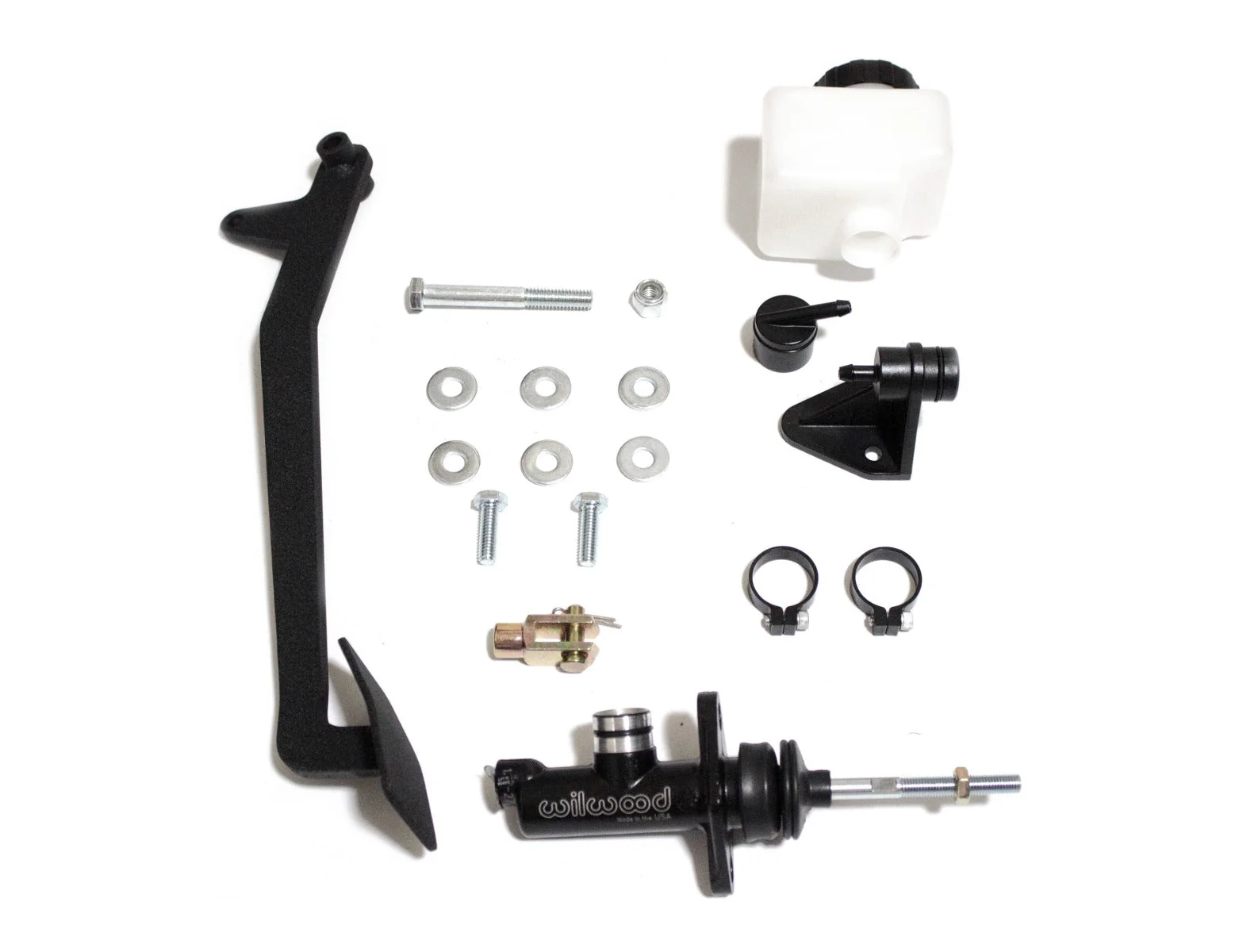

Kit includes:
New pedal arm
Arm pivot bolt and nut
Master cylinder bolts and shim washers
Clevis end for master cylinder to pedal
3/4" Bore remote mount Wilwood master cylinder
Remote Reservoir and all required hardware
